140lm LED Outdoor Flood Lights

Features
1. Elegant and concise appearance;
2. Superb heat management. The one piece formed ADC12 die casting aluminum provides a better thermal conductivity;
3. Various installation accessories;
4. Competitive price and high performance provide possibility to achieve high yield ROI while fast delivery time fulfils the urgent needs for budget projects with short time notice;
5. .ies/.ldt files are available.

Send Inquiry

Product Introduction

Features
1. Elegant and concise appearance;
2. Superb heat management. The one piece formed ADC12 die casting aluminum provides a better thermal conductivity;
3. Various installation accessories;
4. Competitive price and high performance provide possibility to achieve high yield ROI while fast delivery time fulfils the urgent needs for budget projects with short time notice;
5. .ies/.ldt files are available.

General Information

LED Type	LumiLeds/ Chinese brand
Light Efficacy	115lm/W, 120lm/W,125lm/W,130lm/W, 135lm/W,140lm/W
CCT	4000K/5000K/5700K
CRI	70/80
LED Lifespan	Slate Basic: 123,000h@L70B50; 77,000h@L80B50; 37,000h@L90B50
LED Lifespan	Slate Plus: 153,000h@L70B50; 96,000h@L80B50; 46,000h@L90B50
Power Supply	-
Type of Driver	Lifud/ TUV CE listed Brand Driver
Driver efficiency	Non-isolated driver 93%
Protection class IEC	Class I
Warrany	Basic: 3 Years Warrany
Warrany	Plus: 5 Years Warrany
Certificate	CE, RoHS, ErP
Operating Temperature	-30℃ to +50℃
Ingress protection code	IP66
Mech. impact protection code	IK08
Surge protection	4KV
Operating and Electrical
Input voltage	100-277Vac
Input Frequency	50/60Hz
Inrush current	-
Power Facto	≥0.9
THD	≤10%
Mechanical and Housing
Structure Material	ADC12
Finish Material	Powder coated
Lens Material	Tempered glass only/PC Lens+Tempered glass
Glass Material	-
Fixture Color	RAL9006
Mouting Option	Ground /Wall Mounted
Controls and Dimming
Dimmable	DALI Dimmable /0-10V dimmable
Intelligent Control	-

	Model Number	Power Consumption (±10%)	Input voltage	CRI	Light Efficiency	Luminous Flux (lm) (±10%） @4000K @5000K @5700K	Beam Angle	Correlated Color Temperaure	LED Type	Drvier Type
Slate Plus	WMD-FL30-110N-HP3	30W	100-277VAC	70	140lm/W	4200lm 4200lm 4200lm	110deg	4000K 5000k 5700K	Lumileds3030	TUVCE listed Brand Driver
	WMD-FL50-110N-HP3	50W				7000lm 7000lm 7000lm				TUVCE listed Brand Driver
	WMD-FL80-110N-HP3	80W				11200lm 11200lm 11200lm				Lifud
	WMD-FL100-110N-HP3	100W				14000lm 14000lm 14000lm
	WMD-FL150-110N-HP3	150W				21000lm 21000lm 21000lm
	WMD-FL200-110N-HP3	200W				28000lm 28000lm 28000lm
	WMD-FL240-110N-HP3	240W				33600lm 33600lm 33600lm

	Model Number	Power Consumption (±10%)	Input voltage	CRI	Light Efficiency	Luminous Flux (lm) (±10%） @4000K @5000K @5700K	Beam Angle	Correlated Color Temperaure	LED Type	Drvier Type
Slate Plus	WMD-FL30-XXXN-HP3	30W	100-277VAC	70	135lm/W	4050lm 4050lm 4050lm	30deg 60deg 90deg	4000K 5000k 5700K	Lumileds3030	TUVCE listed Brand Driver
	WMD-FL50-XXXN-HP3	50W				6750lm 6750lm 6750lm				TUVCE listed Brand Driver
	WMD-FL80-XXXN-HP3	80W				10800lm 10800lm 10800lm				Lifud
	WMD-FL100-XXXN-HP3	100W				13500lm 13500lm 13500lm
	WMD-FL150-XXXN-HP3	150W				20250lm 20250lm 20250lm
	WMD-FL200-XXXN-HP3	200W				27000lm 27000lm 27000lm
	WMD-FL240-XXXN-HP3	240W				32400lm 32400lm 32400lm

	Model Number	Power Consumption (±10%)	Input voltage	CRI	Light Efficiency	Luminous Flux (lm) (±10%） @4000K @5000K @5700K	Beam Angle	Correlated Color Temperaure	LED Type	Drvier Type
Slate Plus	WMD-FL30-XXXN-HP3	30W	100-277VAC	70	125lm/W	3750lm 3750lm 3750lm	80*150deg	4000K 5000k 5700K	Lumileds3030	TUVCE listed Brand Driver
	WMD-FL50-XXXN-HP3	50W				6250lm 6250lm 6250lm				TUVCE listed Brand Driver
	WMD-FL80-XXXN-HP3	80W				10000lm 10000lm 10000lm				Lifud
	WMD-FL100-XXXN-HP3	100W				12500lm 12500lm 12500lm
	WMD-FL150-XXXN-HP3	150W				18750lm 18750lm 18750lm
	WMD-FL200-XXXN-HP3	200W				25000lm 25000lm 25000lm
	WMD-FL240-XXXN-HP3	240W				30000lm 30000lm 30000lm

	Model Number	Power Consumption (±10%)	Input voltage	CRI	Light Efficiency	Luminous Flux (lm) (±10%） @4000K @5000K @5700K	Beam Angle	Correlated Color Temperaure	LED Type	Drvier Type
Slate Plus	WMD-FL30-XXXN-HP3	30W	100-277VAC	70	120lm/W	3600lm 3600lm 3600lm	110*50deg	4000K 5000k 5700K	Lumileds3030	TUVCE listed Brand Driver
	WMD-FL50-XXXN-HP3	50W				6000lm 6000lm 6000lm				TUVCE listed Brand Driver
	WMD-FL80-XXXN-HP3	80W				9600lm 9600lm 9600lm				Lifud
	WMD-FL100-XXXN-HP3	100W				12000lm 12000lm 12000lm
	WMD-FL150-XXXN-HP3	150W				18000lm 18000lm 18000lm
	WMD-FL200-XXXN-HP3	200W				24000lm 24000lm 24000lm
	WMD-FL240-XXXN-HP3	240W				28800lm 28800lm 28800lm
	Model Number	Power Consumption (±10%)	Input voltage	CRI	Light Efficiency	Luminous Flux (lm) (±10%） @4000K @5000K @5700K	Beam Angle	Correlated Color Temperaure	LED Type	Drvier Type
Slate Plus	WMD-FL30-110N-HB3	30W	100-277VAC	80	130lm/W	3900lm 3900lm 3900lm	110deg	4000K 5000k 5700K	Chinese brand	TUVCE listed Brand Driver
	WMD-FL50-110N-HB3	50W				6500lm 6500lm 6500lm				TUVCE listed Brand Driver
	WMD-FL80-110N-HB3	80W				10400lm 10400lm 10400lm				Lifud
	WMD-FL100-110N-HB3	100W				13000lm 13000lm 13000lm
	WMD-FL150-110N-HB3	150W				19500lm 19500lm 19500lm
	WMD-FL200-110N-HB3	200W				26000lm 26000lm 26000lm
	WMD-FL240-110N-HB3	240W				31200lm 31200lm 31200lm
	Model Number	Power Consumption (±10%)	Input voltage	CRI	Light Efficiency	Luminous Flux (lm) (±10%） @4000K @5000K @5700K	Beam Angle	Correlated Color Temperaure	LED Type	Drvier Type
Slate Plus	WMD-FL30-XXXN-HB3	30W	100-277VAC	80	125lm/W	3750lm 3750lm 3750lm	30deg 60deg 90deg	4000K 5000k 5700K	Chinese brand	TUVCE listed Brand Driver
	WMD-FL50-XXXN-HB3	50W				6250lm 6250lm 6250lm				TUVCE listed Brand Driver
	WMD-FL80-XXXN-HB3	80W				10000lm 10000lm 10000lm				Lifud
	WMD-FL100-XXXN-HB3	100W				12500lm 12500lm 12500lm
	WMD-FL150-XXXN-HB3	150W				18750lm 18750lm 18750lm
	WMD-FL200-XXXN-HB3	200W				25000lm 25000lm 25000lm
	WMD-FL240-XXXN-HB3	240W				30000lm 30000lm 30000lm

	Model Number	Power Consumption (±10%)	Input voltage	CRI	Light Efficiency	Luminous Flux (lm) (±10%） @4000K @5000K @5700K	Beam Angle	Correlated Color Temperaure	LED Type	Drvier Type
Slate Plus	WMD-FL30-XXXN-HB3	30W	100-277VAC	80	115lm/W	3450lm 3450lm 3450lm	80*150deg	4000K 5000k 5700K	Chinese brand	TUVCE listed Brand Driver
	WMD-FL50-XXXN-HB3	50W				5750lm 5750lm 5750lm				TUVCE listed Brand Driver
	WMD-FL80-XXXN-HB3	80W				9200lm 9200lm 9200lm				Lifud
	WMD-FL100-XXXN-HB3	100W				11500lm 11500lm 11500lm
	WMD-FL150-XXXN-HB3	150W				17250lm 17250lm 17250lm
	WMD-FL200-XXXN-HB3	200W				23000lm 23000lm 23000lm
	WMD-FL240-XXXN-HB3	240W				27600lm 27600lm 27600lm

Applications
Residential areas Buildings Courtyards Billboards

Drawing

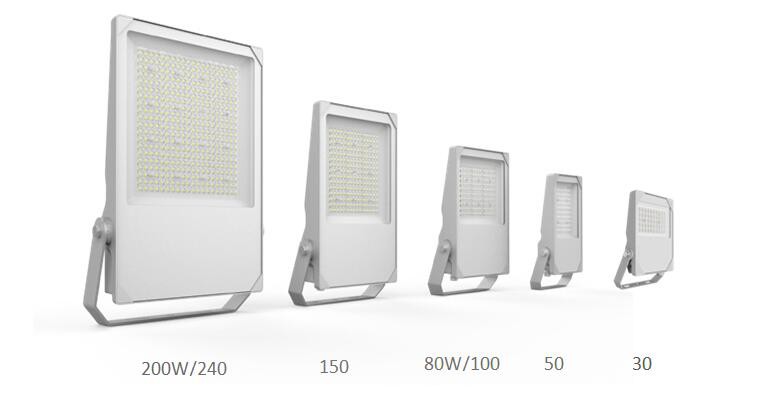

30W 50W 80W/100W

150W 200W/240W

Package

Item.	Luminaire Net Weight	Packing Info	Dimmension (inner box) (mm)	Dimmension (outer carton) (mm)	GW (Outer carton)	20ft GP	40ft GP	40 HQ
30w	0.75kg	1pc per inner box, 8 inner box per outer carton	L211W171H38	L332W183H230	6.7kg	14688pcs	40320pcs	33600pcs
50w	1.4kg	1pc per inner box, 8 inner box per outer carton	L235W95H315	L485W330H410	13.5kg	2720pcs	5760pcs	6912pcs
80w	2.5kg	1pc per inner box, 6 inner box per outer carton	L310W100H350	L645W365H330	18kg	1728pcs	3456pcs	4032pcs
100w	2.5kg	1pc per inner box, 6 inner box per outer carton	L310W100H350	L645W365H330	18kg	1728pcs	3456pcs	4032pcs
150w	3.5kg	1pc per inner box, 4 inner box per outer carton	L425W330H110	L500W440H350	16.5kg	1320pcs	2760pcs	3220pcs
200w	5.0kg	1pc per inner box, 2 inner box per outer carton	L500W395H115	L515W405H260	12kg	800pcs	1760pcs	1980pcs
240w	5.2kg	1pc per inner box, 2 inner box per outer carton	L500W395H115	L515W405H260	12.4kg	800pcs	1760pcs	1980pcs

Erp Requirement

Instant Full SDCM Starting Time Switching Cycles Life Time L70B50: 153000h Lumen Maintenance
Light Dimmable <5 <0.5s 25,000times 50,000h L80B50: 96000h 97% L90B50: 46000h

Horizontal Light Distribution Test

Intelligent Life Tester

Strobe Test

Integrating Sphere Spectrometer

3600h Life Time Test

Accessories

Why choose us?

We have a team of experts working to ensure that our Flood Light products meet the highest standards in terms of quality and performance.
The company follows the direction of 140lm Led Outdoor Flood Lights industry development and constantly meets the market needs to adjust the product structure in time.
Our Flood Light products are competitively priced, making them a great value for our customers.
Our company relies on the abundant science and technology research and development strength, consummates the rigorous quality assurance system and the exquisite complete production inspection equipment, unceasingly advances and develops forward.
Our Flood Light products are manufactured with sustainability in mind, reducing the environmental impact of our operations.
Our goal is to provide customers with the best products and services and build the company into the best 140lm Led Outdoor Flood Lights manufacturing company.
Our Flood Light products are manufactured to meet the highest safety standards and regulations.
People are the first resource of the enterprise and the power source of the development of the enterprise. Enterprise development relies on people and does everything for people.
Our focus on quality and customer satisfaction has helped us become one of the most trusted suppliers of Flood Light products in the industry.
We will repay our new and old customers with better quality products and warm and thoughtful service, and your demand is our direction.

Introduction:

Welcome to our amazing product - the 140lm Led Outdoor Flood Lights. We are a manufacturing company located in China that specializes in presenting the best products to our customers. Our product is the perfect solution if you are looking for an efficient and cost-effective way to light up outdoor spaces. The product is built with the latest technological advancements and meet the highest standards in the industry.

Features:

Our 140lm Led Outdoor Flood Lights product is designed to be a perfect solution for outdoor lighting requirements. Our product is packed with features that make it stand out in a crowded market. Some of the key features include:

1. High luminance: The product features an amazing 140 lumens/watt output that ensures bright and clear illumination of outdoor spaces.

2. Energy Efficiency: The Led technology used in the product is highly energy-efficient, consuming only 20 to 50 watts of power. This feature ensures that using our product will not burn a hole in your pocket.

3. Longevity: The product is designed to last long. Our product has an operational life of more than 50,000 hours, ensuring that you wouldn't have to frequently replace it.

4. Compact Design: The product is compact and lightweight, ensuring easy installation and maintenance.

5. Waterproof and Dustproof: Our product is rated IP65, ensuring that the lights remain functional in damp and dusty conditions.

Advantages:

Our 140lm Led Outdoor Flood Light has numerous advantages over other products in the market. These advantages make our product an irresistible option for customers seeking superior lighting solutions:

1. Low Power Consumption and High Efficiency: Our product offers high efficiency and consumes less power than traditional lighting solutions. By using our product, you will be able to save on your utility bills without compromising on the quality of lighting.

2. Long Operational Life: Our product is designed to last long. With a life span of more than 50,000 hours, you can rest assured it will last you for years.

3. Eco-friendly: Our product is environmentally friendly with no toxic materials and emits no harmful UV rays.

4. Multi-purpose: Our product can be used in a wide range of outdoor spaces, including street lighting, parking lots, billboards, and sports fields.

5. Highly Durable: Our product is designed to withstand harsh outdoor conditions like rain, dust, and high temperatures, ensuring maximum durability.

Conclusion:

In conclusion, our 140lm Led Outdoor Flood Lights is a fantastic product that delivers on its promise. It is energy-efficient, long-lasting, environmentally friendly, and highly durable. Our product is an ideal solution for any outdoor lighting requirements, whether for residential or commercial settings. We assure you that by choosing our product, you would be making a sound investment in your outdoor lighting needs. We encourage you to try our product, and we guarantee you won't be disappointed.
