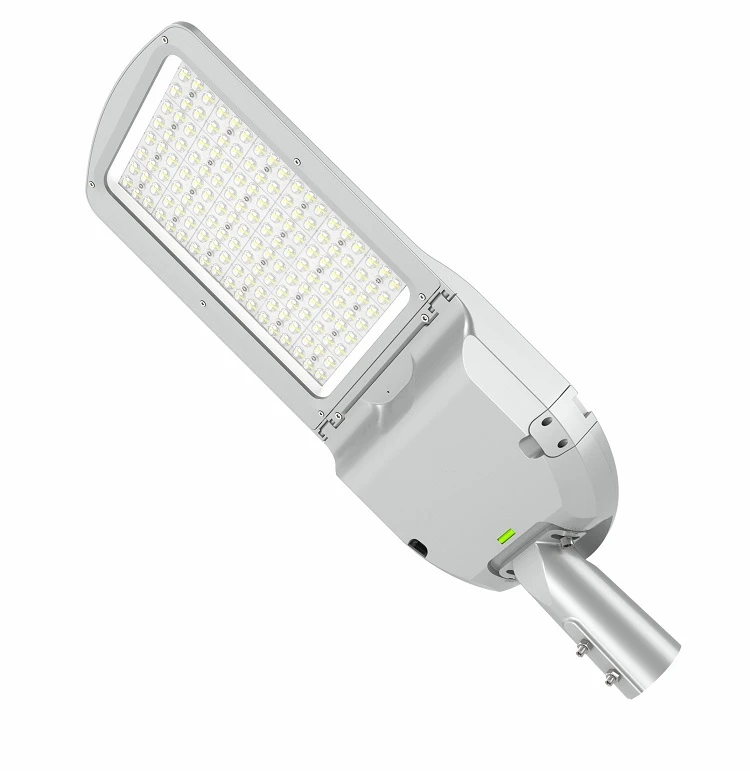

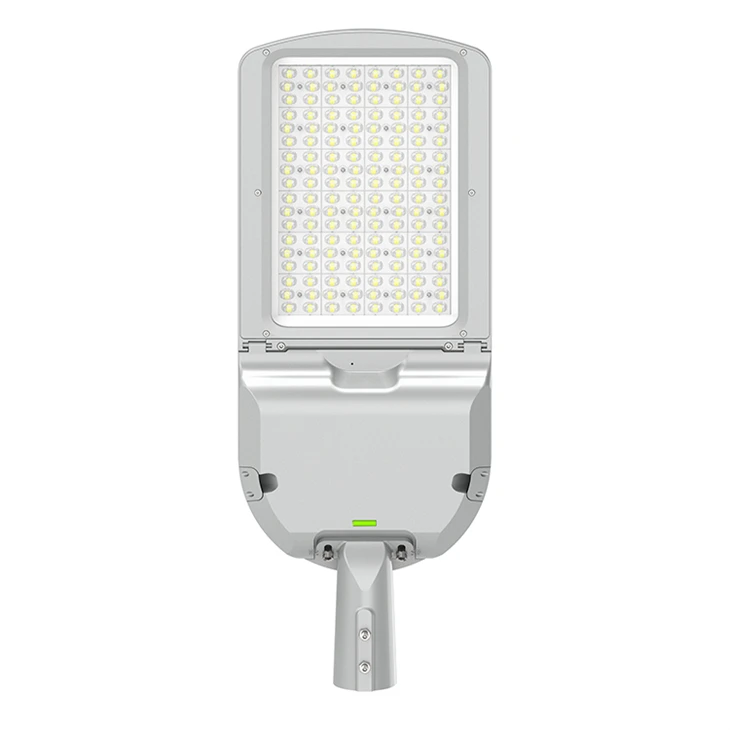

Street Light 300 Watt
1. Designed from the ground up as a totally optimized LED street and area lighting system, our street light delivers incredible efficiency without sacrificing application performance;
2. Ressonable layout of radiator fins through the heat simulation, superb heat dissipation to ensure long life span;
3. Different lighting distribution curve for options, suitable for different roads; (Type I II III IV V)
4. Adapt to Pole:Ø60mm(400mm-50mm pole is optional);
5. Breather inside,Keep the air pressure balanced;
6. Using Akzonobel brand powder, Excellent surface treatment performance, allows the street light qualified to pass the 500hours salt spay test;(1000hours can be customized)
7. 3G Vibration Test Approved;
8. Suitable for old city renovation projets.
- Product Introduction
Features
1. Designed from the ground up as a totally optimized LED street and area lighting system, our street light delivers incredible efficiency without sacrificing application performance;
2. Ressonable layout of radiator fins through the heat simulation, superb heat dissipation to ensure long life span;
3. Different lighting distribution curve for options,suitable for different roads; (Type I II III IV V)
4. Adapt to Pole:Ø60mm(400mm-50mm pole is optional);
5. Breather inside,Keep the air pressure balanced;
6. Using Akzonobel brand powder, Excellent surface treatment performance, allows the street light qualified to pass the 500hours salt spay test;(1000hours can be customized)
7. 3G Vibration Test Approved;
8. Suitable for old city renovation projets.
General Information
|
LED Type |
Lumileds 3030 |
|
Light Efficacy |
150lm/W |
|
CCT |
2700-6500K |
|
CRI |
70 |
|
LED Lifespan |
153,000h@L70B10 |
|
96,000h@L80B10 |
|
|
46,000h@L90B10 |
|
|
Power Supply |
Sosen/DONE(optional) |
|
Type of Driver |
- |
|
Driver efficiency |
>90% |
|
Protection class IEC |
Class I |
|
Warrany |
5 Years |
|
Certificate |
CE, RoHS, CB, ENEC, ErP |
Application Conditions
Operating Temperature:-30℃~ + 50℃
Approval and Application
|
Ingress protection code |
IP66 |
|
Mech. impact protection code |
IK08(IK09/IK10 can be customized) |
|
Surge protection |
20W-40W: 6+6KV Surge Protection(Sosen) |
|
60W-300W: 6+10KV Surge Protection(Sosen) |
|
|
6+15KV Surge Protection(DONE) |
Operating and Electrical
|
Input Frequency |
120-277Vac |
|
Input Frequency |
50/60Hz |
|
Inrush current |
- |
|
Power Factor |
>0.95 |
|
THD |
<15 |
Controls and Dimming
Dimmable:Yes

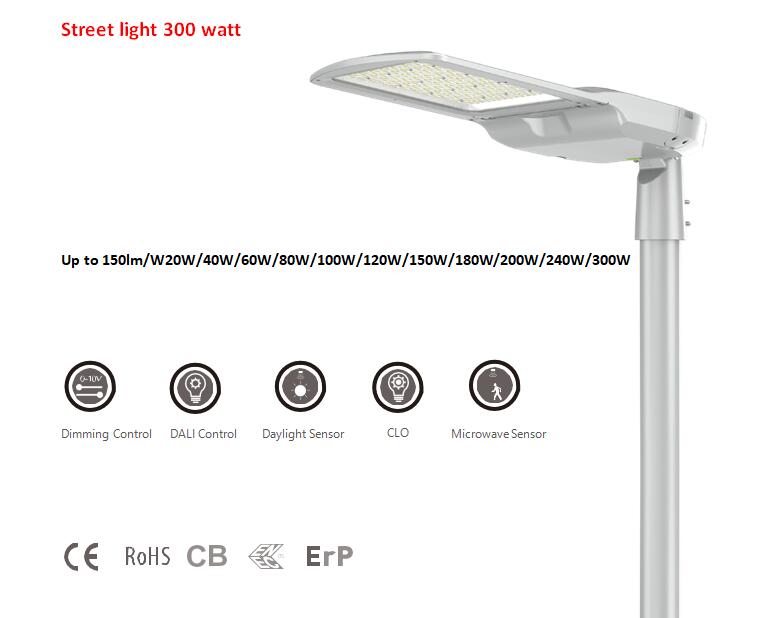

Intelligent Control:1-10V Dimming/DALI/Daylight Sensor/Microwave Sensor
Mechanical and Housing
|
Structure Material |
Die-cast Aluminum |
|
Finish Material |
Powder coated |
|
Lens Material |
(PC)Polycarbonate |
|
Glass Material |
- |
|
Fixture Color |
Grey |
|
Mouting Option |
Horizontal Installation/ Vertical Installation |
Product Parameter
|
Model Number |
Power Consumption (±10%) |
Input voltage |
CRI |
Light Efficiency |
Luminous Flux (lm) (±10%)@3000K @4000K @5700K |
Beam Angle |
Correlated Color Temperaure |
LED Type |
Driver Type |
|
FK-SX20-T2J-HE |
20W |
120-277Vac |
70 |
150lm/W |
2800lm 3000lm 3000lm |
TYPE2：A29N TYPE3：A40N TYPE4：A41N |
3000K 4000K 5700K |
Lumileds 3030 |
Sosen/ DONE (optional) |
|
FK-SX40-T2J-HE |
40W |
5600lm 6000lm 6000lm |
|||||||
|
FK-SX60-T2J-HE |
60W |
8400lm 9000lm 9000lm |
|||||||
|
FK-SX80-T2J-HE |
80W |
11200lm 12000lm 12000lm |
|||||||
|
FK-SX100-T2J-HE |
100W |
14000lm 15000lm 15000lm |
|||||||
|
FK-SX120-T2J-HE |
120W |
16800lm 18000lm 18000lm |
|||||||
|
FK-SX150-T2J-HE |
150W |
21000lm 22500lm 22500lm |
|||||||
|
FK-SX180-T2J-HE |
180W |
25200lm 27000lm 27000lm |
|||||||
|
FK-SX200-T2J-HE |
200W |
28000lm 30000lm 30000lm |
|||||||
|
FK-SX240-T2J-HE |
240W |
33600lm 36000lm 36000lm |
|||||||
|
FK-SX300-T2J-HE |
300W |
42000lm 45000lm 45000lm |
Applications
Residential,Township road,Side road,Back road,Desert area
Drawing
20W/40W/60W
80W/100W/120W
150W/180W
200W/240W
300W
Package
|
Item. |
Luminaire Net Weight |
Packing Info |
Dimmension (inner box) (mm |
Dimmension (outer carton) (mm) |
GW (Outer carton) |
20ft GP |
40ft GP |
40 HQ |
|
20W |
3.514 Kg |
1pcs/carton |
/ |
L623*W255*H150 |
4.11kg |
1302 PCS |
2679 PCS |
3051 PCS |
|
40W |
3.514 Kg |
/ |
||||||
|
60W |
3.514 Kg |
/ |
||||||
|
80W |
4.08 Kg |
/ |
L623*W255*H150 |
4.88kg |
1065 PCS |
2190 PCS |
2480 PCS |
|
|
100W |
4.15 Kg |
/ |
4.95kg |
|||||
|
120W |
4.40 Kg |
/ |
5.20kg |
|||||
|
150W |
5.1kg |
/ |
L736*W315*H150 |
6.10kg |
896 PCS |
1824 PCS |
2052 PCS |
|
|
180W |
5.2kg |
/ |
6.30kg |
|||||
|
200W |
5.5kg |
/ |
L747*W355*H150 |
6.65kg |
750 PCS |
1539 PCS |
1779 PCS |
|
|
240W |
5.6kg |
/ |
6.80kg |
|||||
|
300W |
7.2kg |
/ |
L846*W355*H150 |
8.73kg |
672 PCS |
1394 PCS |
1637 PCS |
Erp Requirement
Instant Full SDCM Starting Time Switching Cycles Life Time L70B10：153000h Lumen Maintenance
Light Dimmable <5 <0.5s 25,000times 50,000h L80B10：96000h 97%
L90B10：46000h

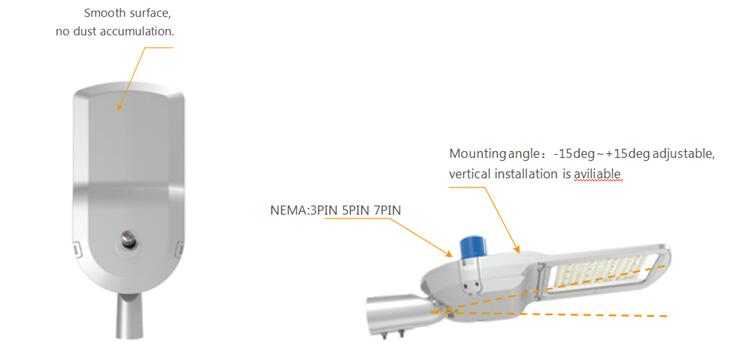

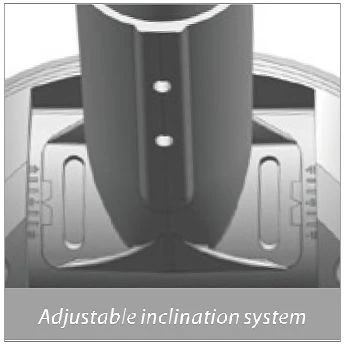

Mounting Options
Optional Accessories
Standard(Script Hook)
Applicable size: Ø42mm-Ø60mm
Customized

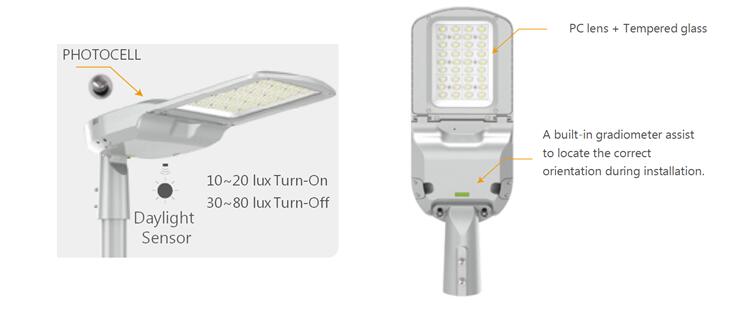

NEMA Photocell
NEMA Receptable (3Pin)
NEMA Receptable (5Pin)
Shorting Cap
Rated Voltage: 110-277V
Rated Loading: 1000W
Tungsten, 1800VA Ballast
Power Consumption: 1.5VA
On/Off Level: 6Lx On/50Lx Off
Related Humidity: 99%
Why choose us?
- We are a Chinese factory that manufactures high-quality street light products.
- To achieve our development goals, we pay high attention to corporate social responsibility and advocate responsible care while realizing our own economic interests.
- Our products are designed to minimize maintenance and reduce operating costs.
- We encourage employees and managers to create responsibility culture and establish performance management combined with responsibility performance.
- We offer customized solutions for every project, ensuring our clients receive products that are specifically tailored to their needs.
- We expect to cooperate with you to develop a larger market.
- Our products provide superior lighting performance, ensuring safety and security in any environment.
- Our company uses the open economic environment to carry out more international exchanges and cooperation, introduces advanced technology, and promotes its Street Light 300 Watt to the international market.
- We take great pride in providing customized solutions to meet our clients' unique needs.
- We will make a holistic analysis based on the needs provided by our customers, and we will effectively meet their needs.
Dear valued merchants,
We are excited to introduce our latest product, the Street Light 300 Watt. As a leading manufacturer in China, we take pride in our commitment to producing high-quality and innovative products that meet the needs of our customers. Designed to deliver exceptional performance, our Street Light 300 Watt offers a range of features and benefits that make it an ideal choice for any outdoor lighting application.
One of the most impressive features of our Street Light 300 Watt is its high level of brightness. With a maximum luminous flux of 39,000 lumens, this light is capable of illuminating large areas with ease. This is especially useful for lighting up streets, parking lots, warehouses, and other areas where high visibility is essential. Additionally, its 300-watt power output ensures that it remains highly energy-efficient despite its high level of brightness.
Another aspect that sets our Street Light 300 Watt apart is its superior durability. Constructed from high-quality materials, this light is designed to withstand harsh weather conditions and extreme temperatures. It is also resistant to water and dust, making it suitable for use in even the harshest environments. This makes it an ideal choice for outdoor lighting applications where durability and reliability are essential.
In addition to its durability and brightness, our Street Light 300 Watt also offers a range of convenient features that add to its versatility. It comes with a built-in dimmer that allows you to adjust the brightness according to your specific needs. This means that you can save energy when lighting up less frequented areas, while still maintaining adequate lighting levels.
Furthermore, our Street Light 300 Watt is also easy to install. Its compact and lightweight design allows for easy installation and maintenance, reducing the overall cost of ownership. It is also available in a range of mounting options, making it suitable for a variety of applications.
Finally, we take pride in our commitment to producing environmentally-friendly products. Our Street Light 300 Watt is designed to be highly energy-efficient, meaning that it consumes less energy than traditional lighting sources, reducing your carbon footprint. Additionally, it also features a long lifespan, reducing the amount of waste generated by frequent replacements.
In conclusion, if you are looking for a high-quality and innovative outdoor lighting solution that delivers superior performance and durability, look no further than our Street Light 300 Watt. With its unmatched brightness, durability, convenience, and energy efficiency, it is the perfect choice for any outdoor lighting application. Thank you for considering our product, and we look forward to serving you soon.
