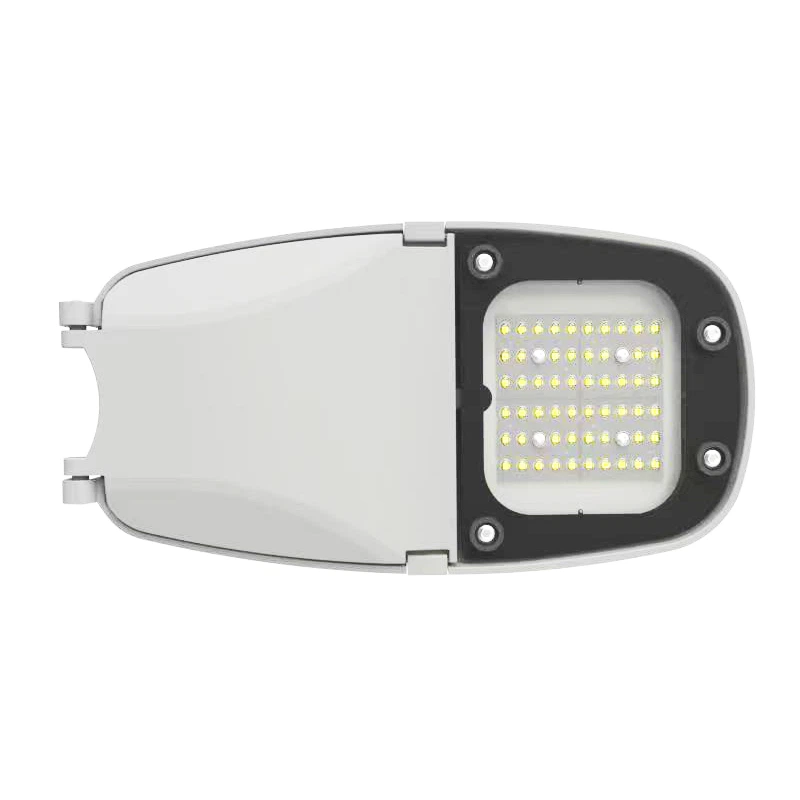

40W Sliding Back Street Light

As the most eye-catching new generation light source in the world, LED is known as the most promising green lighting source in the 21st century due to its advantages of high brightness, low heat, short life, non-toxic, recyclable and reused.

  • Product Introduction

20230228173825b8cdd03f6fef498a8063b652ac402e31



40W Street Light Background
As the most eye-catching new generation light source in the world, LED is known as the most promising green lighting source in the 21st century due to its advantages of high brightness, low heat, short life, non-toxic, recyclable and reused.
LED lamps are efficient and energy-saving lamps produced by using LED as light source combined with the knowledge of optics, heat, mechanics, electricity, aesthetics and other disciplines.High light efficiency, less power consumption, long life, high color index, easy to control, maintenance-free, safe and environmental protection, It is of great significance to city lighting energy saving.
Road lighting is closely related to people's production and life,With our country urbanization process to accelerate, LED street lights with directional light, low power consumption, good driving characteristics, fast response speed, high seismic ability, long service life, green environmental protection and other advantages gradually into people's vision、It has become a new generation of energy-saving light source with the advantage of replacing traditional light source in the world,Therefore, LED street lamps will become the best choice for energy-saving renovation of road lighting.



Characteristics

AC input voltage 100-277V,50/60Hz
Factor of power >0.95
THD % < 15%
Whole light effect 130lm/W、150lm/W、170lm/W
Lamp color temperature (CCT) 4000K、5000K、6500K
Luminance Indication (CRI) >70
External lightning protection level 10kV standard (20kV optional)
Control switch Time control, light control
Intelligent lighting communication signal PLC、NB、LORA
Height of installation 3m To 8m
Distance between lamps 15m To 40m
Operating temperature -40C~+50°C
Storage temperature -40C~+50°C
LED Brand Philips, Tiandian
LED light fading L70 > 100000hrs
Area of projection 0.023m3
IP waterproof class IP66
IK Anti-impact rating IK08
Class of luminaires Class I
Shell spray color 7040 Warm white
Light pole pipe diameter Φ25-Φ32 / Φ42-Φ48 / Φ52-Φ62
Size of appearance (mm) 397×205×76
Size of package (mm) 427×235×220 (2pcs/CTN)
Main materials ADC12 die cast aluminum + toughened glass
Standard of certification CQC、UL8800、UL1598、DLC、CE
Quality assurance 5 years (7 years optional)



Size




Light Distribution Curve

1



Model

Power(W)

Luminaire light flux (lm)

LED model

LED number

Height of installation

Maximum distance between

The net weight

Gross weight

PCS/CTN

WMDSL001A40

40

5200

3030

48pcs

4~8m

< 40m

2.3kg

5.2kg

2pcs



Installation Diagram


The replacement of LED light source and drive power should be operated by professionals or our staff




Warning - High pressure hazard, installation, must be professional installation
The light source, power supply, fittings, etc. contained in this lamp can only be replaced by the manufacturer



Optional Accessories


20KV surge arrester


Safety wire rope


Air convection valve

Optical switch-2

Light controlled switch


Zhaga baseZhaga





Why choose us?

  • Our highly-skilled team has years of experience in the street light industry, ensuring expert guidance and advice.
  • We views the industry market development rationally and objectively, and attaches importance to brand management and overall image promotion.
  • We offer flexible payment and shipping options to make purchasing our products as easy as possible.
  • We focus on the pursuit of the company's products continue to create new, unique, while fast and efficient to promote its realization.
  • We pride ourselves on being a reliable and trusted partner to our clients.
  • We have a high quality automated production line that can develop and produce exquisite 40W Sliding Back Street Light for promoting the common development of domestic and foreign industries.
  • Our prices are highly competitive, making us the go-to supplier for street light products.
  • We hope to continue to deepen the reform, improve the sales network and continue to expand the market.
  • As both a supplier and manufacturer, we offer exceptional services to our customers.
  • We adhere to the employment concept of "respect, cultivate, play, and develop", advocate individuality and innovation, and promote teamwork for the growth of talents.

Product Introduction:

Dear valued merchants,

We are excited to introduce our latest product, the 40W Sliding Back Street Light. This street light is designed for superior performance and durability, while also boasting a sleek and modern aesthetic that is sure to attract the attention of your customers.



At only 40, this street light is an incredible value for merchants who are looking for an affordable lighting solution without sacrificing performance. Here are some of the key features that make this product a must-have for your inventory:



1. High Efficiency LED Lights:

Our 40W Sliding Back Street Light is equipped with high-efficiency LED lights that provide superior illumination while using less energy than traditional streetlights. This helps to reduce energy costs and minimize environmental impact.



2. Durable Materials:

This street light is made with high-quality materials that are designed to withstand harsh weather conditions and resist corrosion. The sturdy construction ensures that this product will last for years, even in tough environments.



3. Sleek Design:

With its modern, sleek design, this street light is sure to attract attention and enhance the look of any outdoor space. The sliding back panel allows for easy access and maintenance, while the light itself is designed to blend seamlessly into any environment.



4. Easy Installation:

Our 40W Sliding Back Street Light is easy to install and requires minimal maintenance. This means that merchants can quickly and easily add this product to their inventory, without the need for additional resources or training.



5. Cost-Saving Solution:

Our street light is a cost-saving solution that provides merchants with an affordable lighting option that does not sacrifice quality or performance. By investing in our products, merchants can save money on their operating costs while also providing their customers with the best possible lighting solutions.



We invite you to consider adding our 40W Sliding Back Street Light to your inventory. With its advanced features and superior performance, this product is sure to meet the needs of your customers and provide a valuable addition to your business. Please contact us to learn more or place an order today. Thank you for your consideration.
