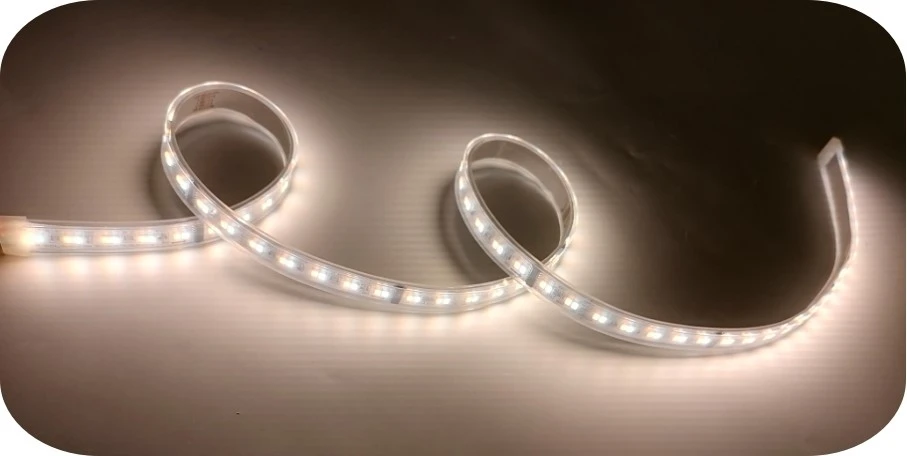

Indirect LED Strip Lighting



Model No	WMD-LS14040N018 DMX512 2-color LED flexible strip light
Voltage	DC24V
Led brand	SMD 2835：CREE,PHILIPS,Samsung,Osram, optional
Power/m	18W
Led/m	140pcs
Cut size	100 mm
Luminous flux	>2178lm
Optical effect	>121lm/W
CRI	Ra>90
Beam Angle	120°
Product process	bare board	Transparent Sleeve	glue filling
IP	IP20	IP65	IP68
PCB	12mm
Color	Optional two-color temperature: RGB + 4000K (± 200) ;2700K (± 150K) + 4000K (± 200)
Lamp body material	Silicone
Color tolerance	SDCM＜5
Product size	L5000*W14*H4mm(5M/reel)
Control Mode	DMX512
Gray scale	256
Differential parallel signal transmission	4096 Channel addressing (max)
Current gain Adjust	4bit (available software to change power)
Installation	3M back glue; snap / slot (Sleeve / glue)
Out-of-line mode	IP20: Five-core line: 5*0.3mm², L=150mm IP65 / IP68: two ends straight out of the five-core waterproof connector: 5*0.3mm², L=200mm
Packing	Reel in shield bag; 30 bags / box, outer box size: 520 * 230 * 240mm



Characteristics:

►Top bending,flat lighting,transparent silicone extrusion productive process;

►LM80 qualified,stronger holder of LED, 3oz copper PCB, even light without voltage drop;

►Visual cutting window, can be cut to length;

►Encased in a waterproof sheath optional;

►DMX512 pixel dual-color control system,so a variety of colors available;

►CE, all materials in accordance with RoHS standard.



FAQ:

Q: Can you do OEM and ODM?

A: Yes, OEM and ODM are both acceptable. OEM/ODM Service is a core part of our business, from research and development to final assembly and custom packaging,we can help you create products to meet your exact specification.



Applications:

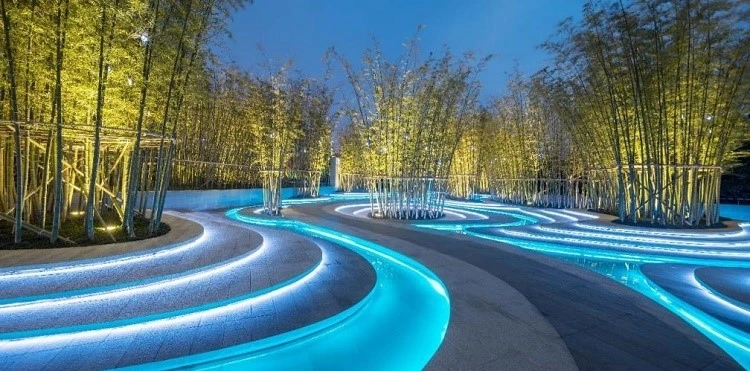

Architectural,Outdoor,Facade,pontoons,deck boats. Light a deck or under the gunwale areas.







Why choose us?

• We work closely with customers to ensure their Strip Light needs are met.
• Our excellent corporate culture provides a strong spiritual force to promote the company to become an international first-class Indirect Led Strip Lighting integrated service provider.
• Our Strip Lights are safe, reliable, and long-lasting.
• Enterprise development needs more comprehensive and professional talents, and old employees should also tolerate newcomers, seek self-improvement, form complementary with new employees, form a synergy and form a fighting force.
• Our Strip Lights are designed to be low maintenance and long-lasting.
• We always hold a 'magnifying glass' in work, and we are meticulous about each node, each process, and each place that needs to be inspected or paid attention to, ensuring our Indirect Led Strip Lighting maintaining in excellent quality.
• Our Strip Lights come in various sizes, shapes, and colors to suit your needs.
• We will also take 'quality for survival, integrity for development' as the core value of the enterprise, high-quality product quality and innovative design industry market, all from the interests of customers as the goal of struggle, so as to be trusted and unanimously recognized by the industry and customers.
• We are a one-stop-shop for all your Strip Light needs.
• We have always regarded scientific development as the guiding ideology of our work and have been committed to innovation.

for my product.

Introducing Indirect LED Strip Lighting

Indirect LED strip lighting is a cost-effective, versatile and energy-efficient solution for creating stunning lighting effects. It is a popular choice for creating an ambient atmosphere in residential, commercial and hospitality spaces. The strip lights are flexible and come in a wide range of colours and designs, making it easy to create a look that is tailored to your specific requirements.



At our manufacturing facility in China, we are dedicated to producing high-quality indirect LED strip lighting products that meet the needs of our customers. We aim to deliver products that are durable, reliable and easy to install, so that our merchants can pass on these benefits to their own customers.



Advantages of Indirect LED Strip Lighting

1. Energy Efficiency

Our indirect LED strip lighting products use energy-efficient technology that can help merchants save money on energy bills. The LED bulbs consume less power than traditional lighting sources while providing the same amount of light output.



2. Durability

Our indirect LED strip lighting products are designed to withstand wear and tear, including temperature changes, moisture and humidity. This makes it an ideal choice for installation in commercial or outdoor settings.



3. Versatility

Indirect LED strip lighting products come in a variety of designs, colours, and lengths, providing merchants with flexibility when designing lighting solutions for commercial and residential spaces. Our products are customizable to meet the specific requirements of our customers.



4. Easy Installation

Our indirect LED strip lighting products are easy to install with minimal technical expertise. They may be cut to size and bent into shapes to suit any design requirements. All required fittings and accessories for installation are sold separately.



Applications of Indirect LED Strip Lighting

Our indirect LED strip lighting products are widely used in a range of applications including:



1. Hospitality settings, such as restaurants and hotels



2. Residential lighting, including under-cabinet lighting in kitchens and living spaces



3. Outdoor garden lighting, including deck lighting and pathway lighting



4. Commercial and industrial lighting applications

Conclusion

At our manufacturing facility in China, we are committed to producing high-quality indirect LED strip lighting products that meet the needs of our customers. Our products come in a variety of colours and designs, making it easier for merchants to find the perfect lighting solution for their customers. We offer energy-efficient, durable, versatile and easy-to-install lighting products to help merchants make the most of their business. Contact us today to get started with our indirect LED strip lighting products.
