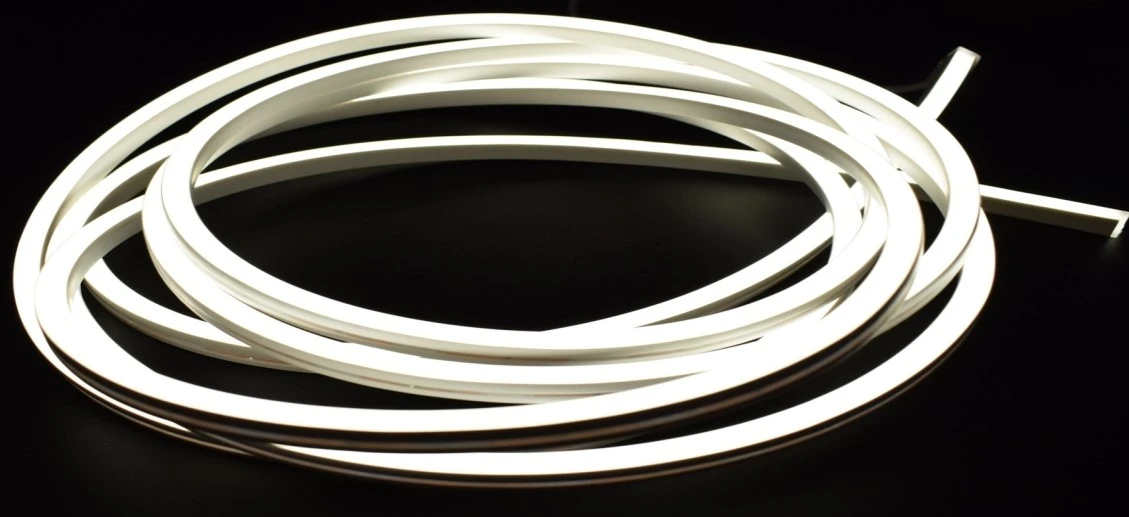

LED Strip Lights Bed
The strip lights are designed a wide temperature range tolerance (-40℃ to 80℃), and will not yellow or crack even after long-term outdoor use. The flexible silicone encapsulated LED light strips with safe low voltage 24V, Also customizable high voltage version as you required.
- Product Introduction
|
Model No |
WMD-LR07090CB010 LED Neon Lamp Strip (Side bending) |
|
Voltage |
DC24V |
|
Power |
6/10W(±10%) |
|
Led brand |
SMD3014：CREE,PHILIPS,Samsung,Osram optional |
|
Led/m |
168Leds/M |
|
Luminous flux |
>380lm(P=10W/M) |
|
Light efficiency |
>38lm/W(P=10W/M) |
|
CRI |
Ra>90 |
|
Beam Angle |
120° |
|
IP |
IP65 |
|
PCB |
5mm |
|
Color |
2700/3000K(±150K),3500K/4000K(±200),6000K(±500) |
|
Material |
Food-grade environment friendly silicone |
|
Color tolerance |
SDCM＜5 |
|
Product dimension |
L5015*W7*H9mm(5M/Reel) |
|
Control Mode |
ON/OFF,0-10V Dimmer |
|
Installation |
AL Clip/slot (4.0mm reserved for screw holes) |
|
Out-of-line mode |
Out of the wire at both ends: bare wire, 2*0.5mm² silicone wrap wire, length 300mm |
|
Packing |
Inner box + outer box; 14 pieces/box, outer box size: 415*415*230mm |
Product size:
| Light body size | Card slot size |
|
|
|
Straight -Exit End Cap
* Unit mm * lamp strip / clip section size ± 0.3mm
Advantages:
►Use 3014 high quality and high brightness brand chip;
►CRI >90 to display colors more accurately and naturally;
►illuminate from the side of the silicon housing and bend on a horizontal axis;
►Convenient transportation, not easy broken,high flexible easy to bent,convenient installation modelling,impact resistance,maintenance costs low;
►CE certification, all materials in accordance with RoHS standard;
Power supply is not included,you need to buy the clips and the power supply separately.
Applications:

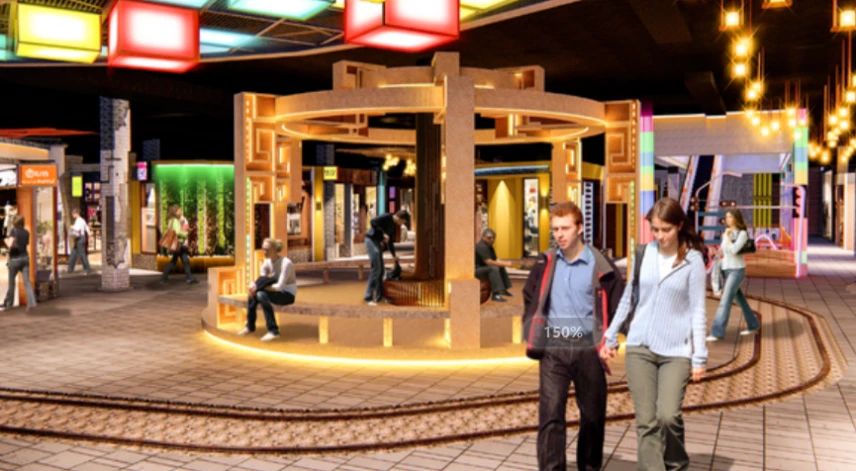

Interior and exterior accent lighting,bed,bedroom,walls,or architectural.
