As a supplier of 30ft LED strip lights, I often encounter customers with questions about power supplies. This blog aims to provide a comprehensive answer to the question: Do you need a power supply for a 30ft LED strip light?

Understanding LED Strip Lights Basics

LED strip lights are a popular lighting solution known for their flexibility, energy - efficiency, and ease of installation. They consist of multiple small light - emitting diodes (LEDs) mounted on a flexible circuit board. These strips are available in various lengths, colors, and brightness levels. A 30ft LED strip light can be used for a wide range of applications, such as under - cabinet lighting, accent lighting in living rooms, or outdoor decoration.

However, LED strip lights cannot directly connect to a standard household electrical outlet. This is because they require a specific voltage and current to operate safely and efficiently. Most LED strip lights are designed to work with low - voltage DC power, typically 12V or 24V, while household electrical systems provide high - voltage AC power (usually 110V - 240V depending on the region).

The Role of a Power Supply

A power supply, also known as a power adapter or driver, is an essential component for LED strip lights. Its main function is to convert the high - voltage AC power from the electrical outlet into the low - voltage DC power that the LED strip light can use.

For a 30ft LED strip light, the power supply is even more crucial. Longer strips consume more power, and without a proper power supply, the LED strip may not receive enough voltage, leading to dim lighting, uneven brightness, or even complete failure.

Let's take a closer look at the key reasons why you need a power supply for a 30ft LED strip light:

1. Voltage Conversion

As mentioned earlier, LED strip lights require low - voltage DC power. A power supply steps down the high - voltage AC power from the wall outlet to the appropriate DC voltage for the LED strip. For example, if you have a 24V LED strip light, the power supply will convert the 110V - 240V AC power to 24V DC power.

2. Current Regulation

In addition to voltage conversion, a power supply also regulates the current flowing through the LED strip. LEDs are sensitive to current changes. If the current is too high, it can cause the LEDs to overheat and burn out prematurely. A good power supply ensures that the LED strip receives a stable and appropriate amount of current, which extends the lifespan of the LEDs.

3. Safety

Using a power supply designed for LED strip lights enhances safety. It protects against electrical short - circuits, over - voltage, and over - current situations. Without a proper power supply, there is a risk of electrical shock, fire, or damage to the LED strip.

Calculating the Power Requirements

To choose the right power supply for a 30ft LED strip light, you need to calculate the power requirements of the strip. First, check the power consumption per foot of the LED strip. This information is usually provided in the product specifications.

For example, if your LED strip consumes 4 watts per foot, then a 30ft strip will consume 4 watts/foot×30 feet = 120 watts. You should choose a power supply with a wattage rating that is slightly higher than the total power consumption of the LED strip. In this case, a 150 - watt power supply would be a suitable choice.

It's also important to consider the voltage requirements. Make sure the power supply output voltage matches the voltage of the LED strip. You can find LED Strip Light 4000k 24v White and other products in our store, which clearly specify the voltage requirements.

Special Considerations for 30ft LED Strip Lights

Longer LED strip lights, such as 30ft ones, present some unique challenges. One of the main issues is voltage drop. As the electricity travels along the length of the strip, there is a gradual decrease in voltage. This can result in the end of the strip being dimmer than the beginning.

To mitigate voltage drop, you can take the following steps:

1. Use a Higher - Voltage LED Strip

Higher - voltage LED strips (e.g., 24V instead of 12V) are less prone to voltage drop. They can deliver power more efficiently over longer distances.

2. Connect the Power Supply at Multiple Points

Instead of connecting the power supply to one end of the 30ft strip, you can connect it at multiple points along the strip. This helps to ensure that all parts of the strip receive an adequate amount of power.

3. Use a Thicker Wire

Thicker wires have lower resistance, which reduces voltage drop. When installing a 30ft LED strip light, use a wire with an appropriate gauge to minimize power loss.

Our Product Range

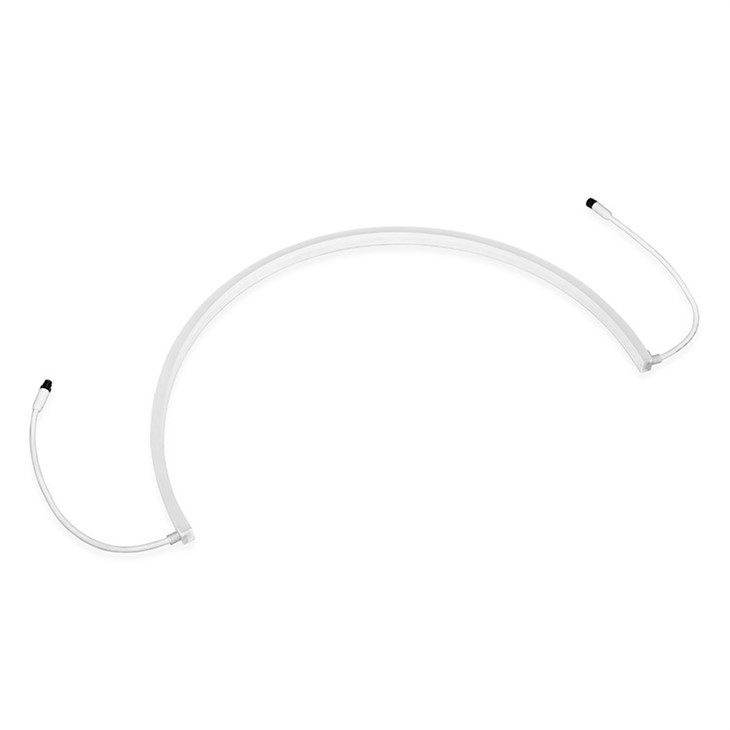

We offer a wide range of LED Strip Lighting products, including 30ft LED strip lights. Our products are designed with high - quality LEDs, ensuring bright and uniform lighting. We also provide various power supplies that are compatible with our LED strip lights.

Our Profile Light Strip is another popular option. It comes with a protective profile that not only enhances the appearance of the LED strip but also provides additional protection.

Conclusion

In conclusion, a power supply is absolutely necessary for a 30ft LED strip light. It converts the voltage, regulates the current, and ensures the safety and proper functioning of the LED strip. When choosing a power supply, make sure to calculate the power requirements of the strip and select a power supply with a suitable wattage and voltage rating.

If you are interested in purchasing 30ft LED strip lights or need more information about power supplies, we encourage you to contact us for procurement discussions. Our team of experts is ready to assist you in finding the best lighting solutions for your needs.

References

• “LED Lighting Handbook.” Published by the Illuminating Engineering Society.
• Manufacturer's specifications for LED strip lights and power supplies.
