Profile Light Strip



Model No	WMD-LR10100NB012 LED Neon Lamp Strip (Top bending)
Voltage	DC24V
Power	6/12W（±10%）
Led brand	SMD2835：Cree，Lumileds Samsung，Osram optional
Led/m	120Leds/M
Luminous flux	>600lm（P=12W/M）4000K,Ra>90）
Light efficiency	>50lm/W（P=12W/M,4000K,Ra>90）
CRI	Ra>90
Beam Angle	120°
IP	IP65
PCB	8mm
Color	2700/3000K（±150K）、3500K/4000K（±200）、6000K（±500）
Material	Food-grade environment friendly silicone
Color tolerance	SDCM＜5
Product dimension	L5015*W10*H10mm（5M/Reel）
Control Mode	ON/OFF，0-10V Dimmer
Installation	AL Clip/slot (4.0mm screw holes)
Out-of-line mode	Wire outlet at both ends: bare wire, waterproof connector, 2*0.75mm² silicone wire, length L300mm
Packing	Inner box + outer box; 14 pieces/box, outer box size: 415*415*230mm



Product size:

Light body size	Slot size







Straight out



Side line



Bottom line





*unit:mm *The section size of the lamp belt / clip is ± 0.3mm



Advantages:

►Use the high quality and the high brightness brand chip；

►Low color temperature tolerances (MacAdam <5)；

►Minor voltage drop-2oz PCB;

►High resistance to environmental influence and UV rays;

►Custom length available.



Applications:

Accent lighting,commercial lighting projects,outdoor lighting.







Why choose us?

• Our Strip Lights are highly durable and require minimal maintenance.
• We promise to abide by all laws and regulations, and be responsible for our words and deeds, fulfill our duties and strive for performance and achievements.
• We are a one-stop-shop for all your Strip Light needs.
• It is our constant pursuit to improve the core competitiveness of enterprises and build industry advantages.
• We strive to make a positive impact on the environment with our Strip Lights.
• The core competitiveness of a product lies in its quality, and if we don't cut corners on quality, we will naturally win the trust and support of our customers.
• We strive for excellence in everything we do, including our Strip Lights.
• In our years of brand development history, we have insisted on building the excellent performance of Profile Light Strip with leading technological strength.
• We take pride in delivering Strip Lights that are second to none.
• Our company has a complete and scientific quality management system, advanced high-tech production equipment, and an expert technical consultant group.

Introduction

The Profile Light Strip is a unique and innovative product that is designed to provide optimal illumination in a range of settings. As a manufacturer located in China, we are proud to present our latest product designed to meet the needs of businesses and individuals worldwide. Our Profile Light Strip is an efficient, economical, and eco-friendly solution that offers a range of benefits to customers looking for cost-effective and reliable lighting.



Design and Features

The Profile Light Strip is a versatile lighting solution that can be used in a range of settings, including homes, workplaces, and commercial properties. It is designed with a compact and slim profile that makes it easy to install in any location. The light strip features a unique design that ensures even illumination, making it ideal for use in areas that require uniform lighting.



Our Profile Light Strip is available in a range of colors, including warm white, cool white, and RGB. This means that customers can choose the color that best suits their needs and preferences. Additionally, the light strip is equipped with a dimming function, which allows users to adjust the intensity of the light as needed.



The Profile Light Strip is also energy-efficient, consuming only a fraction of the power required by traditional lighting solutions. It uses high-quality LED chips that provide reliable and long-lasting performance. The light strip is also equipped with an IP65 waterproof rating, making it suitable for use in both indoor and outdoor settings.



Applications

Our Profile Light Strip is a versatile product that can be used in a variety of applications. Here are some of the most common uses for our product:

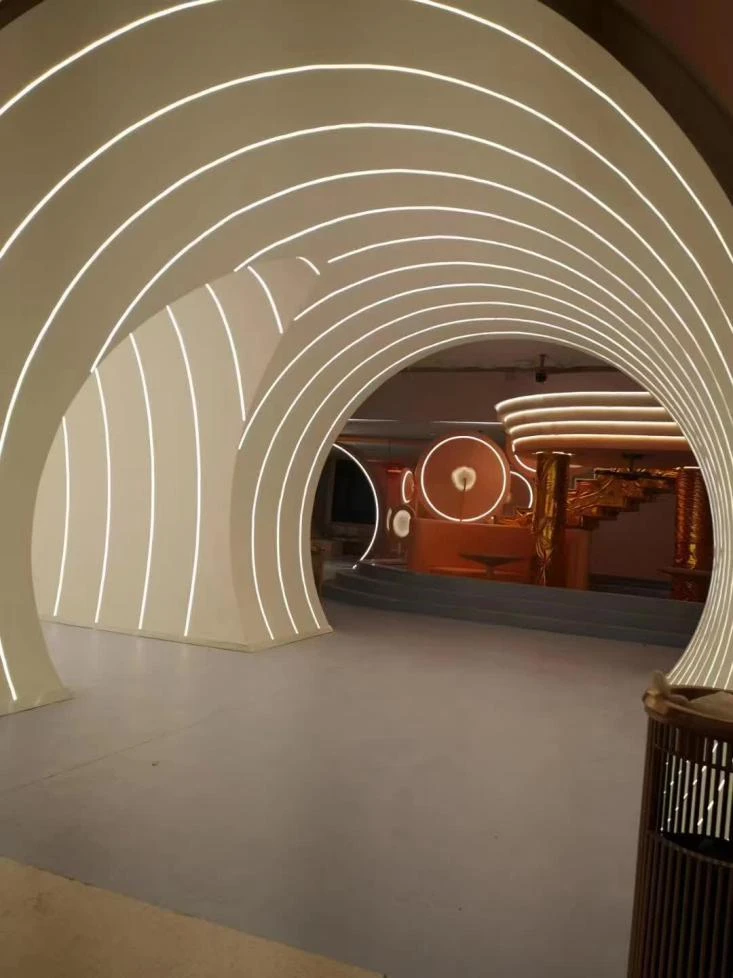

1. Illuminating Interior Spaces: The Profile Light Strip is a great option for illuminating interior spaces, including homes, offices, retail stores, and more. It can be installed in ceilings, walls, and other areas to provide even and bright lighting.



2. Highlighting Decorative Elements: The Profile Light Strip can be used to highlight decorative elements in homes and commercial properties. For example, it can be installed in cabinets, bookshelves, and other areas to highlight artwork, books, and other decorative items.



3. Outdoor Lighting: Thanks to its IP65 waterproof rating, the Profile Light Strip can be used for outdoor lighting as well. It is ideal for illuminating paths, walkways, and other outdoor areas.



4. Commercial Applications: The Profile Light Strip is a cost-effective and reliable option for lighting in commercial properties. It can be used in retail stores, restaurants, and other businesses to provide optimal lighting for customers and employees.



Conclusion

Overall, our Profile Light Strip is a versatile and innovative lighting solution that offers a range of benefits to customers. Whether you're looking for cost-effective and eco-friendly lighting for your home or business, our product is the perfect solution. With its compact design, even illumination, and energy-efficient performance, the Profile Light Strip is sure to meet your needs for reliable and long-lasting lighting. So why wait? Contact us today to learn more about our product and how it can benefit your business or home.
