24 Volt Magical COB LED Strip Lights



Product Specification

Product	COB Strip Light WMD-LC10040N011
Voltage	DC24V
LED brand	COB Cree/ Osram
Power/m	8W	10W	11W
Led/m	320	384	480
Cut size	50mm	41.66mm	50mm
Luminous flux	>960lm	>1250lm	>1560lm
Light efficiency	>120lm/W	>125lm/W	>130lm/W
CRI	Ra>90
Beam Angle	120°
Product process	Bare board, Silicone sleeve, Optional
IP	Bare board: IP20，Silicone sleeve：IP65
PCB	8mm
Color	3000K,4000K,6000K
Lamp body material	Bare board， Sleeve: Silicone
Color tolerance	SDCM＜5
Product dimension	L5000*W10*H4mm（5M/Roll）
Control Mode	ON/OFF，0-10V Dimmer
Installation	3M Back Glue，Sleeve：Snap mount
OUT-of-line mode	IP20：Red & White two-core wire at both ends：2*0.5mm²，L=150mm IP65：Male-female Waterproof connector at both ends：2*0.5mm²，L=150mm
Packing method	Reel in shield bag；32 bags/ctn，Carton Size：520*230*240mm



Product	Magical COB decoration Light WMD-LC1204 0N014
Voltage	DC24V
LED brand	COB Cree/ Osram
Power/m	14W	14W	14W
Led/m	Single color*528	2-Color*608	RGB*768
Cut size	45.45mm	26.31mm	31.26mm
Luminous flux	>1820lm	>1876lm	>1820lm
Light efficiency	>130lm/W	>134lm/W	>130lm/W
CRI	Ra>90
Beam Angle	120°
Product process	Bare board，Silicone sleeve，Optional
IP	Bare board：IP20，Silicone sleeve：IP65
PCB	10mm
Color	optional：3000K,4000K,6000K， 2-color：2700K+4000K， RGB
Lamp body material	Bare board， Sleeve: Silicone
Color tolerance	SDCM＜5
Product dimension	L5000*W12*H4mm（5M/Roll）
Control Mode	ON/OFF，0-10V dimmer，RGB( Can be used with external decoder)
Installation	3M Back Glue，Sleeve：Snap mount
OUT-of-line mode	IP20: 2-core /3-core(2 colors)/4-core (RGB)wire at both ends：2*0.5mm²，L=150mm IP65：Male-female Waterproof connector at both ends：2*0.5mm²，L=150mm
Packing method	Reel in shield bag；30 bags/ctn，Carton Size：520*230*240mm



Product Size

WMD-LC10040N011

WMD-LC1204 0N014





Characteristics:

The heat sink technology is adopted to ensure the LED has the industry-leading heat flux maintenance rate (95%)；

The lamp strip adopts very soft FPC as the base plate, which can be randomly bent and cut, and easy to shape;

High Light efficiency and color rendering, uniform luminescence, no spot;

Low-voltage DC power supply voltage of 24 V will not cause security risks;

CE, all materials in accordance with RoHS standard.



FAQ:

Q:What does COB mean?

A:COB is Chips on Board, which means that the chip is directly packaged on the PCB board. The COB light strip is a light strip with chips packaged on a flexible board. Chips are mostly flip chips, which are linearly bonded on the PCB, and then directly drop a layer of packaging glue mixed with phosphor powder on the surface of the chip. The light emitted by the chip is refracted, reflected, and interacted with phosphors in the packaging colloid, and the colloid uniformly emits light of different colors and color temperatures.

Due to the structural characteristics of the COB light strip, the light emitting surface is a linea crolloid ,The COB light strip should be much more uniform, linear, and without spots.



Applications:

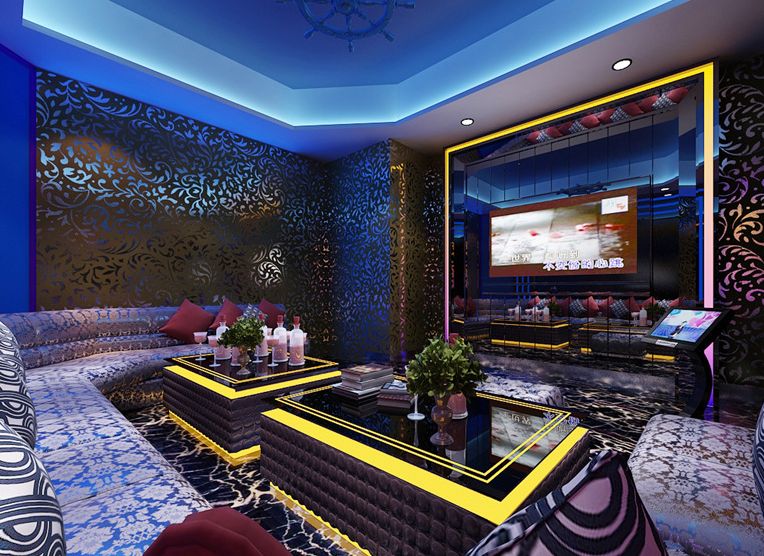

Silhouette decoration for the park and bridge.Entertainment atmosphere lighting. Hotel,KTV and Bar decoration;

The building contour decoration.







Why choose us?

• We strive to make a positive impact on the environment with our Strip Lights.
• We have won more and more customers with high-quality products and excellent reputation.
• Our Strip Lights come in various sizes, shapes, and colors to suit your needs.
• The core of quality responsibility system is the combination of responsibility, power and benefit for enterprise managers, technicians and production personnel on quality issues.
• Our Strip Lights are widely used in commercial, industrial, and residential applications.
• With quality 24 Volt Magical COB Led Strip Lights, safe use performance, reasonable sales price and professional after-sales team, we serve many enterprises at home and abroad.
• Our Strip Lights come with a warranty to give you peace of mind.
• The rapid growth of our company's performance, on the one hand, benefits from the steady growth of the industry market scale, on the other hand, it lies in the reasonable formulation and steady implementation of the company's development strategy.
• Our Strip Lights are highly versatile and can be used in numerous settings.
• We are confident that our 24 Volt Magical COB Led Strip Lights is effective in both enhancing the quality of our customers' products and strengthening their competitive advantage.

Introduction:We, as a prominent manufacturer situated in China, are dedicated to providing exceptional quality products to merchants worldwide. We take pride in our innovative 24 Volt Magical COB Led Strip Lights, which are unique, versatile, and energy-efficient.



Our Magical COB Led Strip Lights are designed to provide a mesmerizing aesthetic appeal to any space, be it residential, commercial, or industrial. We have incorporated cutting-edge features in our lights, making them an excellent choice for modernizing any ambiance.



Features:Our Magical COB Led Strip Lights come with a plethora of features that set them apart from conventional lighting solutions. Let's take a closer look at some of the key features of our product:



1. Energy-efficientOur lights are designed to save energy, making them an eco-friendly and cost-effective option. Our lights consume significantly less power than traditional lighting solutions, while producing brighter and more intense lighting.



2. Aesthetic appealOur lights are designed with style in mind. They are perfect for enhancing the aesthetic appeal of any space, whether it is a residential, commercial, or industrial setting. Whether you want to brighten up a dull room or highlight a certain feature, these lights are the perfect solution.



3. DurabilityOur Magical COB Led Strip Lights are made from high-quality materials that ensure their longevity. They are designed to resist wear and tear, making them a reliable choice even in harsh environments.



4. VersatilityOur lights are versatile and can be used in a myriad of ways. They can be used to highlight specific features in a room or to provide general lighting. They can also be used in outdoor settings, making them an excellent choice for enhancing outdoor spaces.



5. Easy to InstallOur lights come with an easy-to-follow installation manual, making it a breeze to set them up. Whether you're an electrician or a DIY enthusiast, you will find installing our lights a straightforward process.



Benefits:Our Magical COB Led Strip Lights offer several benefits that make them an attractive option for merchants. Here are some of the benefits of our lights:



1. Cost-effectiveOur lights are energy-efficient, which means they offer significant cost savings in the long run. The lower energy consumption translates to lower electricity bills, making them a cost-effective solution for merchants and their customers.



2. Aesthetic appealOur lights provide a unique aesthetic appeal to any space, making them an excellent choice for merchants who want to offer their customers a stylish and modernized ambiance.



3. Improved visibilityOur lights produce brighter and more intense lighting compared to traditional lighting solutions. This means that they improve visibility, making it easier for customers to see products and navigate the space.



4. VersatileOur lights are versatile and can be used in various settings, making them an attractive option for merchants who want a lighting solution that can be used in different locations.



Conclusion:Our Magical COB Led Strip Lights are an excellent choice for merchants who want to offer their customers a unique and modern lighting solution. We have incorporated cutting-edge features in our lights, making them energy-efficient, aesthetically pleasing, durable, versatile, and easy to install.



With our lights, merchants can enhance the ambiance of their space, improve visibility, and save money in the long run. We take pride in providing exceptional quality products at an affordable price, and we believe that our Magical COB Led Strip Lights are the perfect addition to any merchant's inventory.
