LED Light Strip for Ship



Model No	WMD-LR10180CB018 LED Neon Lamp Strip (Side bending)
Voltage	DC24V
color type	SMD2835	DMX512 SMD2835	DMX512 RGB SMD5050	DMX512 RGBW SMD5050
Power   Led/m	6W/12W 120pcs	8P=14W=96pcs 10P=14W=120pcs 12P=14W=84pcs	4P=10W=56pcs 6P=10W=72pcs 8P=10W=56pcs 10P=12W=60/70pcs	4P=12W=56pcs 6P=12W=72pcs 8P=10W=56/80pcs 10P=18W=60/70pcs 12P=18W=84pcs 16P=18W=80pcs
Led brand	CREE，PHILIPS，Samsung，Osram optional
Luminous flux	>420lm（P=12W/M）6000K,Ra>90)
Light efficiency	>35lm/W（P=12W/M,6000K,Ra>90）
CRI	Ra>90
Beam Angle	120°
IP	IP65
PCB	12mm
Color	2700/3000K（±150K）,3500K/4000K（±200）,6000K（±500）,RGB ,RGBW
Material	Food-grade environment friendly silicone
Color tolerance	SDCM＜5
Product dimension	L5015*W10*H18mm（5M/Reel）
Installation	AL Clip/slot (4.0mm reserved for screw holes)
Out-of-line mode	Single color: 2*0.75mm², two-color: 3*0.5mm² DMX512: 2*0.75+3* 0.25mm ² line, L=300mm, bare wire/waterproof connector, silicone wire
Packing	Inner box + outer box; 10 pieces/box, outer box size: 415*415*230mm
Gray scale	256/65536
Differential parallel signal transmission	4096 Channel addressing (max)
Current gain Adjust	4bit (software available to change power)



Product size:

Light body size	Slot size







Straight out





Side line



*unit:mm *The section size of the lamp belt / clip is ± 0.3mm



Advantages:

►Side bending flat lighting,DMX512 colorful neon light strip,uniform light,no facula ；

►Strong holder of LED, double-side 3OZ copper PCB,24v input voltage,no voltage drop；

►CRI 90 as standard,CRI 95 also available,higher CRII like 98 can be customized;

►Anti-UV injection end cap up to IP67 for outdoor using;

►CE, all materials in accordance with RoHS standard.



FAQ:

Q: Are you trading company or manufacturer? A: We are professional manufacturer specialized in outdoor lighting products. And we deal our products with our clients directly.



Q: Can you do OEM and ODM?

A: Yes, OEM and ODM are both acceptable. OEM/ODM Service is a core part of our business, from research and development to final assembly and custom packaging,we can help you create products to meet your exact specification for project.

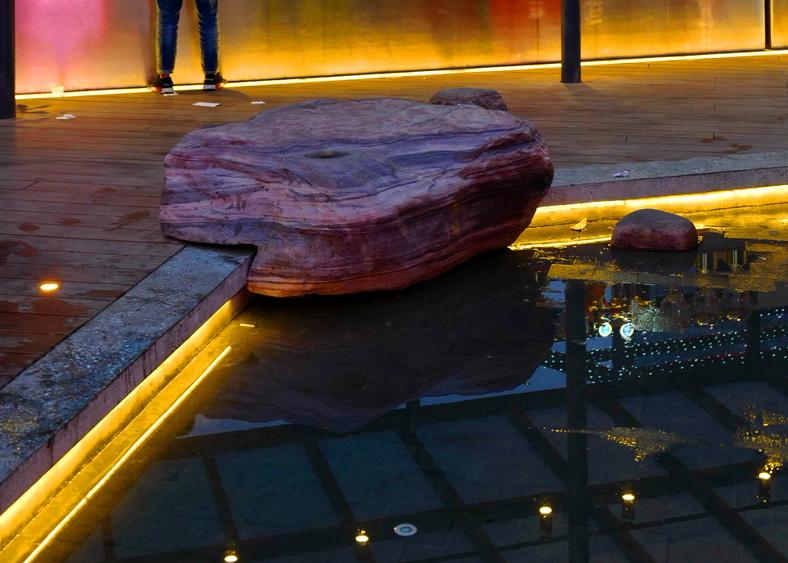

Application:









Why choose us?

• Our Strip Lights are perfect for indoor and outdoor lighting applications.
• We will improve the quality management system and pre-sale, in-sale and after-sales service systems.
• Our company specializes in producing top-notch Strip Lights.
• Our company adheres to the business philosophy of 'responsibility wins respect, innovation wins competition', abides by the principle of honesty and mutual benefit, and contributes to the industry of Led Light Strip For Ship.
• Our Strip Lights are of superior quality and at a competitive price point.
• We insist on proceeding from reality, studying the market trend down-to-earth, and focusing on the quality of Led Light Strip For Ship.
• We offer customized Strip Lights to meet your unique requirements.
• Our company is a manufacturer that has been in Led Light Strip For Ship for many years and has gained many loyal customers.
• Our Strip Lights are designed to provide optimal brightness and energy efficiency.
• We should not only provide customers with goods, but also enrich the value of customers, so that customers can get more value-added feelings when consuming a kind of goods.

Introduction

As a manufacturer of LED lighting products based in China, we want to introduce our latest product - the LED Light Strip for Ships. We understand that the marine industry has unique lighting needs, which is why we have designed this product to meet those specific requirements. With this LED light strip, you can now illuminate your ship's interior and exterior spaces more effectively and efficiently. In this product introduction, we will discuss various aspects that make this LED Light Strip for Ship a valuable investment for any ship owner.



Product Features

The LED Light Strip for Ship is a versatile and durable lighting solution designed to offer optimal functionality and performance while at sea. Here are some of the product features that make it stand out from other marine lighting products:



1. High-quality lighting: The LED Light Strip for Ship uses high-quality LED diodes, which provide bright, efficient, and long-lasting illumination. The light produced by these LEDs is superior to conventional lighting products, as it provides a natural tone and is less harsh to the eyes.



2. Waterproof and corrosion-resistant: Our LED Light Strip for Ship is specifically designed for harsh marine environments and is both waterproof and corrosion-resistant. The product is encapsulated in a durable silicone casing that protects it from saltwater, fog, and other marine elements.



3. Easy to install: The LED light strip is easy to install and can be mounted in a variety of different ways to meet your specific lighting needs. You can use screws and brackets to attach the strips to any surface or use 3M adhesive tape to attach it to non-metallic surfaces.



4. Energy-efficient: This LED light strip is highly energy-efficient because it uses advanced LED technology to produce high-quality illumination while consuming very little energy.



Applications

Our LED Light Strip for Ships is a perfect lighting solution for a wide range of applications. Some of its common applications include:



1. Cabin lighting: The LED Light Strip for Ship is ideal for cabin lighting because it produces bright, natural light that enhances the ambiance of your ship's interiors.



2. Deck lighting: The waterproof and corrosion-resistant design of this LED light strip makes it perfect for outdoor use, including deck lighting. You can use this light strip to illuminate your deck's surface, making it easier to navigate during nighttime.



3. Engine room lighting: The LED Light Strip for Ship is also an excellent lighting solution for engine rooms as it can withstand high temperatures and humidity levels without compromising performance.



Advantages

The LED Light Strip for Ship offers several advantages that make it a valuable investment for any ship owner. These advantages include:



1. Improved energy efficiency: The LED Light Strip for Ship consumes very little power, which translates to significant energy savings. You will save money in the long run on your energy bills.



2. Enhanced safety: Proper lighting is critical to ensuring safety aboard your ship. The LED Light Strip for Ship provides bright, efficient, and long-lasting illumination, making it easier for crew members to navigate your ship safely.



3. Increased durability: Marine environments are harsh, so you need lighting products that can withstand the elements. The LED Light Strip for Ship is designed to be waterproof, corrosion-resistant, and can withstand the rigors of marine operations.



Conclusion

Our LED Light Strip for Ship is an excellent investment for any ship owner who values high-quality lighting solutions. With its energy efficiency, waterproof design, and versatility, you can rest assured that you will receive an excellent product that will stand the test of time. Contact us today to learn more about our LED lighting products.
