Elegant IV High Bay Light



Feature & Benefits

1. High performance and reputable brand led chips and driver;

2. Clear polycarbonate lens with no risk of lamp breaking for safe industry applications;

3. Optimized aluminum alloy housing design for superior thermal management;

4. Instant light up with no warm up time;

5. No cool down needed before restart;

6. High mechanical impact resistance and ingress protection rating;

7. High power UFO high bay in 400-960W and apply to the distribution center;

8. ADC 12 die-cast aluminum process, make the heat quickly exports the lamp body, reduce the temperature difference, reduce the junction temperature of the light source, reduce the light decay of the light source;

9. Professional lens lighting: 10 / 25 / 45 / 60 / 90;

10. First-line power supply and lamp bead brand, to ensure the quality and life of products;

11. Philips light source 3030 light efficiency can reach 140 lm ~ 150 lm/W, the life of 60,000 hours;

12. Grade of external intrusion: IP66;

13. Mechanical impact protection level: IK 10;

14. Operating environment temperature of the product: -35~ + 50℃.



Applications

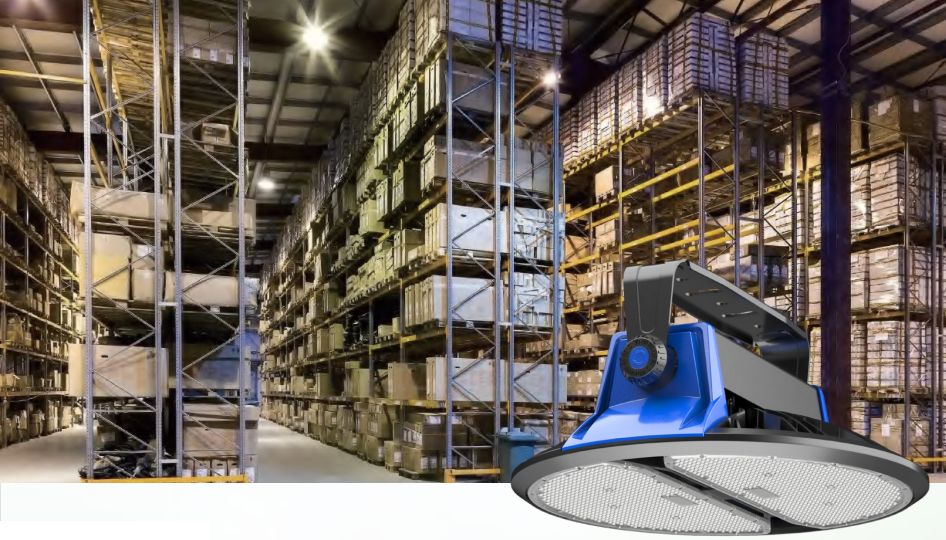

Logistics center、large gymnasium lighting、port、tower crane、wharf、airport and other lighting places.



Options

DALI 1-10V Dimming 10/25/45/60/90° degree lens Adjustable mounting bracket



Ordering Information

Part No	Power	CCT	Flux	Dimming	Diameter	Height	Beam Angle
WMDHL003400	400W	2700-6500K	52000-56000lm	Option dimming	439mm	421mm	10/25/45/60/90°
WMDHL003480	480W	2700-6500K	62400-67200lm	Option dimming	439mm	421mm	10/25/45/60/90°
WMDHL003800	800W	2700-6500K	104000-112000lm	Option dimming	651mm	511mm	10/25/45/60/90°
WMDHL003960	960W	2700-6500K	124800-134400lm	Option dimming	651mm	511mm	10/25/45/60/90°

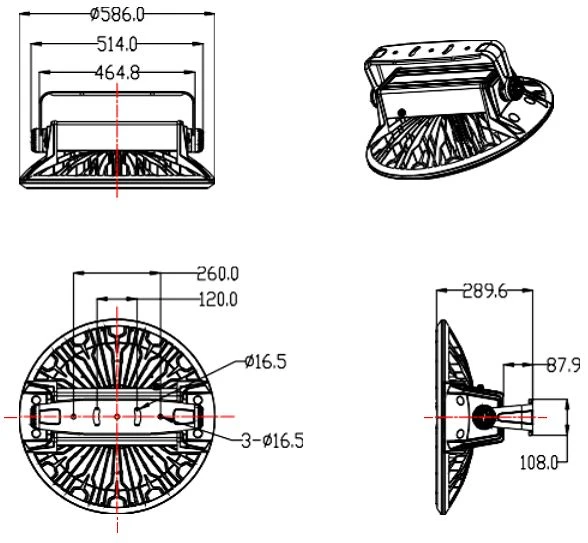

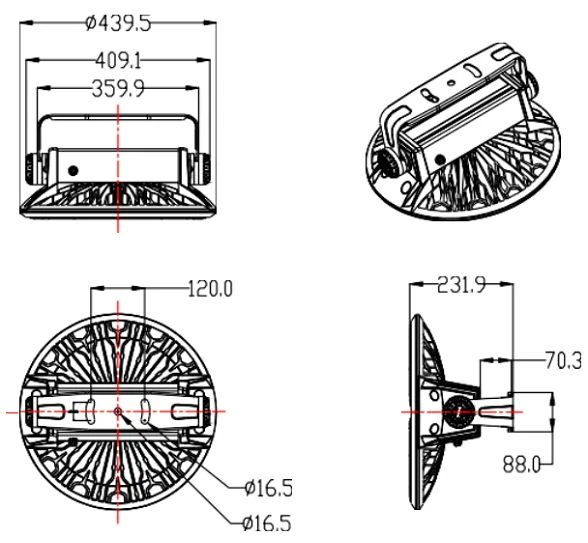

Dimensions

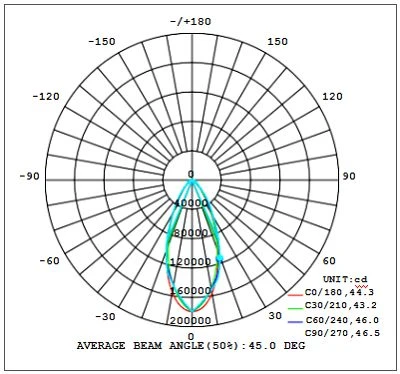

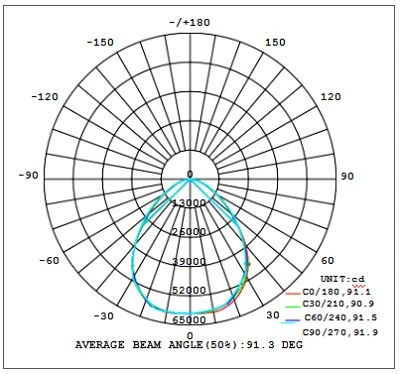

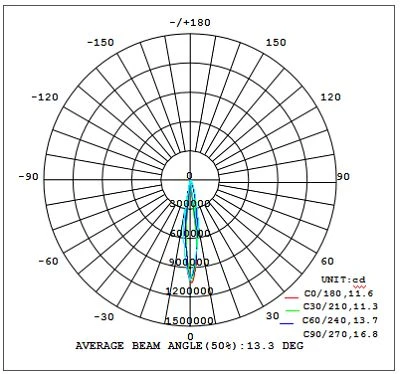

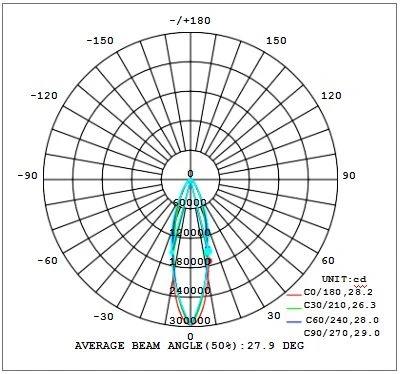

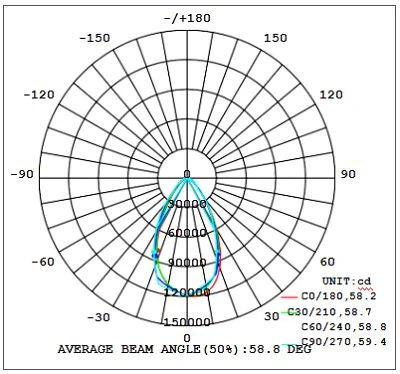

Photometry

Specifications

Power Consumption: 400-960W

Colour Rendering Index (Ra): 70/80+

Luminous Flux: 52,000lm to 134,400lm

L70 lumen maintenance: >50, 000 hours

Input Voltage: 100-277V~

Power factor: >0.95

Color Temperature: 2700 - 6500K

Warranty: 5/7 years

IP and IK Rating: IP66 and IK08



Packing

Model	Carton Size	N.W	G.W	QTY
WMDHL003400	493*439*421mm	13.5KG	14.5KG	1PC
WMDHL003480	493*439*421mm	13.5KG	14.5KG	1PC
WMDHL003800	651*586*511mm	26KG	27KG	1PC
WMDHL003960	700*650*600mm	26KG	27KG	1PC



The Elegant IV High Bay Light is a revolutionary product designed to meet the needs of merchants who require high-quality lighting solutions for their commercial space. This product is manufactured in China with state-of-the-art technology and is created to meet international standards.



The Elegant IV High Bay Light is perfect for commercial applications that require excellent lighting performance, energy efficiency, and durability. It can be used in warehouses, factories, workshops, and other large commercial spaces that need high-quality lighting. This product is designed to provide a lighting solution that not only meets all the lighting requirements but also saves energy, reduces costs, and is environmentally friendly.



The Elegant IV High Bay Light features an advanced LED light source that offers superior lighting performance compared to traditional lighting solutions. The LED light source is energy-efficient and has a longer lifespan, which means that the cost of maintenance and replacement is reduced significantly. The light source features a high color rendering index (CRI), which makes it perfect for areas where color is critical. The light source has a color temperature of 5000K, which is similar to natural daylight.



The Elegant IV High Bay Light comes in different wattages, depending on the needs of the application. It has a power output of up to 400W, which makes it an excellent choice for larger commercial spaces that require high-quality lighting. The product's efficiency is excellent, with an efficacy of up to 150 lumens per watt, making it one of the most efficient high bay lights on the market.



The Elegant IV High Bay Light has a long lifespan of up to 50,000 hours, which means that it requires minimum maintenance and replacement costs. The product is designed to be environmentally friendly, with no harmful materials such as mercury or lead used in its manufacturing. The product is RoHS and CE certified, ensuring that it meets the highest international standards.



The product has an elegant design that blends perfectly with any commercial space. The design is slim and compact, ensuring that it does not take up too much space. The product is easy to install, and its modular design makes it possible to replace individual parts without having to replace the entire product.



The Elegant IV High Bay Light is also designed to be highly flexible, with a variety of control options available. The product can be controlled using a manual dimmer, a remote control, or even a smartphone app. The product is also compatible with intelligent lighting control systems, making it possible to control it remotely.



The product comes with a 5-year warranty, making it possible for merchants to buy with confidence. The warranty covers any manufacturing defects or faults, ensuring that the product performs optimally for the entire warranty period.



In conclusion, if you're a merchant looking for a high-quality, energy-efficient, durable, and environmentally friendly high bay light for your commercial space, the Elegant IV High Bay Light is the perfect choice. The product is manufactured in China using state-of-the-art technology, and it meets all the international standards. With its advanced LED light source, excellent efficiency, long lifespan, and modular design, the product is the perfect solution for any commercial space. So, take advantage of the 5-year warranty and buy with confidence!
