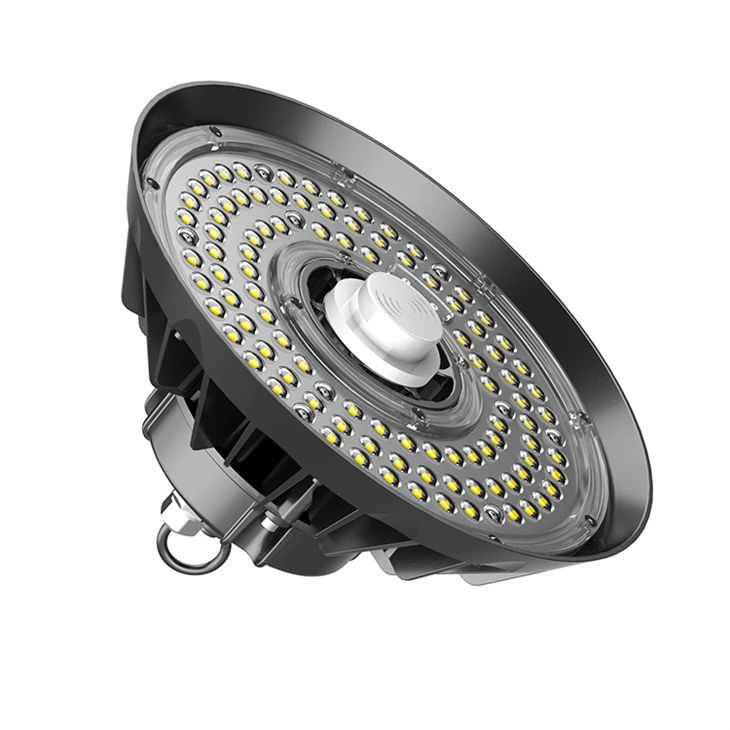

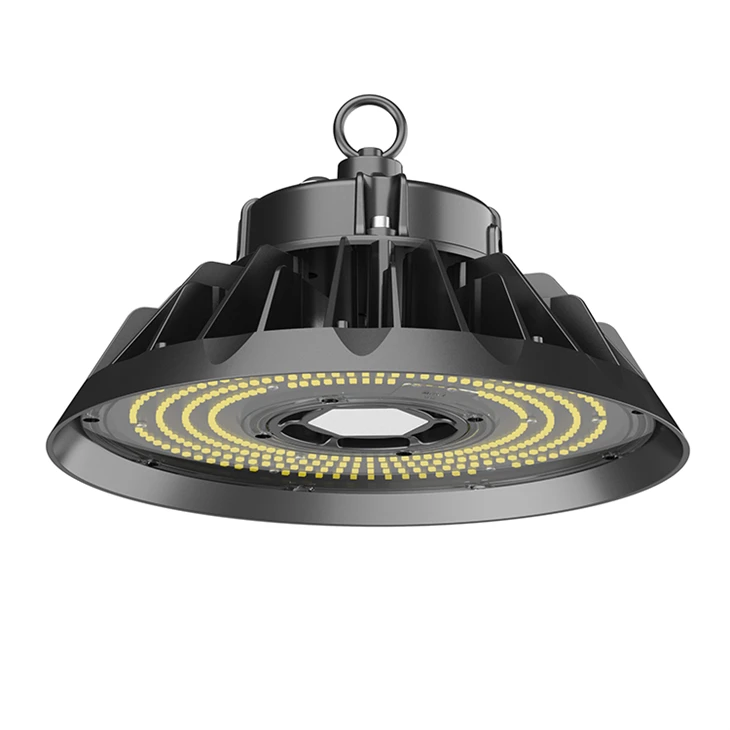

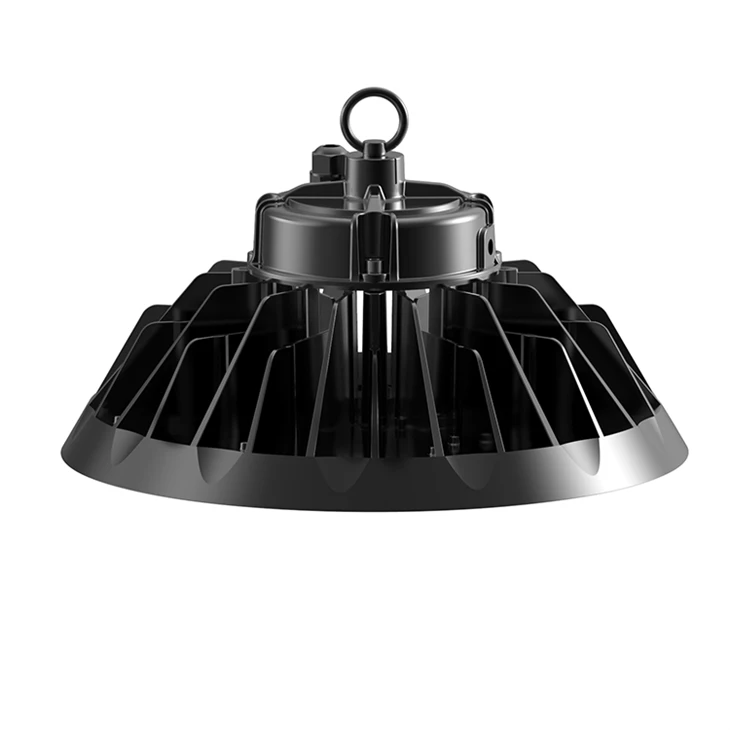

Elegant V High Bay Light



Feature & Benefits

Hollow design: increase the industrial appearance, maximizes the heat dissipation area to achieve excellent thermal management;

Smart lighting control: microwave sensor, PIR sensor, Zigbee etc;

High performance and reputable brand led chips and driver;

Clear polycarbonate lens with no risk of lamp breaking for safe industry applications;

Optimized aluminum alloy housing design for superior thermal management;

Instant light up with no warm up time;

No cool down needed before restart;

High mechanical impact resistance and ingress protection rating;

Compact in size and easy for transportation.

Smooth hole structure, so that the heat quickly export the lamp body, reduce the lamp temperature differenc;

Microwave sensing function and remote control selection;

The most popular die-casting aluminum process, the heat dissipation performance is better.



Options

Aluminum Reflector	1-10V /DALI Dimming	Safety Steel Rope
60/90/120 degree lens	Adjustable mounting bracket	Microwave Sensor



Applications

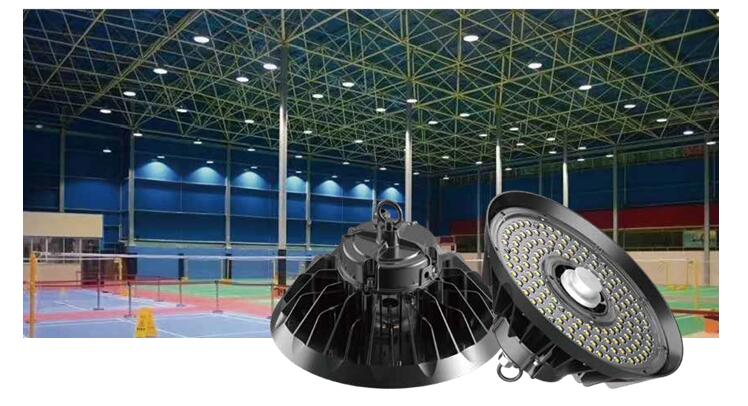

Applied in workshop, warehouse, exhibition hall, supermarket, gym, indoor gymnasium, gas station, logistics center, underground parking lot and other lighting places.



Specifications

Model No.	WMDHL004100	WMDHL004150	WMDHL004200	WMDHL004240
Rated Power	100W	150W	200W	240W
Input Voltage	AC100～277V
Chip	OSRAM/LUMILEDS
CRI	Ra>80
Power Factor	>0.95
Luminous Efficacy	150lm/W,170lm/W,190/lm/W
IP Rating	IP65
Operation Temperature	-35℃~+50℃
Beam Angle	60°/90°/120°
Warranty	5 years
Dimension	248*129mm	295*140mm	320*154mm	320*154mm
Gross Weight	2.9KGS	3.4KGS	4.7KGS	4.8KGS
Certificate	CCC / CQC / TUV / CB / FCC / SAA / CE / RoHS

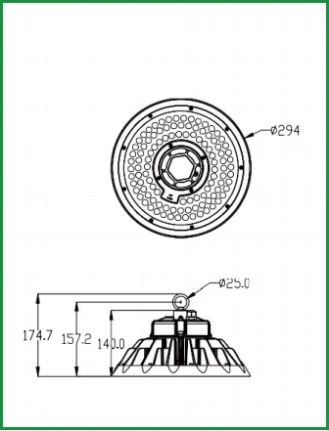

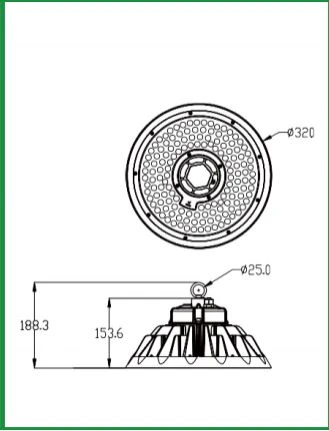

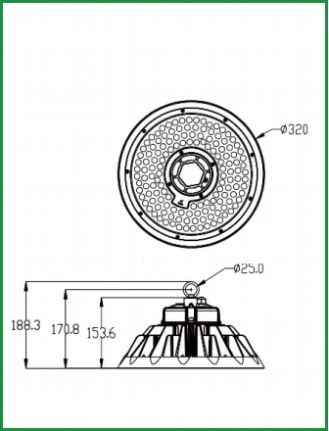

Dimensions

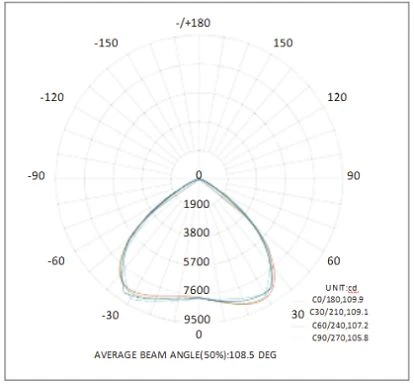

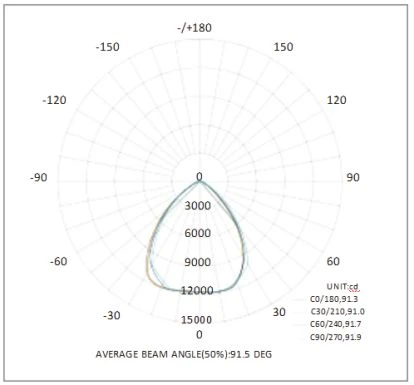

Photometry

Installation

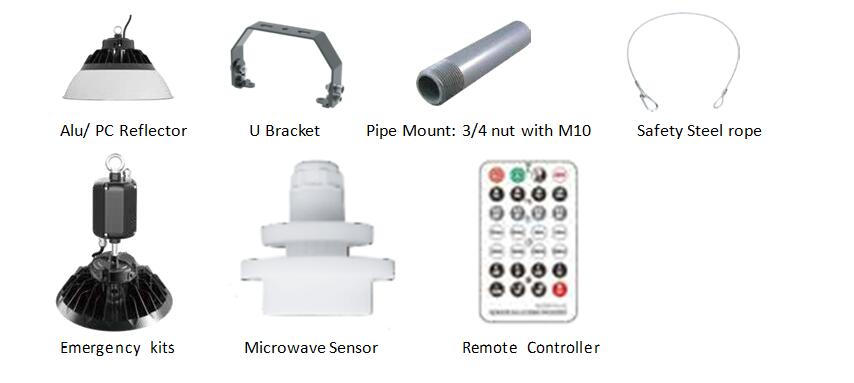

Accessories Options



Compared with the traditional industrial mining lamp, LED industrial mining lamp has great advantages

1. LED industrial and mining lamp display index high RA≥80;

2. LED mining lighting efficiency, more energy saving, equivalent to 100W LED mining lamp can replace the traditional 250W traditional mining lamp;

3. Traditional light sources all have the disadvantage of high temperature of lamps, which can reach 200-300 degrees. And the LED itself is a cold light source, the lamp temperature is low, safer, belongs to the cold drive;

4. LED mining lamp in continuous innovation, the latest fin type radiator mining lamp more reasonable radiator design, greatly reduce the weight of industrial and mining lamps, so that the overall weight of 80W LED industrial and mining lamp reduced to below 4 KG, and can solve the heat dissipation problem of 80-300W LED industrial and mining lamp.



Introducing the Elegant V High Bay Light

Are you looking for an innovative and cost-effective lighting solution for your commercial warehouse or industrial space? Look no further than the Elegant V High Bay Light. Our cutting-edge lighting fixture is designed to provide superior brightness and energy efficiency, making it the perfect solution to your lighting needs.



The Elegant V High Bay Light is a new generation of LED light that incorporates advanced technology to enhance both lighting quality and energy utilization. With its proprietary design, the Elegant V High Bay Light provides both brilliance and comfort, optimizing the working environment, and reducing energy consumption.



At first glance, you'll notice the sleek, minimalist appearance of the Elegant V High Bay Light. Its innovative V shape design allows it to deliver optimal lighting performance while using minimal space, making it a popular product for any size warehouse or industrial space.



The Elegant V High Bay Light boasts an impressive lifespan of up to 50,000 hours, ensuring that it will be a reliable lighting fixture for years to come. This makes it a wise investment for any business looking to cut costs on maintenance and replacement expenses that other lighting solutions require.



What makes the Elegant V High Bay Light so exceptional is its superior brightness. This innovative light requires fewer fixtures to achieve optimal lighting levels, reducing energy use and costs. Using high-quality LED technology, the Elegant V High Bay Light offers a bright, crisp, and clear light output of up to 160 lumens per watt, making it the most cost-effective lighting solution available on the market.



Another advantage of the Elegant V High Bay Light is its ability to reduce heat generation. With its advanced heat dissipation design, the Elegant V High Bay Light keeps the lighting fixture cool and safe to use, even in high-temperature environments. The fixtures are also designed to be compatible with a wide range of voltage inputs, making them a versatile option for various countries and regions.



The Elegant V High Bay Light is also designed to be environmentally friendly. By using less energy than traditional lighting fixtures, these lights help reduce the carbon footprint of your business. Additionally, the Elegant V High Bay Light is mercury-free, making it a safer and more eco-friendly alternative to traditional lighting options.



In conclusion, the Elegant V High Bay Light is an innovative and cost-effective lighting solution perfect for any commercial warehouse or industrial space. With its advanced technology, superior brightness, and energy efficiency, the Elegant V High Bay Light is sure to impress merchants looking for a reliable and economical lighting solution. If you're in the market for a new lighting fixture, consider the Elegant V High Bay Light, and experience the difference it can make in your business.
