Indoor LED High Bay Light



Features

1. Cooling fins as heat sink with die casting;

2. The high performance of Ripple series high bay light is attributable to the omnidirectional nature of tree-like fins. Thanks to that, air streams are able to enter and exit from all directions;

3. 50% less power consumption than traditional light sources;

4. VDE/UL listed 3*1.0mm² rubber cable with cold-pressed terminal;

5. Competitive price and high performance provide possibility to achieve high yield ROI while fast delivery time fulfils the urgent needs for budget projects with short time notice;

6. The ripple-like lens cover diffuses the dazzling light generated by individual leds and shed a gentle beam creating a harmonious lighting environment;

7. Emergency kit as options if required;

8. .ies/.ldt files are available.



Applications

Warehouse、Supermarket、Workshop、Exhibition hall



Product Data

General Information
LED Type	Lumileds
Light Efficacy	130lm/W, 150lm/W,190lm/W
CCT	4000K/5000K/6500K
CRI	70/80
LED Lifespan	119,000h@L70B50;75,000h@L80B50;35,000h@L90B50
Power Supply	Philips / Sosen
Type of Driver	Non-isolated / Isolated
Driver efficiency	-
Protection class IEC	-
Warrany	5 Years Warrany
Certificate	CE, CB,ERP, RoHS
Application Conditions
Operating Temperature	-30°C to 50°C
Approval and Application
Ingress protection code	IP65
Mech. impact protection code	IK08
Surge protection	4KV/2KV
Operating and Electrical
Input voltage	220-240Vac/100-277Vac
Input Frequency	50/60Hz
Inrush current	-
Power Facto	≥0.95
THD	-
Mechanical and Housing
Structure Material	Die casting ADC12
Finish Material	Powder coated
Lens Material	Polycarbonate
Glass Material	-
Fixture Color	Matte black
Mouting Option	Suspending / Ceiling Mounting/ Wall Mounting
Controls and Dimming
Dimmable	Dimmable and Non-dimmable
Intelligent Control	Dimming / DALI/ Microwave Sensor



Product Parameter

ON/ OFF &DIMMING CONTROL VERSION

Model Number	Power Consumption (±10%)	Ra	Input voltage	Light Efficiency	Luminous Flux (lm) (±10%） @4000K @5000K @6500K	Beam Angle	Correlated Color Temperaure	LED Type	Drvier Type
WMD-IL100-XXXN-FRI WMD-ID100-XXXN-FRI	100W	80	220-240VAC 100-277VAC	130lm/W	13,000lm	60deg 90deg	4000K 5000K 6500K	LumiLeds	Sosen/Philps
WMD-IL150-XXXN-FRI WMD-ID150-XXXN-FRI	150W				19,500lm
WMD-IL200-XXXN-FRI WMD-ID200-XXXN-FRI	200W				26,000lm
WMD-ID240-XXXN-FRI	240W				31,200lm
WMD-ID300-XXXN-FRI	300W				39,000lm



Model Number	Power Consumption (±10%)	Ra	Input voltage	Light Efficiency	Luminous Flux (lm) (±10%） @4000K @5000K @6500K	Beam Angle	Correlated Color Temperaure	LED Type	Drvier Type
WMD-IL100-XXXN-FRI WMD-ID100-XXXN-FRI	100W	80	220-240VAC 100-277VAC	150lm/W	15,000lm	60deg 90deg	4000K 5000K 6500K	LumiLeds	Sosen/Philps
WMD-IL150-XXXN-FRI WMD-ID150-XXXN-FRI	150W				22,500lm
WMD-IL200-XXXN-FRI WMD-ID200-XXXN-FRI	200W				30,000lm



Model Number	Power Consumption (±10%)	Ra	Input voltage	Light Efficiency	Luminous Flux (lm) (±10%） @4000K @5000K @6500K	Beam Angle	Correlated Color Temperaure	LED Type	Drvier Type
WMD-IL100-XXXN-FRI WMD-ID100-XXXN-FRI	100W	70	220-240VAC 100-277VAC	190lm/W	19,000lm	60deg 90deg	4000K 5000K 6500K	LumiLeds	Sosen/Philps
WMD-IL150-XXXN-FRI WMD-ID150-XXXN-FRI	150W				28,500lm
WMD-IL200-XXXN-FRI WMD-ID200-XXXN-FRI	200W				38,000lm



Sensor Version

Model Number	Power Consumption (±10%)	Ra	Input voltage	Light Efficiency	Luminous Flux (lm) (±10%） @4000K @5000K @6500K	Beam Angle	Correlated Color Temperaure	LED Type	Drvier Type
WMD-IS100-090N-FRI	100W	80	100-277VAC	130lm/W	13,000lm	90deg	4000K 5000K 6500K	LumiLeds	Sosen
WMD-IS150-090N-FRI	150W				19,500lm
WMD-IS200-090N-FRI	200W				26,000lm



Model Number	Power Consumption (±10%)	Ra	Input voltage	Light Efficiency	Luminous Flux (lm) (±10%） @4000K @5000K @6500K	Beam Angle	Correlated Color Temperaure	LED Type	Drvier Type
WMD-IS100-090N-FRI	100W	80	100-277VAC	150lm/W	15,000lm	90deg	4000K 5000K 6500K	LumiLeds	Sosen
WMD-IS150-090N-FRI	150W				22,500lm
WMD-IS200-090N-FRI	200W				30,000lm



Model Number	Power Consumption (±10%)	Ra	Input voltage	Light Efficiency	Luminous Flux (lm) (±10%） @4000K @5000K @6500K	Beam Angle	Correlated Color Temperaure	LED Type	Drvier Type
WMD-IS100-090N-FRI	100W	70	100-277VAC	190lm/W	19,000lm	90deg	4000K 5000K 6500K	LumiLeds	Sosen
WMD-IS150-090N-FRI	150W				28,500lm
WMD-IS200-090N-FRI	200W				38,000lm

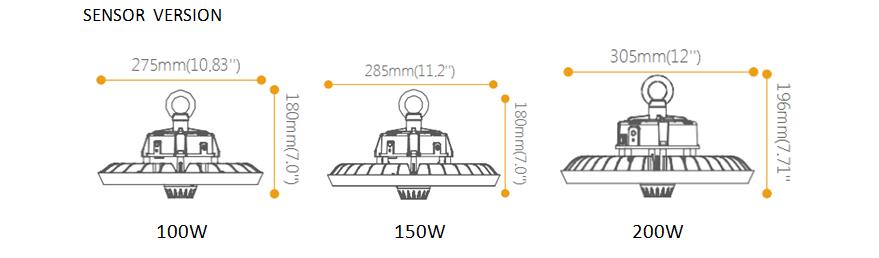

Sensor Version

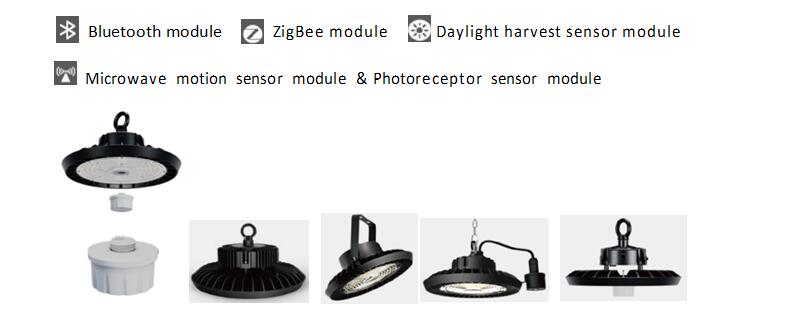

Optional Smart Control Modules

The structure is designed to have great compatibility with DC input changeable smart control modules available in the market, which could be hidden mounted to maintain the integrity of appearance.

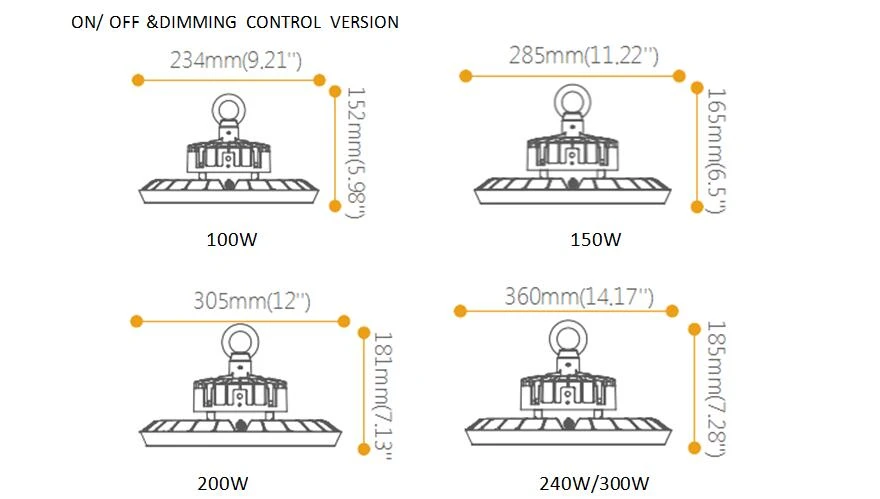

Drawing



Light Distribution Curve



Package

Item.	Luminaire Net Weight	Packing Info	Dimmension (inner box) (mm)	Dimmension (outer carton) (mm)	GW (Outer carton)	20ft GP	40ft GP	40 HQ
100W	2.1kg	1pc/ctn without inner box	/	L345*W345*H185	3.2kg	1224 pcs	2448 pcs	2856 pcs
150W	2.4kg		/	L355*W355*H185	3.5kg	1152 pcs	2376 pcs	2772 pcs
200W	3.1kg		/	L370*W370*H190	4.4kg	1080 pcs	2304 pcs	2688 pcs
240W	4.2kg		/	L425*W425*H190	5.6kg	780 pcs	1485 pcs	1755 pcs
300W	4.2kg		/	L425*W425*H190	5.6kg	780 pcs	1485 pcs	1755 pcs



Erp Requirement

Instant Full SDCM Starting Time Switching Cycles Life Time L70B50: Lumen Maintenance
Light Dimmable <5 <0.5s 25,000times 50,000h 119,000h 97%
L80B50:75,000h

Mounting Options

                                                           Suspending Ceiling                                             Mounting                                                     Wall Mounting



Accessories

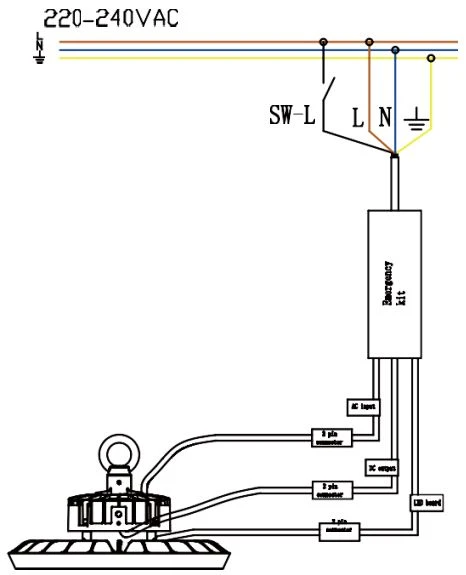

Optional Eemergency Kit



Emergency kit Spec

Power Consumption	Input Voltage	Warranty
4W	10-50Vdc / 50-300Vdc	2 years



Introduction:

As a manufacturer based in China, we take utmost pride in introducing our latest innovation, the Indoor LED High Bay Light, designed specifically to cater to the needs of merchants looking for cutting-edge, energy-efficient, and high-performing lighting solutions. Our Indoor LED High Bay Light utilizes advanced LED technology that is designed for use in commercial and industrial settings, offering brighter and more efficient lighting that reduces energy usage, maintenance costs, and chance of accidents due to its safe and high-temperature resistance nature.



Not only does it offer high-quality lighting, but it also illuminates the surroundings to provide a bright and well-lit environment, increasing safety measures and reducing the chances of human errors. Our Indoor LED High Bay Light is an eco-friendly choice that will also help in reducing your carbon footprint while keeping your indoors brilliantly illuminated.



Features and Benefits:

1. Energy-Efficient:

The Indoor LED High Bay Light is designed to be the most energy-efficient lighting solution available in the market. It consumes up to 80% less energy when compared to traditional lighting solutions, making it a cost-effective option for merchants to reduce their electricity bills.



2. High-Performance:

Our Indoor LED High Bay Light offers a high-performance output with more efficient lumen per watt ratio, making it brighter than conventional lighting solutions. It is built to withstand harsh environments, reducing the need for frequent maintenance and increasing the lifespan of the product.



3. High-Temperature Resistance:

The Indoor LED High Bay Light has a high-temperature resistance feature that makes it safe to use in industrial settings where higher temperatures are typical. This product can protect the operators from harmful accidents, providing a safer environment than conventional lighting products.



4. Eco-Friendly:

Our Indoor LED High Bay Light is designed to reduce carbon footprint, as it consumes less energy and provides a bright environment, which means fewer lights would be needed. It contains no toxic chemicals like mercury, which are commonly found in conventional lighting products. This makes it an eco-friendly product that is suitable for businesses that want to practice sustainable business operations.



5. Aesthetically Pleasing:

The Indoor LED High Bay Light is designed to be aesthetically pleasing, with a sleek design and modern look that compliments any area where it is installed. Our product has a slim and elegant design, which will add value to any interior or exterior design.



6. Customizable:

We offer customization services for our Indoor LED High Bay Light to meet your specific needs and requirements. From color temperature, lumen output, and beam angle, we can tailor our product to meet your requirements.



Usage and Applications:

The Indoor LED High Bay Light can be used in a variety of settings, including warehouses, factories, distribution centers, airports, shopping centers, and other industrial or commercial applications that require high-quality lighting. Our product can be suspended from the ceiling or mounted using brackets, making it easy to install and adapt to different environments.



Conclusion:

We invite merchants all over the world to take advantage of our Indoor LED High Bay Light to enhance their lighting needs while at the same time increasing their efficiency and profitability. Our product offers superior quality, high efficiency, and cost-saving benefits to businesses. Invest in a brighter future with our Indoor LED High Bay Light!
