Maximized Lumen Output Performance Chip For Street Light

Lumileds announced the launch of LUXEON HL4X power LED with the highest light output and light efficiency in the lighting industry. It facilitates the ability of lighting manufacturers to standardize designs around shared package baseboard specifications and demonstrates that meaningful LED efficiency improvements are still possible. LUXEON HL4X is designed for outdoor and industrial applications such as stadium lights, street lamps and high-bay fixtures where high light density, light efficiency, stability and light quality are critical, Regardless of the application or environment, its high-power dome package provides ultra-high optical output, superior light efficiency, light color stability and span life.

With a 4mm2 chip, LUXEON HL4X has a typical light output of 680lm at 700mA and a typical light efficiency of over 168 lm/W, which provides a simple and seamless upgrade to virtually any existing application for manufacturers using a similar 3535 package. The engineers also managed the optical design so that other existing optics based on the 3535 solution would be compatible with the new LED.

LUXEON HL4X Features

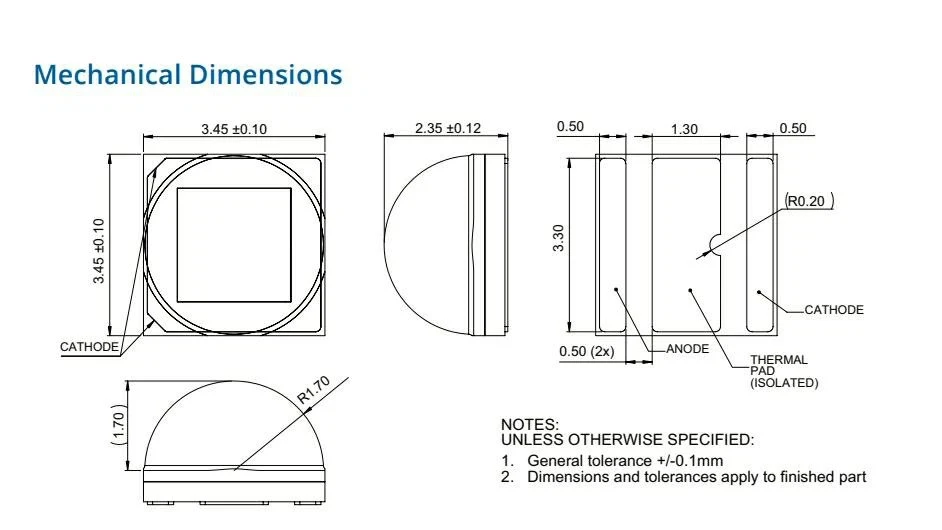

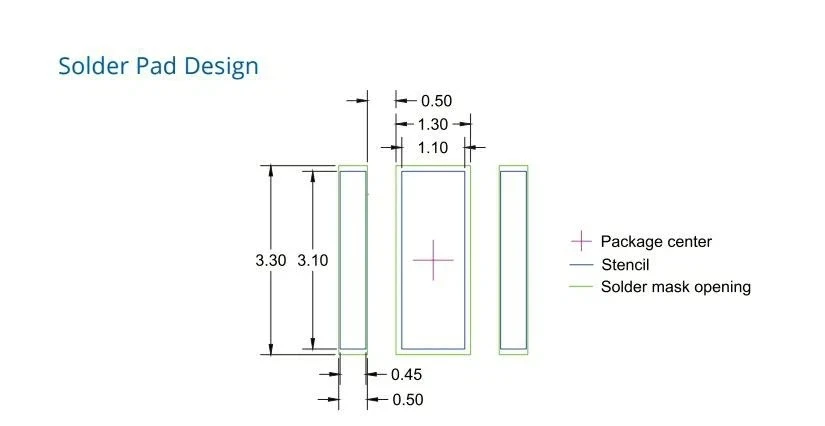

* Industry standard 3535 package with a 3-stripe footprint
* Available in 3000K, 4000K, 5000K, 5700K, 6500K color temperature options
* Available in 70,80 and 90 color rendering index options
* Maximum driving current 4A
* Optimize the intensity distribution and improve the optical efficiency of the system
* The unique dome design is optimized to maximize light output up to 130°
* Large thermal pad allows high drive currents and makes it possible to create close-packed LED clusters

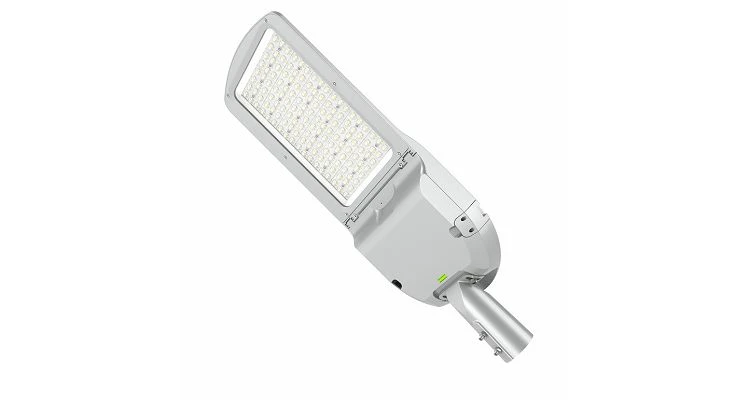

The characteristics of LUXEON HL4X make it ideal for outdoor and industrial applications like streetlights and high bay luminaires. its optical compatibility with a large number of existing 3535 optics makes it possible to directly replace lower-performing LEDs while improving system efficiency by 10lm/W or more. This is very important, and lighting factory doesn't have to make new lens tool for high lumen output light fixtures.
