Led Fishing lamp
New Superconducting Material High Power LED Lighting Seine Fishing Light

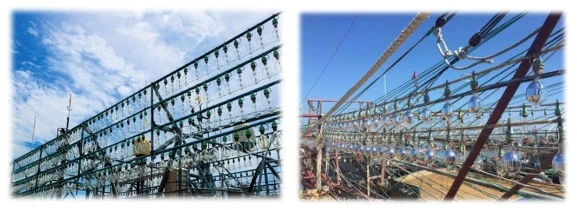

ln recent years, fuel prices have risen sharply, pelagic fishery has been greatly increased the proportion of investment in the fuel, with the traditional gas discharge high-pressure sodium lamp and metal halide light source as the purse seine light, the oil-fired generator needs super-high power to deliver electricity, its energy consumption is more than 50% of the total fuel consumption of the fishing boats. Oceangoing fishing boats rely on on-board diesel engine to provide all the electric energy for sea voyage.In traditional, they have to install several hundred lamps of 1000+ watts on the fishing boat, the energy consumption is huge, which seriously restricts the fishing boats' sailing time and catch amount.





Energy saving and environmental protection is a major trend
It can be seen that the fuel consumption cost used in fishing lights has had a significant impact on the operating efficiency of the fishing industry. Gas discharge lamps have the deficiency that most of the electric energy is converted into heat energy, the light decays quickly, the national standard warranty period is one year, the luminous efficiency is low, and the power consumption is large. The spectrum of LEDs is almost all concentrated in the visible light frequency band, and the light efficiency can reach 80% to 90%, so the power consumption is low, and under the same lighting effect, it is more energy-saving than metal halide lamps. Because the working temperature of the glass bulb of the gas discharge lamp is at least two or three hundred degrees, the invasion of rain and sea waves during work is easy to cause explosion and breakage, and the light emitted by the metal halide lamp contains a large amount of purple.







External rays and infrared radiation will cause harm to the health of fishing boat staff when fishing boats operate, and will also cause certain damage to pelagic phototaxis fish, especially young and juvenile fish whose visual system has not yet been fully developed. LED is a cold light source, without infrared and ultraviolet components, and without radiation pollution, which can effectively prevent the ecological destruction of fisheries. In addition, the filling of high-pressure sodium lamps and metal halide lamps contains mercury or other heavy metals. Damaged and discarded lamps during use will cause harm to human health and the environment, while LEDs do not produce harmful substances and waste. It is recyclable, pollution-free, mercury-free, and is a typical green light source. At the same time, LED fishing lights are used to replace traditional gas discharge fishing lights，Ship lighting energy consumption will be reduced by more than 50%.



Installation and corrosion protection
The shape and directionality of LED fishing lighting products today cause confusion in actual use. Similar to floodlights, the shape, weight and installation method of floodlights cause trouble for users. The installation of the original on-board facilities was limited, and the fishing bulb product was developed by a doctor of materials from the Chinese Academy of Sciences. The heat-conducting and heat-dissipating structure is made of new super-conductive materials. The power design is 400w, and the whole light weight is less than 2.1 kg. The E40 lamp head is directly installed to replace 1000w metal halide. On this basis, the power of this product is extended to 800w-1500w to replace the 20000w-3000w metal halide lamp, and there is no need to modify the fishing boat to install auxiliary facilities, which is safe, convenient and fast.





New superconducting material LED (bulb type) "fishing light" comparative advantage

Series high power (LED bulb type) fishing light	Traditional gold halogen lamp
The weight of the whole lamp is 2~3KG, directly replace the lamp	The luminescence mechanism of gold halide lamp causes 40% overflow astigmatism
IP66 protection level	It takes 15 minutes to start
Environmental protection and energy saving ≥50%	Life of one year, short service life, light decay is serious
Instant to full light	High power consumption cost
Specific optical design, the effective light sea level is higher than the average illumination of gold halide lamp	Gold halide lamp is prone to stroboscopic and glare, and contains infrared and ultraviolet radiation which is harmful to human physiology.
Life expectancy is three years

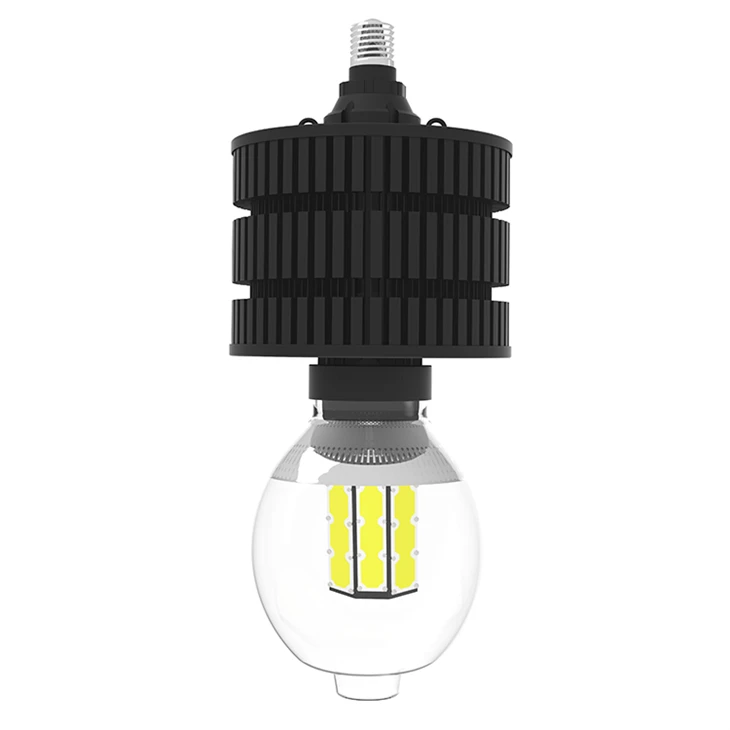

New superconducting material LED series high-power (bulb type) "fishing light" product features:
1. Light weight: this fishing light bulb weighs 2~3kg；
2. Replace the convenient：
1）Replace the energy-saving DC drive power supply；
2）No need to replace the original power supply directly used, no need to rewiring, installation and transformation, using standard E40 lamp cap, replacement only need to "LED bulb" can be directly screwed into E40 lamp holder, convenient and quick
adjustment of light surface direction, quickly and efficiently reduce the manual installation cost.
3. Energy saving: Series power 400w/480w/800w/1000w "LED bulb type" fishing light, can replace 1000w/2000w/3000w gold halide lamp, the average illumination is more than the gold halide lamp；
4. Long life: LED test temperature rise is kept below 80℃ safety data, heat dissipation structure with special corrosion resistant material surface protection treatment, with high strength corrosion resistance；
5. Safe: free from damage caused by ultraviolet and infrared rays burning skin and eyes,It does not contain mercury, sodium and other harmful substances；
6. Using LED multi-spectral characteristics and specific ℃ optical design, to meet the operation requirements of fishing boats, Clear water penetration of more than 50m, according to different species of different spectrum of light, useMulti-mode light collection with specific spectra,There is a certain choice of fish species. In the process of cluster operation, the hydrology, climate, Target fish species and other conditions, using the best light intensity and color allocation combination,Control the
illumination and color of LED fishing light group to achieve the best fish collection effect and increase the catch；
7. Glass shell: special glass shell, strong and durable, high light transmittance, surface temperature below 50℃, contains for the applicable environmental requirements of the optical design and UV erosion resistance, the glass shell rotary disassembly installation, can be easily replaced.



New superconducting material LED (light bulb type) "fishing light" advantage
1. Series high power LED bulb, compared with gold halide lamp under the same test conditions, higher than the average illumination of gold halide lamp；
2. The new superconducting material is organically combined with the heat dissipation part, and the law of heat conduction is scientifically adopted for unobstructed convection and radiation heat dissipation；
3. Light weight, the whole lamp reaches 2~3kg；
4. More fuel efficient low power high light efficiency；
5. Faster, after opening the power supply, instant to reach the full power brightness；
6. More safe environmental protection, no mercury, no UV damage to the eyes and skin；
7. More convenient installation, no need to refit, directly replace；
8. No interference THD<10%, no impact on shipboard communication and navigation equipment.



Because of its operation on the ocean surface, the protection level of the LED fish light is required to reach IP66, the shell needs to be eroded by salt spray and sea water for a long time, and the corrosion resistance of the heat sink is a big problem, so the structure of the LED fish light body is required. The shell material is corrosion-resistant, and the surface heat dissipation structure is treated with special anti-corrosion materials, which has high strength and corrosion resistance. The product is made of a closed heat conduction structure as a whole, and the heat sink heat dissipation material has undergone special surface treatment, which is the first in the industry and meets the safety of traditional fishing lights. requirements, convenient and reliable use.



Important Concerns

After in-depth on-the-spot investigation and the actual investigation of the fishermen brothers, the fishermen focus on the "catch quantity" to measure the performance of the light to collect fish. Unfortunately, many companies have never gotten out of the chaos, not only the installation method is restricted, but the key is "optical" "Environmental application", some people without lighting experience use floodlights, floodlights, or even "illuminators" to replace metal halide lamps. It is believed that 95% of fishing lights on the market are not suitable for use. Recognized by the fishermen, the fishermen brothers even said that the "color change" of LED fishing lights was not accepted, which tarnished the development of the LED emerging industry and hurt the business owners, hoping to attract attention.

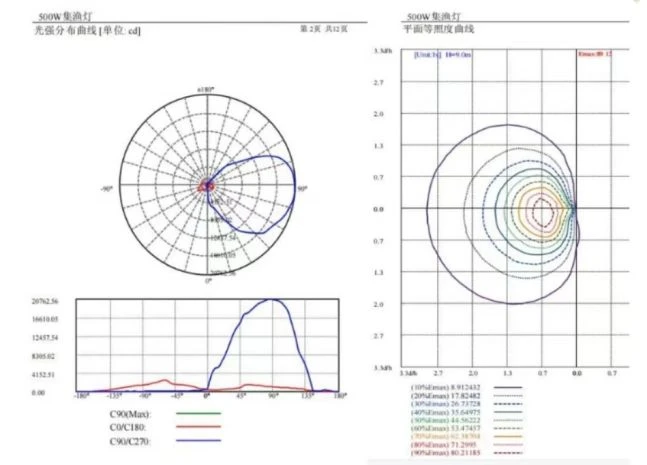

Parameter Contrast

Measured parameters：U:220.36V I:1.8723A P:402.65W PF:0.9795 Freq:50HZ Measured light flux：59442.6×1lm
Light source data		light efficiency：147.63lm/W
Lamp name	Fishing lamp	Peak light insnteity(cd)	33603
nominal power(w)	400	effective efficiency(%)	89.3
rated voltage(v)	220	useful luminous flux(lm)	53075
nominal light flux(lm)	59442.6	luminaire efficiency(%)	100.0
Number of light sources in lamps(pcs)	1	total light flux(lm)	59443
Measured voltage(V)	220	50%beam angle(H,V)	46°,283°

10 Meters: counterpoise illumination 30lx, maximal illumination 175.5lx



Measured parameters：U:373.33V I:2.7549A P:1020.7W PF:0.9924 Freq:50HZ Measured light flux：116066×1lm
Light source data		light efficiency：113.71lm/w
Lamp name	gold halogen lamp	Peak light insnteity(cd)	15506	S/MH(C0/180)	4.11
nominal power(w)	1000	Lamp efficiency(%)	100.0	S/MH(C90/270)	4.06
rated voltage(v)	380	total light flux(lm)	116066	η UP,DN(C0-180)	18.8,29.8
nominal light flux(lm)	116066	CIE classify	Half value	η UP,DN(C180-360)	19.6,31.7
Number of light sources in lamps(pcs)	1	Light flux ratio of upshot(%)	38.4	CIBSE SHR NOM	1.25
Measured voltage(V)	380	downbeam light flux ratio(%)	61.6	CIBSE SHR MAX	1.35

10 Meters: counterpoise illumination 12.15lx, maximal illumination 85.88lx



Controlling the drive system

The LED lamp drive circuit adopts DC drive, which can be directly powered by the existing line of the fishing boat, or even directly installed and used without replacing the ballast of the gas discharge lamp.



Industrialization prospect analysis of new LED fishing lights

The author has gathered a number of pioneers and martyrs in research and production, combined with his years of dedicated experience in lighting practice, exploration, and application of the replacement of fish light bulbs developed by the technology of sticking to the ground, which has been favored by fishermen, has strong market competitiveness, and will enter the market. Large-scale production and special market segments to promote sales. It is a wise move to seize the opportunity of segmenting the market.

According to incomplete statistics, the domestic and foreign markets have huge business opportunities, attracting many enterprises to seek development and production. The unique development and application of this product will promote my country's ocean-going light fishing industry. The development of the market has broad market prospects, and it will also bring significant social and economic benefits. Energy conservation and environmental protection is in line with the national policy of energy conservation and emission reduction and the direction of industrial development. It is an important measure to change the business pattern of enterprises and ensure the survival and sustainable development of enterprises.

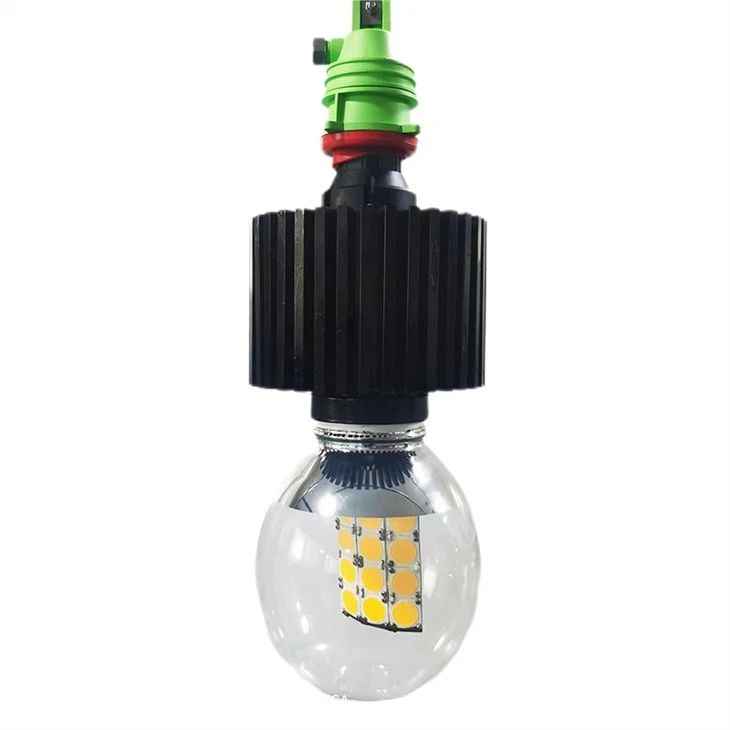

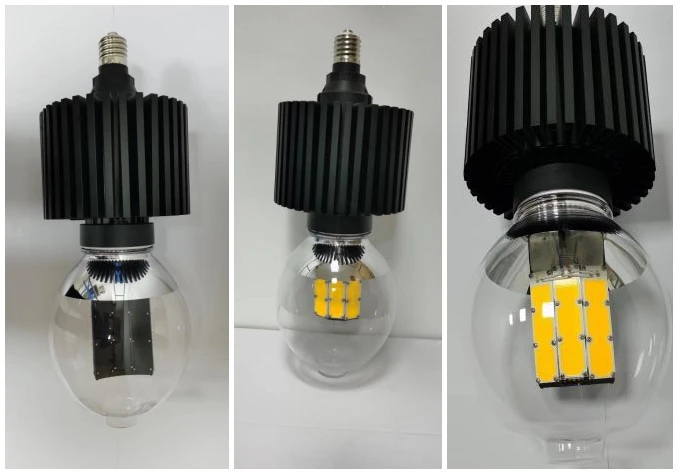

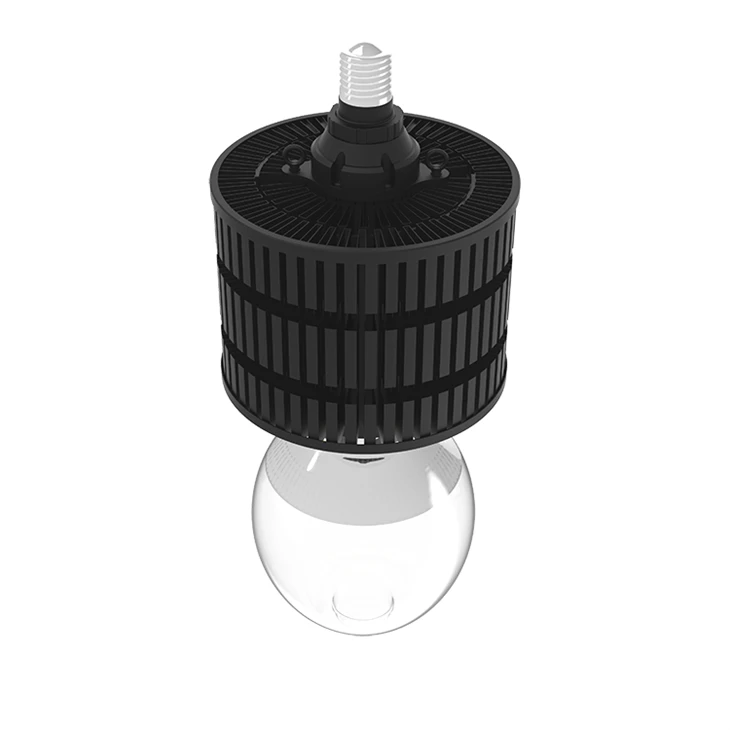

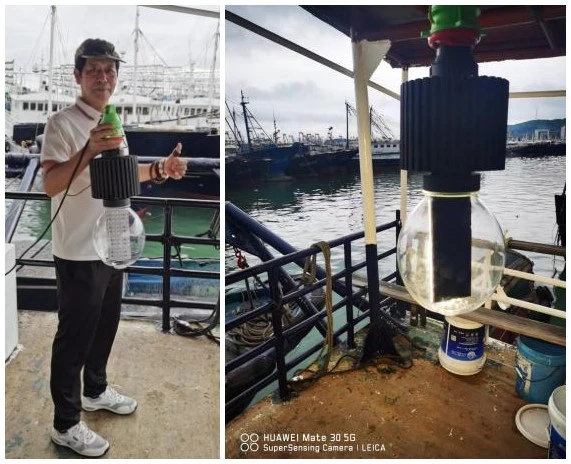

Lamp pictures





Why choose us?

• We manufacture Fishing Lamp products to the highest standard at a competitive price.
• The company adheres to scientific development, continuously adjusts and optimizes the industrial structure, actively promotes technological progress, innovates management mechanisms, optimizes the management system, builds the core competitiveness of the company, and repays the society, investors, and all employees with excellent performance!
• As a professional manufacturer, we produce Fishing Lamp products with excellent quality and price.
• We always take a vigorous and energetic attitude, with dedication to our work and loyalty to our cause, and dare to explore and innovate.
• Our factory produces Fishing Lamp products of superior quality and delivers excellent services.
• Our company always adhere to the spirit of seeking truth, ensure Led Fishing Lamp quality, reasonable price and integrity as the fundamental business purpose, facing the market.
• Our Fishing Lamp products are of the highest quality and delivered with professional services.
• We will continue to conduct scientific research and innovation, as well as providing our clients with high-quality services.
• Our company produces Fishing Lamp products with superior quality and delivers professional services.
• At the same time, we sincerely hope to carry out extensive cooperation in academic, business and other fields with friends from all walks of life at home and abroad, so as to develop a grand vision together!
