Baseball Stadium Lights

Features
1. Adjustable projecting direction;
2. With die-casting ADC-12 material, the new Agility flood light has a superb heat dissipation and long lifespan;
3. VDE/UL listed 3*1.0mm² rubber cable with cold-pressed terminal;
4. With various optic system, it is suitable for different applications;
5. Wide range of lumen output package from 11,000lm up to 130,500lm,50% less power consumption than traditional light sources;
6. The combinations of different drivers, mounting brackets.modules and baffles allow the quickly assembly at customers' side as needed.

Send Inquiry

Product Introduction

Features

1. Adjustable projecting direction;

2. With die-casting ADC-12 material, the new Agility flood light has a superb heat dissipation and long lifespan;

3. VDE/UL listed 3*1.0mm² rubber cable with cold-pressed terminal;

4. With various optic system, it is suitable for different applications;

5. Wide range of lumen output package from 11,000lm up to 130,500lm,50% less power consumption than traditional light sources;

6. The combinations of different drivers, mounting brackets.modules and baffles allow the quickly assembly at customers' side as needed.

Product Data

General Information
LED Type	Osram/ Lumileds /Tiandian
Light Efficacy	100lm/W, 105lm/W, 110lm/W,115lm/W,120lm/W, 130lm/W, 135lm/W,140lm/W,145lm/W
CCT	4000K/5000K/5700K
CRI	70/80
LED Lifespan	Light Distribution Curve: S06 (30deg)153,000h@L70B50;96,000h@L80B50;46,000h@L90B50
LED Lifespan	Other light distribution curves:157,000h@L70B50;99,000h@L80B50;47,000h@L90B50
Power Supply	Philips / Sosen
Type of Driver	On/Off and 0V-10V and Dali optional
Driver efficiency	≥0.93
Protection class IEC	Class I
Warrany	5 Years Warrany
Certificate	CE, ENEC, RoHS
Application Conditions
Operating Temperature	-30°C to 45°C
Approval and Application
Ingress protection code	IP66
Mech. impact protection code	IK08
Surge protection	6KV
Operating and Electrical
Input voltage	220-240Vac
Output voltage	-
Input Frequency	50/60Hz
Inrush current	-
Power Facto	≥0.95
THD	<20%
Mechanical and Housing
Structure Material	Die casting ADC12
Finish Material	Powder coated
Lens Material	(PC)Polycarbonate
Glass Material	-
Fixture Color	Matte black
Mouting Option	Suspended/Wall Mounted
Controls and Dimming
Dimmable	Yes
Intelligent Control	1-10V Dimming/ 0-10V Dimming/ DALI

Applications

Airports、Harbors、Squares、Large recreational sports facilities、Industrial areas、Outdoor car parking

Combinations Options

Drawing

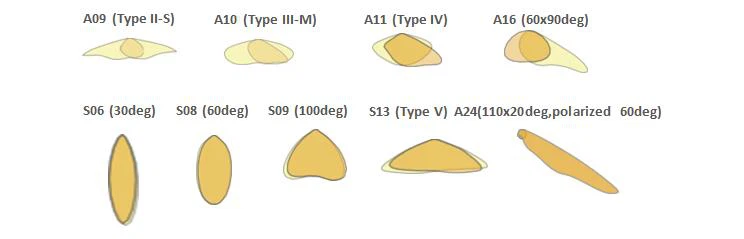

Light Distribution Curve

Product Parameter

Model Number	Power Consumption (±10%)	Input voltage	CRI	Light Efficiency	Luminous Flux (lm) (±10%） @4000K @5000K @5700K	Beam Angle	Correlated Color Temperaure	LED Tpye	Drvier Tpye
WMD-VX100-XXXN-HM3	100W	220-240VAC	70	145lm/W	14500lm 14500lm 14500lm	S13:TypeV S08:(60deg) S09:(100deg)	4000K 5000K 5700K	Tiandian 5050	Philips / Sosen
WMD-VX200-XXXN-HM3	200W				29000lm 29000lm 29000lm
WMD-VX300-XXXN-HM3	300W				43500lm 43500lm 43500lm
WMD-VX400-XXXN-HM3	400W				58000lm 58000lm 58000lm
WMD-VX480-XXXN-HM3	480W				69600lm 69600lm 69600lm
WMD-VX600-XXXN-HM3	600W				87000lm 87000lm 87000lm
WMD-VX800-XXXN-HM3	800W				116000lm 116000lm 116000lm
WMD-VX900-XXXN-HM3	900W				130500lm 130500lm 130500lm

Model Number	Power Consumption (±10%)	Input voltage	CRI	Light Efficiency	Luminous Flux (lm) (±10%） @4000K @5000K @5700K	Beam Angle	Correlated Color Temperaure	LED Tpye	Drvier Tpye
WMD-VX100-XXXN-HM3	100W	220-240VAC	70	140lm/W	14000lm 14000lm 14000lm	A09：TypeII-S A10：TypeIII-M A11：TypeIV A16:(60*90deg)	4000K 5000K 5700K	Tiandian 5050	Philips / Sosen
WMD-VX200-XXXN-HM3	200W				28000lm 28000lm 28000lm
WMD-VX300-XXXN-HM3	300W				42000lm 42000lm 42000lm
WMD-VX400-XXXN-HM3	400W				56000lm 56000lm 56000lm
WMD-VX480-XXXN-HM3	480W				67200lm 67200lm 67200lm
WMD-VX600-XXXN-HM3	600W				84000lm 84000lm 84000lm
WMD-VX800-XXXN-HM3	800W				112000lm 112000lm 112000lm
WMD-VX900-XXXN-HM3	900W				126000lm 126000lm 126000lm

Model Number	Power Consumption (±10%)	Input voltage	CRI	Light Efficiency	Luminous Flux (lm) (±10%） @4000K @5000K @5700K	Beam Angle	Correlated Color Temperaure	LED Tpye	Drvier Tpye
WMD-VX100-XXXN-FM3	100W	220-240VAC	80	130lm/W	13000lm 13000lm 13000lm	A09: TypeII-S A10: TypeIII-M A11: TypeIV A16:(60*90deg)	4000K 5000K 5700K	Tiandian 5050	Philips / Sosen
WMD-VX200-XXXN-FM3	200W				26000lm 26000lm 26000lm
WMD-VX300-XXXN-FM3	300W				39000lm 39000lm 39000lm
WMD-VX400-XXXN-FM3	400W				52000lm 52000lm 52000lm
WMD-VX480-XXXN-FM3	480W				62400lm 62400lm 62400lm
WMD-VX600-XXXN-FM3	600W				78000lm 78000lm 78000lm
WMD-VX800-XXXN-FM3	800W				104000lm 104000lm 104000lm
WMD-VX900-XXXN-FM3	900W				117000lm 117000lm 117000lm

Model Number	Power Consumption (±10%)	Input voltage	CRI	Light Efficiency	Luminous Flux (lm) (±10%） @4000K @5000K @5700K	Beam Angle	Correlated Color Temperaure	LED Tpye	Drvier Tpye
WMD-VX100-XXXN-FM3	100W	220-240VAC	80	135lm/W	13500lm 13500lm 13500lm	S13：TypeV S08:(60deg) S09：(100deg)	4000K 5000K 5700K	Tiandian 5050	Philips / Sosen
WMD-VX200-XXXN-FM3	200W				27000lm 27000lm 27000lm
WMD-VX300-XXXN-FM3	300W				40500lm 40500lm 40500lm
WMD-VX400-XXXN-FM3	400W				54000lm 54000lm 54000lm
WMD-VX480-XXXN-FM3	480W				64800lm 64800lm 64800lm
WMD-VX600-XXXN-FM3	600W				81000lm 81000lm 81000lm
WMD-VX800-XXXN-FM3	800W				108000lm 108000lm 108000lm
WMD-VX900-XXXN-FM3	900W				121500lm 121500lm 121500lm

Model Number	Power Consumption (±10%)	Input voltage	CRI	Light Efficiency	Luminous Flux (lm) (±10%） @4000K @5000K @5700K	Beam Angle	Correlated Color Temperaure	LED Tpye	Drvier Tpye
WMD-VX100-XXXN-HM3	100W	220-240VAC	70	120lm/W	12000lm 12000lm 12000lm	S06 ：(30deg)	4000K 5000K 5700K	Lumileds 3030	Philips
WMD-VX200-XXXN-HM3	200W				24000lm 24000lm 24000lm
WMD-VX300-XXXN-HM3	300W				36000lm 36000lm 36000lm
WMD-VX400-XXXN-HM3	400W				48000lm 48000lm 48000lm
WMD-VX600-XXXN-HM3	600W				72000lm 72000lm 72000lm
WMD-VX800-XXXN-HM3	800W				96000lm 96000lm 96000lm
WMD-VX900-XXXN-HM3	900W				108000lm 108000lm 108000lm
Model Number	Power Consumption (±10%)	Input voltage	CRI	Light Efficiency	Luminous Flux (lm) (±10%） @4000K @5000K @5700K	Beam Angle	Correlated Color Temperaure	LED Tpye	Drvier Tpye
WMD-VX100-XXXN-HM3	100W	220-240VAC	70	120lm/W	12000lm 12000lm 12000lm	S06 ：(30deg)	4000K 5000K 5700K	Lumileds 3030	Sosen
WMD-VX200-XXXN-HM3	200W				24000lm 24000lm 24000lm
WMD-VX300-XXXN-HM3	300W				36000lm 36000lm 36000lm
WMD-VX400-XXXN-HM3	400W				48000lm 48000lm 48000lm
WMD-VX600-XXXN-HM3	600W				72000lm 72000lm 72000lm
WMD-VX800-XXXN-HM3	800W				96000lm 96000lm 96000lm
WMD-VX900-XXXN-HM3	900W				108000lm 108000lm 108000lm
Model Number	Power Consumption (±10%)	Input voltage	CRI	Light Efficiency	Luminous Flux (lm) (±10%） @4000K @5000K @5700K	Beam Angle	Correlated Color Temperaure	LED Tpye	Drvier Tpye
WMD-VX100-XXXN-FM3	100W	220-240VAC	80	110lm/W	11000lm 11000lm 11000lm	S06 ：(30deg)	4000K 5000K 5700K	Lumileds 3030	Philips
WMD-VX200-XXXN-FM3	200W				22000lm 22000lm 22000lm
WMD-VX300-XXXN-FM3	300W				33000lm 33000lm 33000lm
WMD-VX400-XXXN-FM3	400W				44000lm 44000lm 44000lm
WMD-VX600-XXXN-FM3	600W				66000lm 66000lm 66000lm
WMD-VX800-XXXN-FM3	800W				88000lm 88000lm 88000lm
WMD-VX900-XXXN-FM3	900W				99000lm 99000lm 99000lm

Model Number	Power Consumption (±10%)	Input voltage	CRI	Light Efficiency	Luminous Flux (lm) (±10%） @4000K @5000K @5700K	Beam Angle	Correlated Color Temperaure	LED Tpye	Drvier Tpye
WMD-VX100-XXXN-HM3	100W	220-240VAC	70	115lm/W	11500lm 11500lm 11500lm	A24:(110x20deg, polarized 60deg)	4000K 5000K 5700K	Osram P8	Sosen
WMD-VX200-XXXN-HM3	200W				23000lm 23000lm 23000lm
WMD-VX300-XXXN-HM3	300W				34500lm 34500lm 34500lm
WMD-VX400-XXXN-HM3	400W				46000lm 46000lm 46000lm
WMD-VX480-XXXN-HM3	480W				55200lm 55200lm 55200lm
WMD-VX600-XXXN-HM3	600W				69000lm 69000lm 69000lm
WMD-VX800-XXXN-HM3	800W				92000lm 92000lm 92000lm
WMD-VX900-XXXN-HM3	900W				103500lm 103500lm 103500lm

Model Number	Power Consumption (±10%)	Input voltage	CRI	Light Efficiency	Luminous Flux (lm) (±10%） @4000K @5000K @5700K	Beam Angle	Correlated Color Temperaure	LED Tpye	Drvier Tpye
WMD-VX100-XXXN-FM3	100W	220-240VAC	80	110lm/W	11000lm 11000lm 11000lm	S06 ：(30deg)	4000K 5000K 5700K	Lumileds 3030	Sosen
WMD-VX200-XXXN-FM3	200W				22000lm 22000lm 22000lm
WMD-VX300-XXXN-FM3	300W				33000lm 33000lm 33000lm
WMD-VX400-XXXN-FM3	400W				44000lm 44000lm 44000lm
WMD-VX600-XXXN-FM3	600W				66000lm 66000lm 66000lm
WMD-VX800-XXXN-FM3	800W				88000lm 88000lm 88000lm
WMD-VX900-XXXN-FM3	900W				99000lm 99000lm 99000lm

Model Number	Power Consumption (±10%)	Input voltage	CRI	Light Efficiency	Luminous Flux (lm) (±10%） @4000K @5000K @5700K	Beam Angle	Correlated Color Temperaure	LED Tpye	Drvier Tpye
WMD-VX100-XXXN-HM3	100W	220-240VAC	70	110lm/W	11000lm 11000lm 11000lm	A24:(110x20deg, polarized 60deg)	4000K 5000K 5700K	Osram P8	Philips
WMD-VX200-XXXN-HM3	200W				22000lm 22000lm 22000lm
WMD-VX300-XXXN-HM3	300W				33000lm 33000lm 33000lm
WMD-VX400-XXXN-HM3	400W				44000lm 44000lm 44000lm
WMD-VX480-XXXN-HM3	480W				52800lm 52800lm 52800lm
WMD-VX600-XXXN-HM3	600W				66000lm 66000lm 66000lm
WMD-VX800-XXXN-HM3	800W				88000lm 88000lm 88000lm
WMD-VX900-XXXN-HM3	900W				99000lm 99000lm 99000lm

Model Number	Power Consumption (±10%)	Input voltage	CRI	Light Efficiency	Luminous Flux (lm) (±10%） @4000K @5000K @5700K	Beam Angle	Correlated Color Temperaure	LED Tpye	Drvier Tpye
WMD-VX100-XXXN-FM3	100W	220-240VAC	80	105lm/W	10500lm 10500lm 10500lm	A24:(110x20deg, polarized 60deg)	4000K 5000K 5700K	Osram P8	Sosen
WMD-VX200-XXXN-FM3	200W				21000lm 21000lm 21000lm
WMD-VX300-XXXN-FM3	300W				31500lm 31500lm 31500lm
WMD-VX400-XXXN-FM3	400W				42000lm 42000lm 42000lm
WMD-VX480-XXXN-FM3	480W				55200lm 55200lm 55200lm
WMD-VX600-XXXN-FM3	600W				63000lm 63000lm 63000lm
WMD-VX800-XXXN-FM3	800W				84000lm 84000lm 84000lm
WMD-VX900-XXXN-FM3	900W				94500lm 94500lm 94500lm

Model Number	Power Consumption (±10%)	Input voltage	CRI	Light Efficiency	Luminous Flux (lm) (±10%） @4000K @5000K @5700K	Beam Angle	Correlated Color Temperaure	LED Tpye	Drvier Tpye
FK-VX100-XXXN-FM3	100W	220-240VAC	70	100lm/W	10000lm 10000lm 10000lm	A24:(110x20deg polarized 60deg)	4000K 5000K 5700K	Osram P8	Philips
FK-VX200-XXXN-FM3	200W				20000lm 20000lm 20000lm
FK-VX300-XXXN-FM3	300W				30000lm 30000lm 30000lm
FK-VX400-XXXN-FM3	400W				40000lm 40000lm 40000lm
FK-VX480-XXXN-FM3	480W				48000lm 48000lm 48000lm
FK-VX600-XXXN-FM3	600W				60000lm 60000lm 60000lm
FK-VX800-XXXN-FM3	800W				80000lm 80000lm 80000lm
FK-VX900-XXXN-FM3	900W				90000lm 90000lm 90000lm

Package

Item.	Luminaire Net Weight	Packing Info	Dimmension (inner box) (mm)	Dimmension (outer carton) (mm)	GW (Outer carton)	20ft GP	40ft GP	40 HQ
100W	2.8kg	1pcs per inner box 4 inner box per outer carton	L298W145H94	L400W365H315	12.5kg	2352pcs	4704pcs	5488pcs
200W	4.5kg			L400W350H200	5.2kg	864pcs	1788pcs	2098pcs
300W	6.7kg			L495W420H220	7.5kg	587pcs	1223pcs	1338pcs
400W	9kg			L685W350H200	10.5kg	516pcs	1074pcs	1271pcs
480W	9.5kg	1pcs per carton		L685W350H200	11kg	516pcs	1074pcs	1271pcs
600W	13.5kg			L705W495H220	15.3kg	312pcs	669pcs	744pcs
800W	20.1kg			L690W610H235	22.5kg	280pcs	580pcs	680pcs
900W	20.2kg			L1015W505H260	30.5kg	210pcs	420pcs	510pcs

Erp Requirement

Instant Full SDCM Starting Time Switching Cycles Life Time L70B50: 153000h Lumen Maintenance

Light Dimmable <5 <0.5s 25,000times 50,000h L80B50: 96000h 97%

L90B50: 46000h

Horizontal Light Distribution Test

Intelligent Life Tester

Strobe Test

Integrating Sphere Spectrometer

3600h Life Time Test

Accessories

Why choose us?

We are committed to sustainable manufacturing practices to reduce our carbon footprint.
We can guarantee that our Baseball Stadium Lights has the highest price/performance ratio among the same class in the domestic and international markets.
Our Stadium Light products are manufactured with the highest quality materials and standards.
In the process of development, we are actively committed to researching and developing new technologies and new products, and constantly pursuing high quality.
We have a strict quality control process in place, ensuring all products meet our high standards before they are delivered to clients.
Our company has always adhered to the business tenet of 'brand management, reputation and business' and the quality policy of 'today's quality, tomorrow's market', creating a corporate culture of 'performance-oriented, building a learning enterprise' and pursuing the sustainable development of the enterprise.
Our manufacturing capacity is scalable, allowing us to take on large orders without compromising on quality or delivery times.
In the increasingly competitive market, we are willing to build a bridge of friendship and create a good trade atmosphere together.
Our team works tirelessly to ensure our clients' orders are fulfilled on time, every time.
Our company keeps learning and tracking the world's advanced technology and production process to enhance our core competitiveness.

Are you looking for an unbeatable range of high-quality Baseball Stadium Lights for your sports field? Our sports lighting solutions are designed to enhance the experience of both the players and the spectators. We pride ourselves on delivering a world-class product that is durable, efficient, and cost-effective. In this product introduction, we will cover everything you need to know about our Baseball Stadium Lights, from its features, benefits, and how it stands out from the competition.

Product Features:

1. Durable Build Quality: Our Baseball Stadium Lights are designed to withstand harsh weather conditions, including heavy rain, snow, and dust. They are built to last, featuring an aluminum housing that is rust and corrosion-resistant.

2. High Efficiency: Our LED sports lights consume significantly less energy when compared to traditional HID lights. They provide an outstanding lighting experience, making your sports field bright, safe and visible.

3. Easy Installation: Our sports light fixtures come with a special mounting bracket that makes installation easy. You can customize the angle of the light to ensure that light is being distributed evenly across the sports field.

4. Dimmable: Our Baseball Stadium Lights are fully dimmable, meaning that you have complete control over the light output. This feature is especially useful if you want to reduce the energy consumption during off-peak hours.

5. UL Certified: Our sports lights conform to the safety standards set by Underwriters Laboratories (UL). This certification ensures that our products are safe to use and meet the quality standards set by the industry.

Benefits of our Baseball Stadium Lights:

1. Improved Visibility: Our LED sports lights provide excellent visibility for both players and spectators. This feature is particularly important for night games or matches played in low light conditions.

2. Reduced Electricity Costs: Our sports lights consume significantly less energy when compared to traditional HID lights. This means that you save money on electricity bills and can reinvest the savings elsewhere.

3. Eco-Friendly: Our LED sports lights are environmentally friendly and produce less CO2 emissions. This is because they consume less energy and are made of recyclable material.

4. Low Maintenance: Our Baseball Stadium Lights require little to no maintenance. This is due to their durable build quality and long lifespan. Once installed, they last many years without needing to be replaced or repaired.

Why Choose Us?

Our Baseball Stadium Lights are the ideal solution for anyone who wants high-quality sports lighting that is durable, efficient, and cost-effective. Here are some of the reasons why you should choose us:

1. Professional Expertise: We have many years of experience designing and manufacturing sports lighting solutions. Our products are designed to meet the specific needs of sports clubs and stadiums.

2. Competitive Pricing: Our products are manufactured in-house in China, which means we can offer competitive pricing to our clients. You get high-quality sports lighting solutions at an affordable price.

3. Customizable Products: We are happy to work with our clients to come up with customized solutions that meet their specific needs. This includes custom color temperatures, beam angles, and wattages.

4. Great Customer Service: At our company, we believe in providing great customer service. Our expert team is always standing by to answer any questions or concerns that you may have.

Conclusion:

Our Baseball Stadium Lights are an excellent choice for sports clubs and stadiums looking for an affordable, efficient, and eco-friendly sports lighting solution. Our products are designed to provide excellent visibility, reduce electricity costs, and require little to no maintenance. With our competitive pricing and great customer service, we are the go-to choice for anyone looking for high-quality Sports lighting solutions. Order your Baseball Stadium Lights today, and experience the difference that our products can make.
