Major components

Housing: ADC12 Aluminum heat sink, outdoor powder coating finish, ideal waterproof design.

Optical lens: high light transmittance>95% PC lens, fancy appearance, TYPEⅡ/TYPEⅢ/TYPEⅣ etc various lens for optional.

LED: LUMILEDS(LED)155LM/W: CRI>80, Low degradation, applied adhesive on the LED soldering position on PCB for protection.

LED Driver: 100-277v or 277-480v, 50/60hz, PF≧0.9; HTD<20%, with stable and reliable quatity.

Transport

In the process of transportation, the lamps should be prevented from violent vibration, impact and keep the package intact. In the process of transportation, there should be protective measures to prevent rain and snow



Storage

After packing, lamps and lanterns should be stored in a warehouse with ventilated, dry and non-corrosive media. There should be no harmful gases and corrosive chemicals in the warehouse. Lamps should not be heavy, and there should be no strong mechanical vibration, impact and magnetic field.

Through the advantages of fast and reliable installation, lower cost and significantly improve the household

Visibility features of the outer space, thus achieving superior lighting performance.

Sealed, dust-proof and waterproof, effective in the face of outdoor rain, cold and hot weather

Flexible installation, easy maintenance, reduce labor costs



Characteristics

AC input voltage	100-277V，50/60Hz
Factor of power	>0.95
THD %	< 15%
Whole light effect	130lm/W、150lm/W、170lm/W
Lamp color temperature (CCT)	4000K、5000K、6500K
Luminance Indication (CRI)	>70
External lightning protection level	10kV standard (20kV optional)
Control switch	Time control, light control
Intelligent lighting communication signal	PLC、NB、LORA
Height of installation	6m To 12m
Distance between lamps	24m To 48m
Operating temperature	-40C~+50°C
Storage temperature	-40C~+50°C
LED Brand	Philips, Tiandian
LED light fading	L70 > 100000hrs
Area of projection	0.156m3
IP waterproof class	IP66
IK Anti-impact rating	IK08
Class of luminaires	Class I
Shell spray color	7040 Warm white
Light pole pipe diameter	Φ25-Φ32 / Φ42-Φ48 / Φ52-Φ62
Size of appearance (mm)	541×289×100
Size of package (mm)	585×345×268 (2pcs/CTN)
Main materials	ADC12 die cast aluminum + toughened glass
Standard of certification	CQC、UL8800、UL1598、DLC、CE
Quality assurance	5 years (7 years optional)

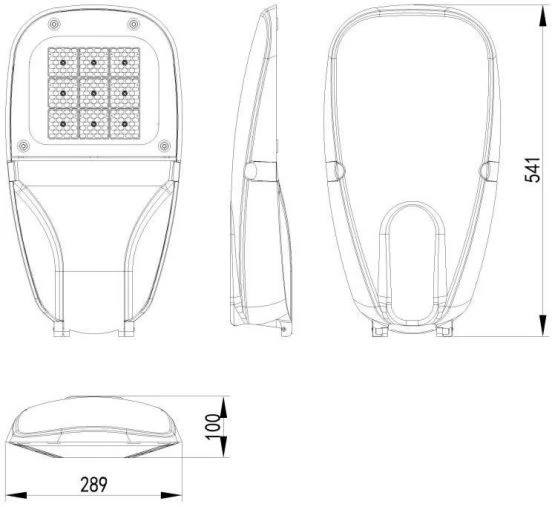

Size

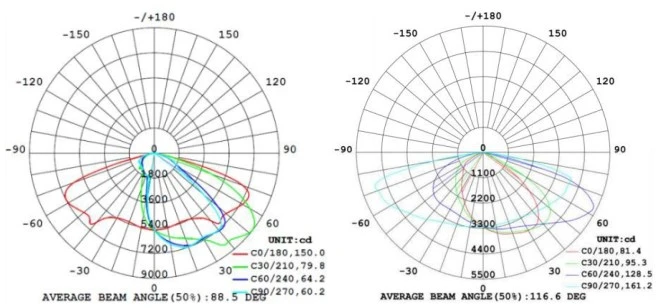

Light Distribution Curve

Model	Power（w）	Luminaire light flux （lm）	LED model	LED number	Height of installation	Maximum distance between	The net weight	Gross weight	PCS/CTN
WMDSL001C120	120	15600	3030	108pcs	6~12m	<48m	5.3kg	11.5kg	2pcs



Installation Diagram

	Warning - High pressure hazard, installation, must be professional installation
	The light source, power supply, fittings, etc. contained in this lamp can only be replaced by the manufacturer



Optional Accessories



Why choose us?

• We offer customized solutions for every project, ensuring our clients receive products that are specifically tailored to their needs.
• With the most advanced manufacturing equipment in the world, we provide fast turnaround while meeting your exact specifications.
• Our products are designed to meet the demands of any environment, from urban to rural settings.
• In the selection of talents, we build an internal platform for talent flow, create an internal talent market, and open up career development channels for employees.
• Our products are rigorously tested to ensure they meet all relevant safety and performance standards.
• We respect every employee, create space for personal growth and stimulate innovation.
• We offer affordable prices without sacrificing quality or reliability.
• We thinks what prospects think, the urgency of urgency to act from the interests of a client position of theory, allowing for greater high-quality, reduced processing costs, rates are much more reasonable, won the new and previous consumers the support and affirmation for Single Arm Street Light.
• We use advanced technology in our manufacturing processes to ensure precision and accuracy.
• We give full play to the role of internal management in promoting corporate compliance operations and promoting corporate culture construction.

Single Arm Street Light – An Energy-Efficient Lighting Solution for Urban Areas



As the world's population grows, the demand for energy-efficient lighting solutions in urban areas has never been greater. The single arm street light is an ideal solution for lighting of city streets, roads, highways, and other public areas.



At our manufacturing facility in China, we have developed a range of single arm street lights that are designed to deliver superior performance and energy efficiency at a cost-effective price. Our products are made from high-quality materials and equipped with the latest LED technology to provide excellent illumination with minimal power consumption.



Here are some aspects that make our single arm street lights stand out from the competition:



1. Energy Efficiency and Sustainability

Our single arm street light is an energy-efficient solution that can help cities reduce their energy consumption and carbon footprint. By using LED technology, our single arm street lights consume up to 80% less energy than traditional street lights. This translates into lower maintenance costs and reduced energy bills for municipalities.



Not only that, but our single arm street lights use materials that are recyclable and eco-friendly. This means they are sustainable and contribute to a greener and healthier environment for everyone.



2. High Performance and Durability

Our single arm street lights are built to perform in the harshest outdoor conditions. They are designed to withstand extreme weather conditions such as high winds, rain, and snow. The LED chips used in our products have a longer lifespan compared to traditional halogen lights, meaning you will not have to frequently replace bulbs. This ensures that our street lights will continue to provide optimal performance for years to come.



3. Easy Installation and Maintenance

Our single arm street lights are designed for easy installation. They come with mounting brackets that make it easy to install them on existing poles or pedestals. The process of installation is straightforward and, in most cases, does not require an electrician. Besides, our products are easy to maintain, and it only takes a few minutes to replace a faulty or broken component.



4. Customization

We understand that different cities and municipalities have different lighting needs. That is why we offer customized solutions to meet your specific lighting requirements. Whether you need street lights with high or low lumen output, narrow or wide bean angle, our comprehensive range of single arm street lights have got you covered.



5. Competitive Pricing

We understand the importance of managing your budget while still aiming for the best quality products. Our single arm street lights are priced competitively, which makes them an affordable alternative to traditional street lights. By choosing our products, you will benefit from energy-efficient lighting solutions that will significantly lower your operational costs while providing well-lit public areas.



Conclusion

Our single arm street lights are an excellent example of quality, cost efficiency, and eco-friendliness, making them an ideal lighting solution for urban areas requiring energy-efficient lighting. Our manufacturing expertise allows us to deliver superior products that meet the highest industry standards. If you are looking for an innovative and cost-effective street lighting solution, our single arm street lights are what you need. Contact us today and let our experts help you choose the perfect solution for your lighting needs.
