12w Integrated Solar LED Street Light





12w integrated solar led street light

Solar Moon Light

Come from nature, Light up the future

Modern fashion design

Open the generation of solar street light

Intelligent control



Core Technologies

Unique Integration Design

Easy to transport, install and maintain



Rotating Solar Panel

Solar Panel can be adjusted in vertical and horizontal direction



Power control

Judge recent climate to plan the reasonable discharge power



Microwave Motion Sensor

Radar controlled, called Doppler effect. More intelligent, energy-saving



Control Mode Management

6 work modes for choice



LiFePO4 Lithium Battery

2000times cycle charge and discharge, 8 years lifespan



Fashionable Design

Moon light shape design, beautiful and fashionable



Technical Parameter

Type		WMDSL007012	WMDSL007008
Panel	Power	40W/4.5V	20W/5V
	Material	Mono crystalline silicon	Mono crystalline silicon
	Solar cell efficiency	19-20%	17-18%
LiFePO4 battery	Capacity	105WH	52WH
	Charge cycle times	2000 times	2000 times
	Luminous flux	1500-1800lm	1200-1440lm
	Light output	12W	8W
	LED qty	30pcs	24pcs
	LED chip	Bridgelux 160lm/w
	Color temperature	3000-7500K
	CRI	≥70Ra
	Material of lamp head	Die-cast aluminum
	Lifespan
System	Light control voltage	1V
	Lighting time(full charged)	2-3 rainy days
	Operation temperature	-20℃~60℃
Installation	Top diameter of pole	60mm
	Mounting height	3-5m
	Installation spacing	8-10m

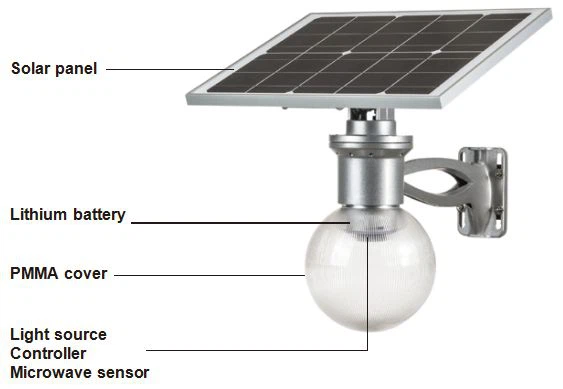

Unique Structure Design

Integrate the solar panel, led body, battery and controller into whole system. Easy to transport, install and maintain.

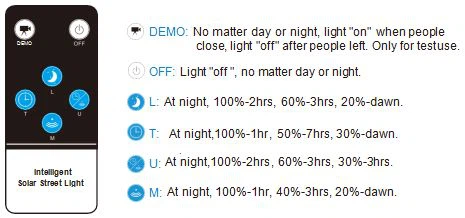

Remote Control

WMDSL007012

WMDSL007008

Note

1、Default is L mode, can choose best mode according to different sunshine condition;

2、Once a certain mode was set successfully, it will be reserved until you change other modes with remote control.



Light Distribution

Luminous intensity distribution curves



Dimension

WMDSL007012

WMDSL007008



Package

Two sets in carton box

Color box packaged, anti-shock packaging material, with bubble bags and foam, ensure transport safety.

Type	Box size(L*W*H)	Net Weight	Gross Weight	Volume Weight	20GP	40GP
WMDSL007012	575*575*250mm	14KG	15KG	21KG	640sets	1200sets
WMDSL007008	490*385*300mm	10.5KG	11KG	14KG	950sets	1800sets



Application: pathway、Village road、School、Park、Villa、Hotel、Temple、Resort



Welcome to our product: the 12w Integrated Solar LED Street Light. Our company is proud to offer a product that will not just benefit our clients, but also contribute to the preservation of our planet.



Our Integrated Solar LED Street Light is a revolutionary product that is designed to offer maximum efficiency, reliability, and performance. Each component of the light is carefully selected to ensure that it meets our quality standards, and to guarantee that it provides maximum benefits to our clients.



Firstly, let us start with what an integrated solar LED street light is. It is a combination of solar panel, battery, controller and high efficiency LED lamp, a simple yet high-quality lighting system that is powered by the sun. The solar panels convert sunlight into electricity during the day, which is stored in the batteries. The batteries then power the LEDs during the night, providing a more efficient and cost-effective lighting solution compared to traditional street lights.



The 12w Integrated Solar LED Street Light is a perfect solution for outdoor lighting in areas without a conventional power supply. It is ideal for street lighting, pathway lighting, parking lot lighting, park lighting, and other outdoor lighting applications. The light is equipped with a high-quality solar panel, high-capacity lithium battery, and a powerful LED lamp, which work together to ensure a long-lasting and efficient lighting solution.



Let’s take a closer look at our product’s features:



1. High-quality materials: Each component of the 12w Integrated Solar LED Street Light is made from high-quality materials to ensure durability and longevity. The solar panel is made of high-quality tempered glass and is designed to provide maximum efficiency in converting sunlight into electricity. The battery is a high-capacity lithium-ion battery that is designed to be long-lasting and reliable. And the LED lamp is made from high-quality materials and is designed to provide bright and efficient lighting.



2. Automatic power on and off: The integrated solar LED street light is equipped with a smart controller that automatically turns the light on and off based on the amount of sunlight available. This means that the light will turn on at dusk and turn off at dawn, saving energy and extending the life of the battery.



3. Easy installation: The 12w Integrated Solar LED Street Light is easy to install and requires no wiring or connections to an external power source. It can be mounted on a pole or wall, making it ideal for a wide range of outdoor lighting applications.



4. Energy-saving: Our integrated solar LED street light is designed to be energy-efficient and cost-effective. By using renewable energy, it reduces the carbon footprint and overall environmental impact. It also reduces electricity bills because it doesn’t require power from the grid.



5. Intelligent control system: Our product is equipped with an intelligent control system that monitors the battery charge level, temperature, and other parameters to optimize the performance and safety of the light.



6. Long lifespan: The lifespan of the 12w Integrated Solar LED Street Light is up to 10 years, which means that it can provide reliable and efficient lighting for a long time.



In conclusion, our 12w Integrated Solar LED Street Light is an innovative, energy-efficient, and sustainable lighting solution for outdoor applications. It provides a reliable and efficient lighting solution, reduces energy bills, and contributes to the preservation of the environment. We are confident that our product will meet the needs of our clients and exceed their expectations. Contact us today to learn more about our product and to place an order!
