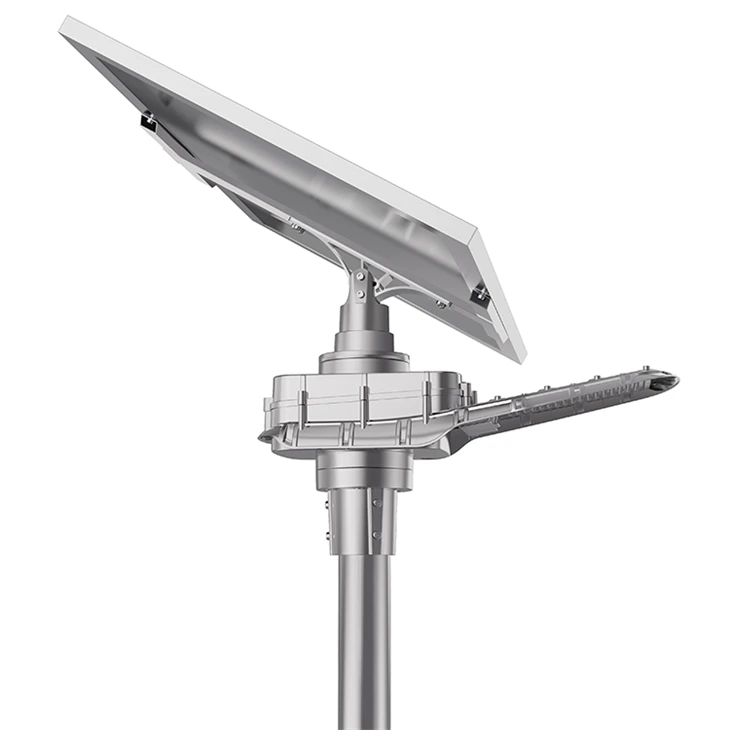

60w led solar street lights outdoor

Solar Sailing Light

LiFePO4 Battery 640WH

140 lamp beads with high efficiency

MPPT smart control system

100% Brightness the whole night available



Core Technologies

MPPT Technology

MPPT is an advanced charge mode whose full name is Maximum Power Point Tracking function which can increase the energy utilization rate by 15% to 20% than the PWM controller.

Multi-Peak MPPT

Road Smart new patent solar controller adopts multi-peak MPPT technology, which can timely track the maximum power point and improve the conversion efficiency of solar panels.

IPC 5.0 Technology

Through 10years’ experience, Road Smart upgraded highly precise 5.0 version IPC technology (intelligent power control 5.0). It will intelligently detect recent weather conditions, reasonably plan the discharge power to achieve more rainy days

Dual Low-power Consumption

4pins plug technology to enables transportation power consumption less than 0.05mA, and circuit protection technology to enables the sleep power consumption in long-term t ransportation of storage will be at uA level, realizing worry-free storage for two years.

ICD Technology (Intelligent Charge and Discharge)

Using Grade A LiFePO4 battery with excellent safety performance. Road Smart's unique current equalization and dual protection (software and hardware) enable the battery’s capacity remains at 90% after 2000 cycles. Lifetime is 4 times longer than that of lead-acid batteries.

High Efficiency LED Chips

Using high efficiency 140pcs of 5050 LED chips, optimized brightness, single lumen value>190lm/w, with the aluminum chip base makes excellent heat dissipation



Technical Parameter

Type		WMDSL006060	WMDSL006080	WMDSL006100
Lamp head	Light output	60W	80W	100W
	LED chip	140pcs	140pcs	140pcs
	Luminous flux	9500lm-10000lm	11900lm-12600lm	13600lm-14400lm
	Beam angle	155°*55°
	Lifespan	50000hrs
	IP Rating	IP65
	Working temperature	-20°C~60°C（Charge above 0°C）
	Color temperature	3000-7500K
	CRI	Ra≥70
SOLAR PANEL	Power	100W/18V	120W/18V	150W/18V
	Voltage	18V
	Solar cell efficiency	19%-22%
	Material	Monocrystalline silicon
BATTERY	Capacity	384WH	512WH	640WH
	Lighting time(full charged)	5-7 rainy days
	Lithium battery	LiFePO4
INSTALLATION	Top diameter of pole	76 mm
	Mounting height	8-10M
	Installation spacing	30-40M



Light Distribution

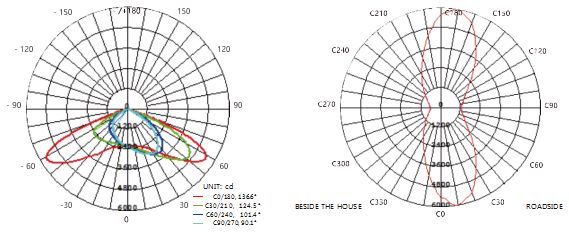

Luminous intensity distribution curves

AVERAGE BEAM ANGLE (50 ∮):113.1 DEG                 MAXIMUM POSITION VALUE Y=58.0°



Product Dimension

Lamp Holder Size



Solar Panels



Product Installation

Solar panel   lamp holder  Solar panel adapter  Solar panel bracket   Sleeve   Bracket



Integrated Design Concept

1. Fix Solar panel adapter on the panel.

2. Fix the panel on solar panel bracket.

3. Connect the locked bracket to light body.

4. Connect the locked panel to light body.

5. Fix the lamp body and the sleeve with 6 screws.

6. Fix the lamp body and the lamp pole with 6 screws.



Packing

Type		Qty/ctn	Box Size(L*W*H)	Gross Weight
WMDSL006060	Lamp body	1pc/ctn	720*310*280mm	12.10
	100W Panel	2pcs/ctn	1090*755*115mm	14.31
WMDSL006080	Lamp body	1pc/ctn	720*310*280mm	11.36
	120W Panel	2pcs/ctn	1090*755*115mm	12.62
WMDSL006100	Lamp body	1pc/ctn	720*310*280mm	11.36
	150W Panel	1pc/ctn	1410*755*65mm	12.62

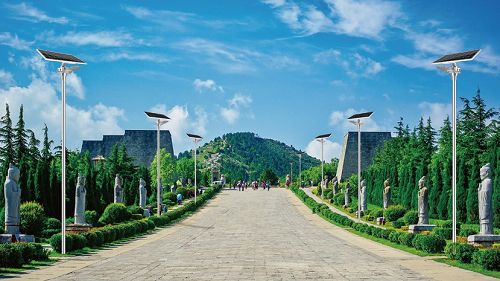

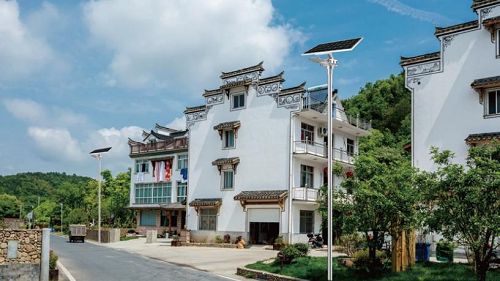

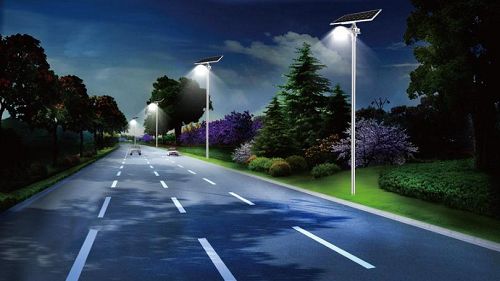

Application



Introduction:

Thank you for your interest in our 60w Led Solar Street Lights Outdoor! As a leading manufacturer in China, we take pride in producing high-quality products that are not only functional, but also energy-efficient and environmentally friendly. Our 60w Led Solar Street Lights Outdoor is no exception.



Features:

Our 60w Led Solar Street Lights Outdoor packs a number of innovative features that make it stand out from other similar products on the market.



Firstly, this solar street light is equipped with 60 high-quality LED lights that emit a bright and long-lasting light. The lights are powered by a 24V 10Ah lithium-ion battery, which makes sure that the lights maintain its brightness throughout the night.



Secondly, our street lights are designed to work for up to 10 hours per night, with a charging time of 6 to 8 hours in full sunlight. This means that our street lights can easily provide reliable illumination throughout the night, even in areas where grid electricity is not available.



Thirdly, our 60w Led Solar Street Lights Outdoor come with a modular design that makes it easy to install. This modular design also makes it easy to replace any broken or malfunctioning parts, ensuring that the lights remain operational for a long time.



Lastly, our street lights are designed to be completely waterproof and weather-resistant, which means that they can withstand harsh weather conditions such as rain, snow, and extreme temperatures.



Advantages:

Our 60w Led Solar Street Lights Outdoor boasts several advantages over other street lights, making it a compelling product for retailers and merchants. Here are some of the advantages:



1. Energy-efficient: With solar panels that convert sunlight into electricity, our street lights are completely powered by renewable energy, reducing dependence on traditional grid-based sources of electricity.



2. Cost-effective: Since our street lights are powered by free solar energy, there are no recurring electricity costs, which can significantly reduce operating costs for businesses and communities.



3. Environmentally friendly: Our street lights do not emit greenhouse gases or other pollutants, making them a sustainable and environmentally friendly source of lighting.



4. Long-lasting: With high-quality batteries and LED lights, our street lights are designed to last for a long time, requiring minimal maintenance over their lifetime.



5. Versatile: Our street lights are suitable for a wide range of applications, including street lighting, parking lots, and public areas such as parks and playgrounds.



Conclusion:

In summary, our 60w Led Solar Street Lights Outdoor is a high-quality product that offers a range of innovative features and advantages. With its energy-efficient and environmentally friendly design, our street lights are a great investment for homeowners, communities, businesses, and government organizations looking to reduce electricity costs and create a more sustainable future. We welcome you to try our product and see for yourself the benefits that our street lights can bring to your community.
