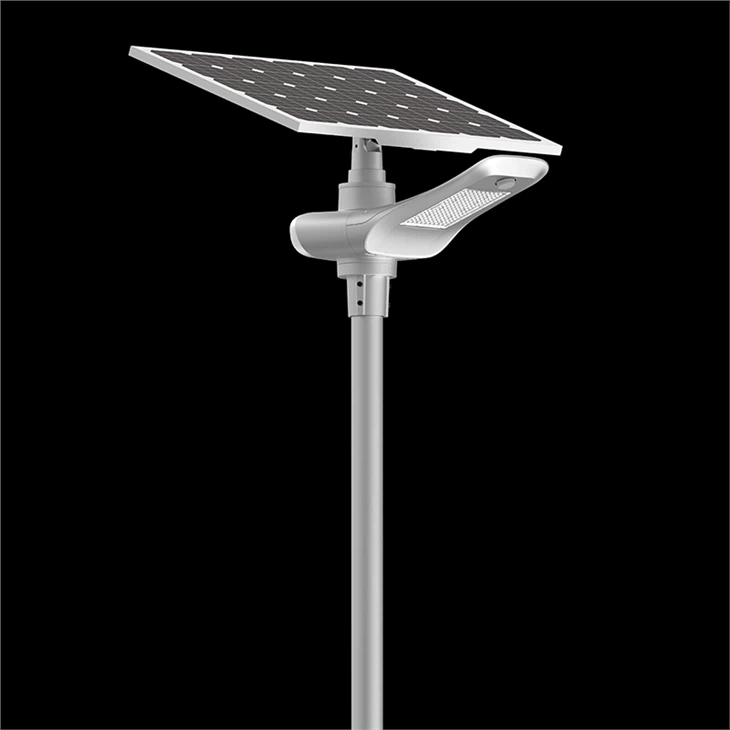

Outdoor Solar Street Lamps



Outdoor Solar Street Lamps

Come from nature, Light up the future

30W-50W

5800lm-9300lm

Brighter, longer and more uniform



Core Technologies

Unique Integration Design

Easy to transport, install and maintain



Rotating Solar Panel

Solar Panel can be adjusted in vertical and horizontal direction



Charge and Discharge Management

Protect battery by software and hardware, supporting battery charge at 0v



Battery Program Updated

Embedded single string control technology. More stable and longer lifespan



Light Efficiency Management

Patent led chip with high efficiency, the whole system lighting efficiency has been improved to 180lm/w



Patent Bat-wing Lens

Lighting area much wider, the maximum of using the lighting all light the road,increase the installation distance to 50m



MPPT Technology

The conversion efficiency of solar system can be fully increased, effictively shorten the 20% charge time



Technical Parameter

	Type	WMDSL004030	WMDSL004040	WMDSL004050
Panel	Power	100W/18V	120W/18V	150W/18V
	Material	Mono crystalline silicon	Mono crystalline silicon	Mono crystalline silicon
	Solar cell efficiency	19-20%	19-20%	19-20%
Lithium battery	Capacity	380WH	460WH	610WH
	Charge cycle times	2000 times	2000 times	2000 times
Lamp head	Luminous flux	5800-6100lm	7500-7700lm	9100-9300lm
	Light output	30W	40W	50W
	LED qty	150pcs	150pcs	150pcs
	LED chip	Bridgelux
	Color temperature	3000-6000K
	CRI	≥70Ra
	Material of lamp head	Aluminum alloy
	Elevation angle	17° (attention to Dialux use)
	Lifespan	50000hrs
System	Light control voltage	5v
	Light distribution	Batwing lens with polarized light
	Beam angle	X-axis: 158° Y-axis: 62°
	Lighting time(full charged)	2-3 rainy days
	Operation temperature	-20℃~60℃
Installation	Top diameter of pole	76mm
	Mounting height	7-8m	7-8m	8-10m
	Installation spacing	20-40m



Unique Structure Design

Integrate the solar panel, led body, battery and controller into whole system. Easy to transport, install and maintain

Solar panel looks like an umbrella to protect battery from high temperature and extend the lifetime. Perfectly solve heat dissipation



Solar panel can be adjustable manually in vertical and horizontal direction, ensure the maximum efficiency of solar energy



Dimension

Lamp holder



Solar Panels

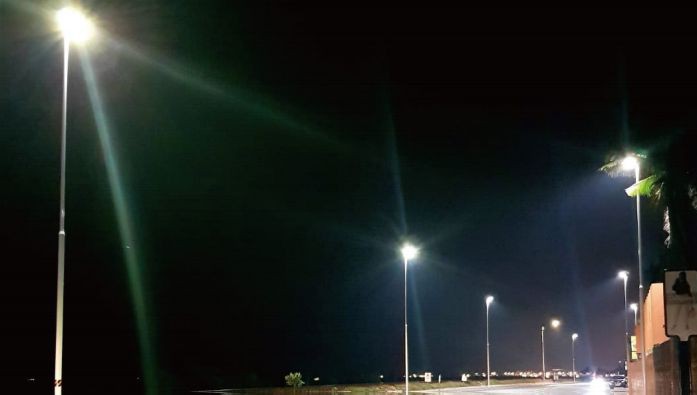

Application
