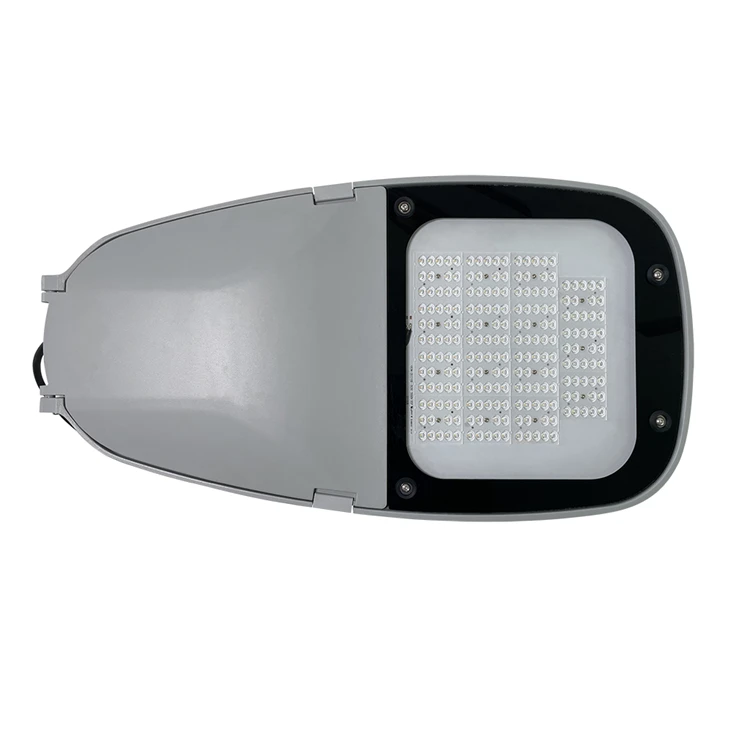

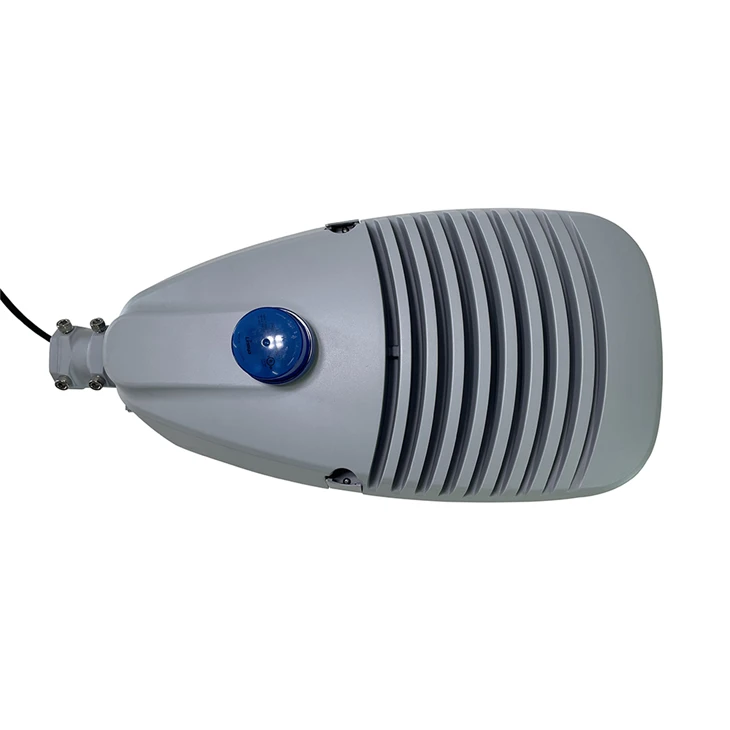

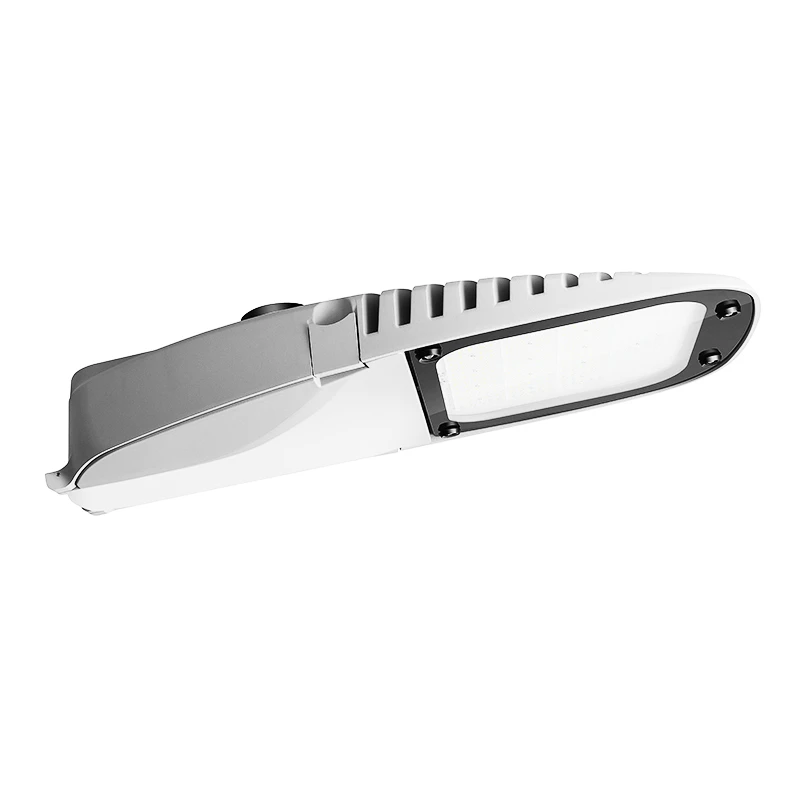

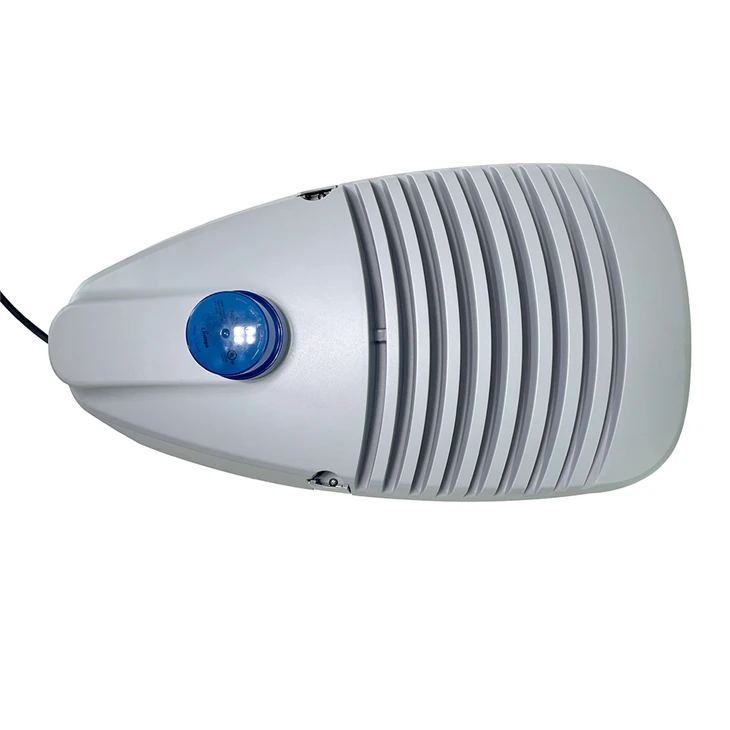

150W Pole Rural Roadway Street Lighting

Made up of high thermal conductivity plastic material with heat dissipation performance and very cost-effective price Cost-effective, Energy-saving and Versatile Street Light is a robust and compact luminaire, designed with a focus on ease of installation and maintenance, enabling customers to extend its lifetime with future upgrades.
Thermal conductive plastics material, excellent heat dissipation, durable structure design.
Modular lens, compatible with 3030, 3535, 5050 LED chips to meet different lumen output and project needs.

  • Product Introduction

3



150W pole rural Roadway Street Lighting
Made up of high thermal conductivity plastic material with heat dissipation performance and very cost-effective price
Cost-effective, Energy-saving and Versatile Street Light is a robust and compact luminaire, designed with a focus on ease of installation and maintenance, enabling customers to extend its lifetime with future upgrades.
Thermal conductive plastics material, excellent heat dissipation, durable structure design.
Modular lens, compatible with 3030, 3535, 5050 LED chips to meet different lumen output and project needs.



Integrated microwave sensor and daylight sensor are optional for more energy saving.
Side Entry Installment to meet 60mm & 42mm spigot.
Applications: is optimized for customers requiring a LED solution for local, residential, rural roadways. Optimizes application efficiency, and 'shapes' the light to put the light where it is needed.
Straight rod installation, elevation Angle -5°~+5°, integrated wall adjustment, elevation Angle -25°~+115°, external wall adjustment, elevation Angle -35°~+115°
Integrated die-cast aluminum cooling technology, efficient cooling performance
All metal construction, no tool maintenance power supply
Whole lamp IP66 protection, high waterproof and dustproof grade
NEMA Accessories: Single light controller, wireless smart city system
NEMA Base: 3PIN/5PIN/7PIN optional.


NEMA socket


Toughened glass IK08 anti-impact rating


None Start the power box



Characteristics

AC input voltage

100-277V,50/60Hz

Factor of power

>0.95

THD %

< 15%

Whole light effect

130lm/W、150lm/W、170lm/W

Lamp color temperature (CCT)

4000K、5000K、6500K

Luminance Indication (CRI)

>70

External lightning protection level

10kV standard (20kV optional)

Control switch

Time control, light control

Intelligent lighting communication signal

PLC、NB、LORA

Height of installation

10m To 15m

Distance between lamps

40m To 60m

Operating temperature

-40C~+50°C

Storage temperature

-40C~+50°C

LED Brand

Philips, Tiandian

LED light fading

L70 > 100000hrs

Area of projection

0.229m3

IP waterproof class

IP66

IK Anti-impact rating

IK08

Class of luminaires

Class I

Shell spray color

7040 Warm white

Light pole pipe diameter

Φ25-Φ32 / Φ42-Φ48 / Φ52-Φ62

Size of appearance (mm)

648×354×116

Size of package (mm)

700×405×167 (1pc/CTN)

Main materials

ADC12 die cast aluminum + toughened glass

Standard of certification

CQC、UL8800、UL1598、DLC、CE

Quality assurance

5 years (7 years optional)



Size


Light Distribution Curve

1

Model

Power(w)

Luminaire light flux (lm)

LED model

LED number

Height of installation

Maximum distance between

The net weight

Gross weight

PCS/CTN

WMDSL001D150

150

19500

3030

168pcs

8~12m

<54m

8.5kg

9.4kg

1pcs



Installation Diagram

2

Bid bonus item, patent independent arm design, very firm


The replacement of LED light source and drive power should be operated by professionals or our staff




Warning - High pressure hazard, installation, must be professional installation
The light source, power supply, fittings, etc. contained in this lamp can only be replaced by the manufacturer



Optional Accessories


20KV surge arrester


Safety wire rope


Air convection valve

Optical switch-2

Light controlled switch


Zhaga baseZhaga





Why choose us?

  • Our products are rigorously tested to ensure they meet all relevant safety and performance standards.
  • We encourage our employees to give full play to their creativity and potential by striving to build the best team in the 150W Pole Rural Roadway Street Lighting industry.
  • Our products are manufactured to the highest quality standards and undergo rigorous testing before being shipped.
  • 'Passion, Honesty, Sound service, Keen cooperation and Development' are our goals.
  • We offer a wide range of customizable products that can be tailored to our clients' specifications.
  • We have laid a solid foundation for the long-term and sustainable development of our company, and provided a comprehensive guarantee for the 150W Pole Rural Roadway Street Lighting production trusted by our customers.
  • We offer exceptional value for money, ensuring our products deliver the best possible return on investment.
  • Based on a deep understanding of the development trend of the industry, the company will give full play to its core advantages and write a new chapter with peers!
  • We offer flexible payment and shipping options to make purchasing our products as easy as possible.
  • We always adhere to the manufacturing and service principles that take the interests of consumers as our responsibility, and emphasize management, technology, and development.

Introduction

150W Pole Rural Roadway Street Lighting is a product that is designed to provide high-quality and reliable street lighting for rural and remote areas. This product is specially made to cater for the needs of merchants in countries outside of China who require lighting solutions that can withstand extreme weather conditions, maintain high energy efficiency, and operate for a prolonged period of time.



This product is manufactured by a reputable Chinese company that guarantees superior quality and durability. In this article, we will outline key features and benefits that make 150W Pole Rural Roadway Street Lighting an excellent lighting solution for rural areas.



Features

1. High-Quality Materials

This street lighting product is made using high-quality materials that are designed to withstand extreme weather conditions. It is primarily made using high-strength aluminum alloy, making it resistant to rust and corrosion. Additionally, the lens is made using high-quality tempered glass that is shatterproof and can withstand strong winds and other environmental elements.



2. Energy Efficiency

150W Pole Rural Roadway Street Lighting is designed to have a high luminous efficacy. This means that it produces more light with less power. This feature is particularly important in rural areas where power supply is limited or unreliable. The lighting system consumes minimal power, reducing energy costs and ultimately contributing to environmental sustainability.



3. Remote Monitoring

This product is fitted with real-time monitoring technology that allows remote monitoring of the lighting system. The system can be monitored and controlled remotely, allowing quick identification and resolution of any problems that may occur.



4. Motion Sensor Technology

This motion-sensor technology is designed to detect motion within the area being lit by the street lighting system. This is important in rural areas where people or animals may be moving around at night. The motion sensor feature allows the light to turn on when movement is detected, and to switch off when there is no movement, saving energy and increasing the lifespan of the system.



5. Dusk-to-Dawn Operation

150W Pole Rural Roadway Street Lighting is designed to operate from dusk to dawn. This means that it turns on automatically when the sun sets and turns off when the sun rises. It is an ideal feature for rural areas that require constant lighting, as it operates for a prolonged period without requiring human intervention.



Benefits

1. Improved Visibility

This lighting system enhances visibility in rural areas, making it easy for people to move around safely. It is particularly important in areas where there are no street lights at all, as it helps to reduce accidents and improves the security of an area.



2. Low Maintenance

150W Pole Rural Roadway Street Lighting is designed with low maintenance requirements. It is designed to operate for a prolonged period without requiring any maintenance, reducing costs and inconvenience.



3. Long Lifespan

The high-quality materials used in the manufacturing of the product, coupled with its low maintenance requirements, result in a long lifespan. This means that it can operate for a prolonged period with minimal maintenance.



4. Energy Efficient

This lighting system is energy efficient, reducing energy costs and contributing to environmental sustainability.



5. Remote Monitoring

The real-time monitoring feature allows quick identification and resolution of any problems, reducing downtime, and ultimately ensuring that the system operates as expected.



Conclusion

150W Pole Rural Roadway Street Lighting is an excellent lighting solution for rural areas that require high-quality, reliable, and energy-efficient lighting. With features such as high-quality materials, energy efficiency, remote monitoring, motion sensor technology, and dusk-to-dawn operation, this product is designed to cater for the unique lighting needs of rural areas.



This product is manufactured by a reputable Chinese company that guarantees superior quality and durability. It is an ideal solution for merchants in countries outside of China who require lighting solutions that can withstand extreme weather conditions, maintain high energy efficiency, and operate for a prolonged period of time.
