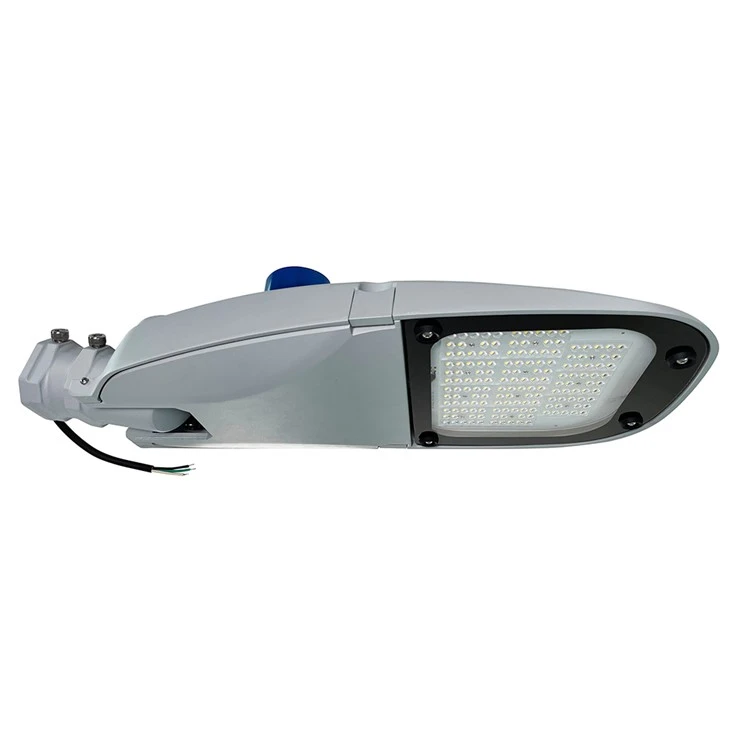

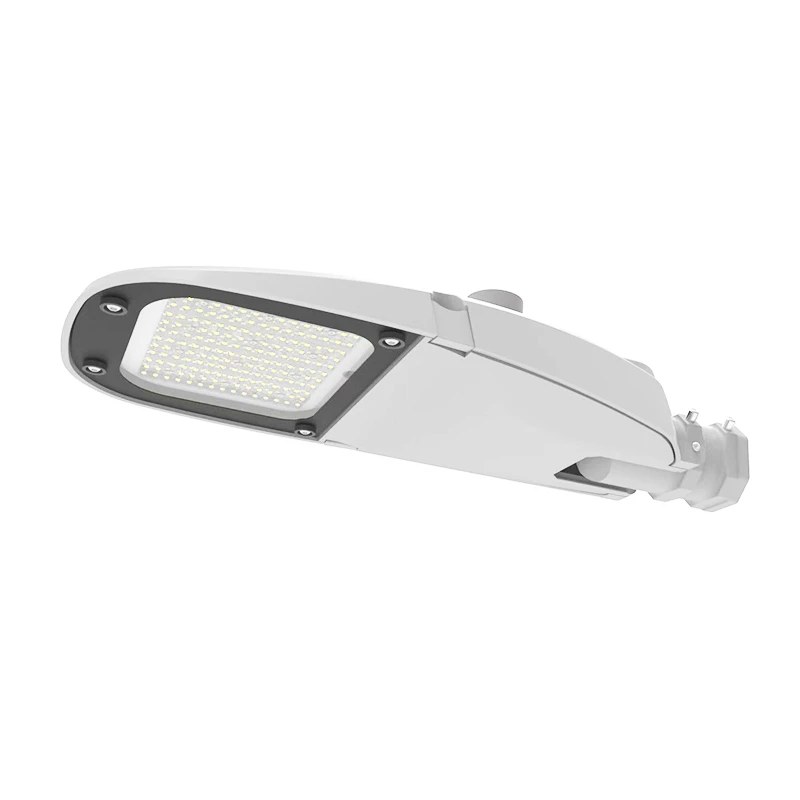

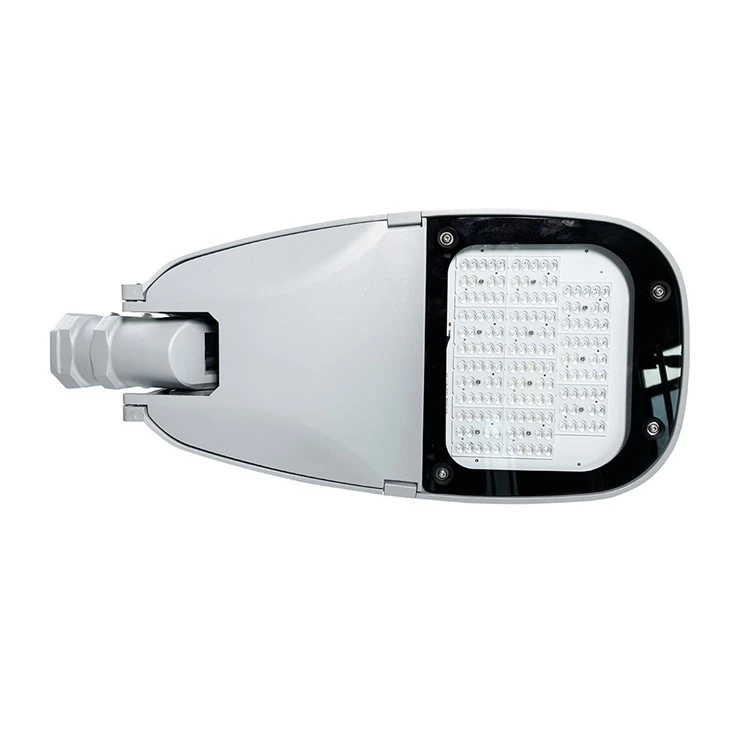

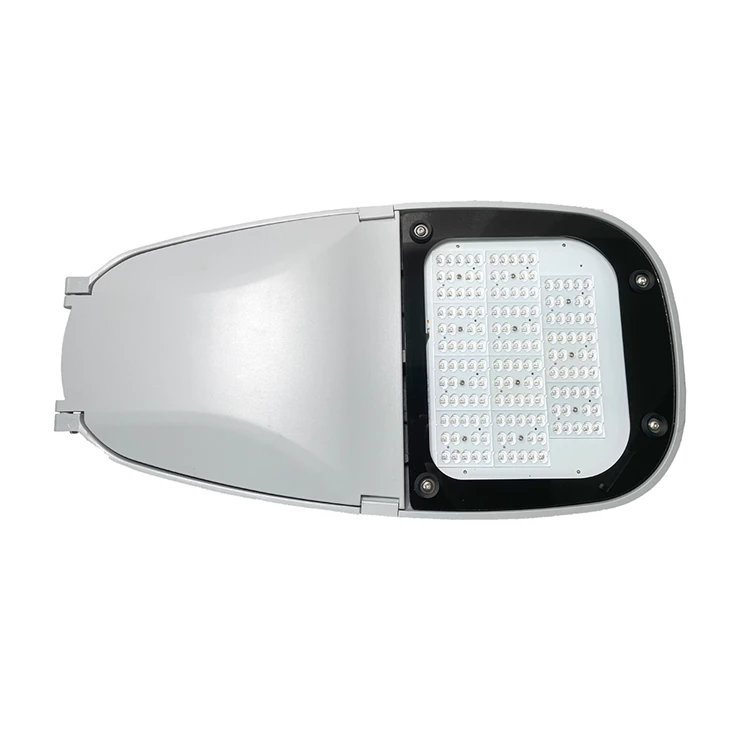

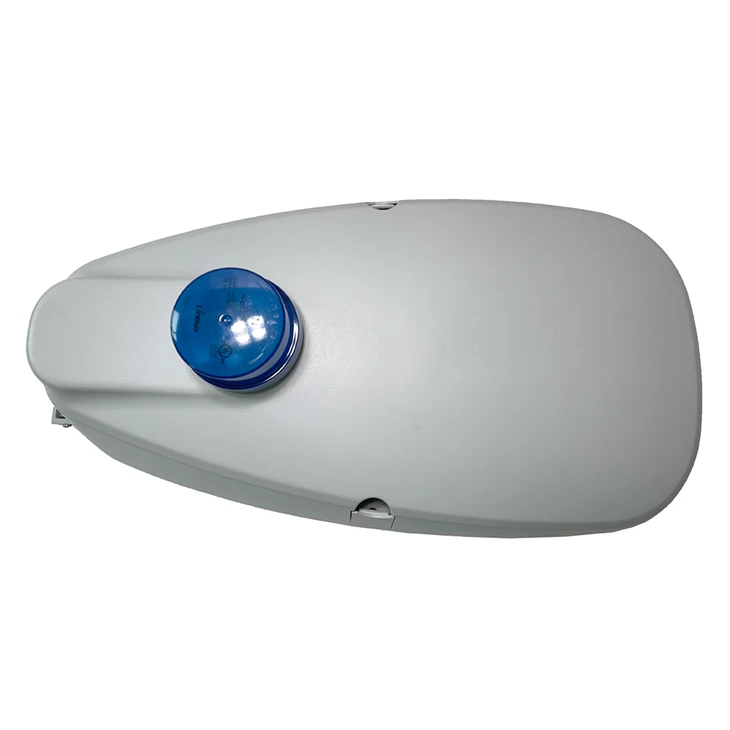

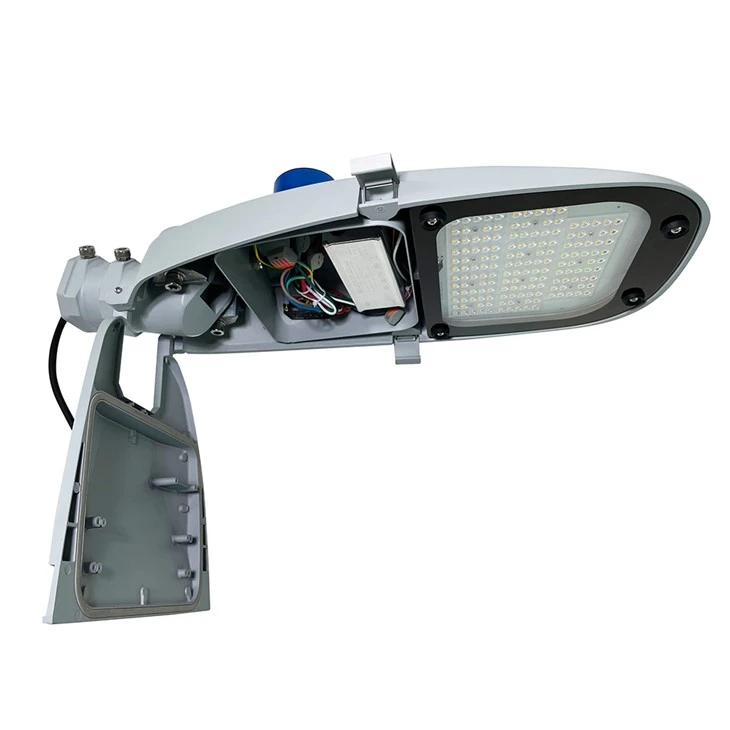

LED Street Light 150W

Independently developed and designed the metal bolt type high power LED light source. In order to improve the stability of the product, we use high-quality LED light-emitting chip, which is directly packaged on the top of the nut of the metal bolt. When the product is assembled, the LED metal bolt is directly tightened on the aluminum radiator, so as to effectively integrate the LED and radiator tightly.

  • Product Introduction

1002



Led Street Light 150W

LED light source

Independently developed and designed the metal bolt type high power LED light source. In order to improve the stability of the product, we use high-quality LED light-emitting chip, which is directly packaged on the top of the nut of the metal bolt. When the product is assembled, the LED metal bolt is directly tightened on the aluminum radiator, so as to effectively integrate the LED and radiator tightly. It changes the current situation of traditional high-power LED light source to conduct heat conduction with thermal silica gel, greatly improves the heat conduction efficiency between LED and aluminum radiator, and effectively ensures the service life of LED light source is more than 50,000 hours. At the same time, the use of high quality phosphor, so that the brightness of a single LED can reach 80 lumens or more; And have a variety of color temperature to choose from, can meet the needs of different occasions for different color temperature.

The modular design of the light source achieves the best match between the ground illuminance and power. By increasing or decreasing the number of light sources, it can meet the requirements of different road width and illuminance, so as to meet the lighting requirements of the city without wasting electric energy.



Characteristics

AC input voltage

100-277V,50/60Hz

Factor of power

>0.95

THD %

< 15%

Whole light effect

130lm/W、150lm/W、170lm/W

Lamp color temperature (CCT)

4000K、5000K、6500K

Luminance Indication (CRI)

>70

External lightning protection level

10kV standard (20kV optional)

Control switch

Time control, light control

Intelligent lighting communication signal

PLC、NB、LORA

Height of installation

6m To 12m

Distance between lamps

24m To 48m

Operating temperature

-40C~+50°C

Storage temperature

-40C~+50°C

LED Brand

Philips, Tiandian

LED light fading

L70 > 100000hrs

Area of projection

0.156m3

IP waterproof class

IP66

IK Anti-impact rating

IK08

Class of luminaires

Class I

Shell spray color

7040 Warm white

Light pole pipe diameter

Φ25-Φ32 / Φ42-Φ48 / Φ52-Φ62

Size of appearance (mm)

541×289×100

Size of package (mm)

585×345×268 (2pcs/CTN)

Main materials

ADC12 die cast aluminum + toughened glass

Standard of certification

CQC、UL8800、UL1598、DLC、CE

Quality assurance

5 years (7 years optional)



Size


Light Distribution Curve

1

Model

Power(w)

Luminaire light flux (lm)

LED model

LED number

Height of installation

Maximum distance between

The net weight

Gross weight

PCS/CTN

WMDSL001C150

150

19500

3030

168pcs

8~12m

< 48m

5.7kg

12.4kg

2pcs



Installation Diagram

2

Bid bonus item, patent independent arm design, very firm


The replacement of LED light source and drive power should be operated by professionals or our staff




Warning - High pressure hazard, installation, must be professional installation
The light source, power supply, fittings, etc. contained in this lamp can only be replaced by the manufacturer



Optional Accessories


20KV surge arrester


Safety wire rope


Air convection valve

Optical switch-2

Light controlled switch


Zhaga baseZhaga





Why choose us?

  • We provide ongoing support and assistance to our clients throughout the entire customer journey.
  • To ensure quality, our Led Street Light 150W is rigorously tested and matched before it is packaged and shipped to customers.
  • We offer flexible payment and shipping options to make purchasing our products as easy as possible.
  • The staff of each position in the company have rich experience and professional knowledge, so they can provide efficient and reliable services for customers from selection to procurement.
  • We are dedicated to building long-term relationships with our clients and provide ongoing support.
  • According to the requirements of the market, we have established a set of scientific and rigorous quality management system.
  • We use only the highest quality materials in our manufacturing processes.
  • Our work philosophy is, honest and pragmatic, pioneering and innovative, courageous and responsible, results-oriented.
  • Our manufacturing processes are streamlined, ensuring fast and efficient delivery of our products.
  • We hope that there will be further progress and a new future together with our partners since we have leading notion, advanced technology and innovative products.

Introduction:

As a manufacturer of high-quality LED street lights, we understand the importance of providing a product that not only meets the needs of our customers but also exceeds their expectations. Our LED Street Light 150W is designed to be a reliable, energy-efficient lighting solution for urban and rural areas.



Features:

Our LED street light 150W is built with the latest technology, ensuring high performance and durability. The following are some of the key features of our product:



1. Energy efficiency - Our LED street lights consume up to 70% less energy compared to traditional street lights, making them an eco-friendly option that can help save energy costs.



2. Long lifespan - Our lights have a lifespan of up to 50,000 hours, making them a long-term investment that can save on maintenance costs.



3. High-quality construction - Our LED street lights are made with high-quality materials, ensuring they can withstand harsh environments, such as extreme heat or cold, rain, and humidity.



4. Brightness - With 150W of power, our LED street lights provide superior brightness when compared to traditional lighting solutions.



Benefits:

The benefits of using our LED street light 150W for your outdoor lighting needs are:



1. Safety - Our LED street lights provide better visibility, reducing the risk of accidents and crime in public areas.



2. Cost-effective - Our energy-efficient lighting solution can help you save on energy costs and reduce maintenance expenses.



3. Environmental-friendly - Our LED street lights are eco-friendly, reducing your carbon footprint.



4. Reliable - Our high-quality construction and extended lifespan make our LED street lights a dependable option for long-term use.



5. Versatile - Our LED street lights can be used in various outdoor applications, including street lighting, parking lots, and other commercial areas.



Conclusion:

In conclusion, our LED street light 150W provides a reliable, eco-friendly, cost-effective, and versatile lighting solution for your outdoor lighting needs. With its high-quality construction, energy efficiency, and long lifespan, it is an investment that will pay for itself over time by reducing maintenance costs and saving on energy bills. Choose our LED street light 150W and enjoy the benefits of a superior lighting solution.
